- mpn49205
- brandname: Chicago-Latrobe
- manufacturername: Chicago-Latrobe

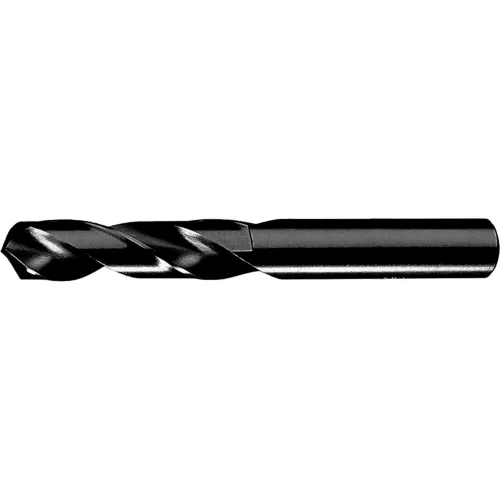

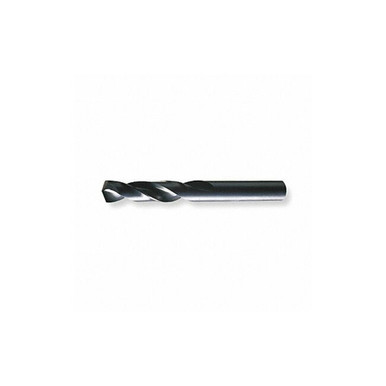

Chicago-Latrobe 49205 159 Heavy Duty Screw Machine Drill, 5/64 in Drill - Fraction, 0.0781 in Drill - Decimal Inch, HSS, Black Steam Oxide (Each)
- Brand: Chicago Latrobe
- PartNumber: 49205
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Brand | Chicago-Latrobe |
| Color | Black Oxide |
| Current Stock | 97 |
| Cutting Depth | 3XD |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.0781 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.078125, 0.0781" |
| Diameter (Fraction) | 5/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black Oxide |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | 5/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0005 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0162 in |
| Drill Size - Decimal In. | 0.0781 in |
| Drill Size - Fraction | 5/64 in |
| Drill Size System | Fractional |
| Drill Style | Screw Machine Drill |
| Finish | Black Steam Oxide |
| Flute Length | 0.6875", 11/16 in |
| Flute Length (Metric) | 17.46mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 11/16 in |
| Measurement System | Imperial |
| Mpn | 49205 |
| Number of Flutes | 2 |
| Overall Length | 1.6875", 1 11/16 in, 1-. |
| Overall Length (Metric) | 42.86mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split point, Split |
| Series | 159 |
| Shank Configuration | Straight |
| Shank Dia. | 5/64 in |
| Shank Length | 1 in, 1.0000" |
| Shank Length (Metric) | 25.40mm |
| Shank Size | 5/64 in Dia x 1 in L, 0. |
| Shank Size (Metric) | 1.98mm |
| Shank Type | Straight |
| Sizes Included | 5/64" |
| SKU | ZO-G0261457 |
| Style | 159 |
| SubCategory | Machining |
| Surface Condition | Steam Oxide |
| Tool Size | 5/64" |
| Type | Heavy Duty |
| UPC | 662355492055 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6130275 | 1.24 | 29 | 12 | | Chicago-Latrobe | | 1.24 @ 29 |
 | Global Industrial | WBB2545835 | 1.36 | 12 | 12 | | Chicago-Latrobe | | 1.36 @ 12 |
 | Zoro | G0261457 | 1.59 | 1 | 162 | | Chicago-Latrobe | 0.1 | 1.59 @ 12 |
 | Megadepot | 49205 | 1.66 | 1 | 12 | | Chicago-Latrobe | | 1.66 @ 12 |
 | heavydutydepot.com | 49205 | 1.66 | 61 | 12 | | Chicago-Latrobe | | 1.66 @ 61 |
 | sustainablesupply.com | C1464322 | 1.92 | 1 | 12 | | Chicago-Latrobe | 0.01 | 1.92 @ 12 |
 | Raptor Supplies | AB2HDR | 2.055924 | 1 | 12 | | CHICAGO-LATROBE | | 2.055924 @ 12 |
 | National Supply Network | 81382053 | 2.7725 | 12 | 12 | | Chicago-Latrobe | | 2.7725 @ 12 |
 | simsupply.com | ZO-G0261457 | 7.92 | 1 | 97 | | Chicago-Latrobe | | 7.92 @ 12 |
