Cle-line C20460

mpnC20460
brandname: Cle-Line
manufacturername: Cle-Line

Corner Radius End Mill, 7/16"L

Brand: Cle-line
PartNumber: C20460
Model: C20460
Manufacturer: CLE-LINE
Label: CLE-LINE

Attributes

Key	Value
Applicable Materials	Low Carbon, Stainless S.
Coolant Fed	Non-Coolant Through
Cutting Depth	9 in
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.5000
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.5000"
Diameter (Fraction)	1/2"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Individual
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Notched Point
Drill Bit Size	1/2 in
Drill Construction	General Purpose
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Length Class	Extra Long
Drill Point Length	0.1502 in
Drill Size - Decimal In.	0.5 in
Drill Size - Fraction	1/2 in
Drill Size System	Fractional
Drill Style	Extra Length Drill
Finish	Black Oxide/Steam Oxide
Finish - Machining	Black Oxide
Flute Length	9 in, 9.0000"
Flute Length (Metric)	228.60mm
Flute Type	Spiral
Grade	General Purpose
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	21 Degrees to 34 Degre.

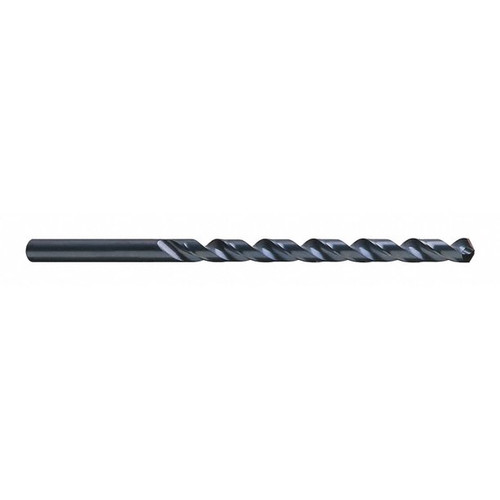

Item	Extra Long Drill Bit
Material	HSS
Material - Machining	High Speed Steel
Material Grade - Machin.	General Purpose
Maximum Drilling Depth	2 in
Measurement System	Fractional Inch
Number of Flutes	2
Overall Length	12 in, 12.0000"
Overall Length (Metric)	304.80mm
Point Angle	118 deg, 118?
Point Style	Notched
Point Type	Notched
Primary Material Applic.	Cast Iron, Steel
Primary Material Applic.	K, P
Series	1806
Shank Configuration	Straight
Shank Dia.	1/2 in
Shank Length	3.0000", 3 in
Shank Length (Metric)	76.20mm
Shank Size	0.5000", 1/2 in
Shank Size (Metric)	12.70mm
Shank Type	Straight
Shank Type - Machining	Straight
Size	1/2"
SKU	C20460
Spiral Direction	Right Hand
Standards	ASME
Style	1806
Surface Condition	Steam Oxide
Through Coolant (Yes/No)	No
Tool Size	1/2"
Type	General Purpose Heavy D.
UPC	6.97E+11

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Megadepot	C20460	30.87	1	In Stock	Cle-Line		30.87 @ 1
Global Industrial	WBB2543791	30.95	1	In Stock	Cle-Line		30.95 @ 1
usmegastore.com	C20460	31.05	1	In Stock	Cle-Line		31.05 @ 1
heavydutydepot.com	C20460	31.05	4	In Stock	Cle-Line		31.05 @ 4
MRO Supply	6123823	35.32	2	In Stock	Cle-Line		35.32 @ 2
Zoro	G7370161	37.89	1	47	Cle-Line	0.5	37.89 @ 1
grainger.ca	WWG53FP59	47.38061568	1	In Stock	CLE-LINE	0.5	47.38061568 @ 1
imsbolt.com	C20460	58.2	1	In Stock	CLE-LINE		58.2 @ 1
