- mpnC23860
- brandname: Cle-Line
- manufacturername: Cle-Line

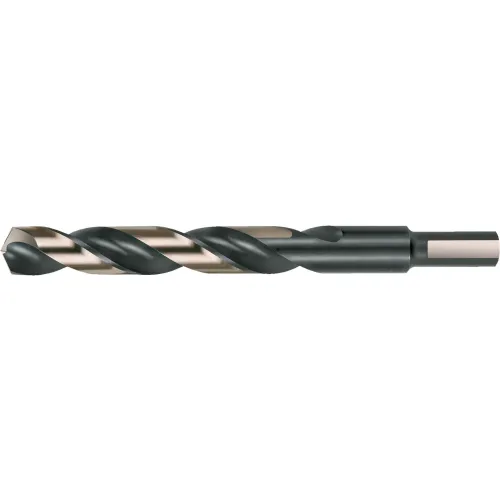

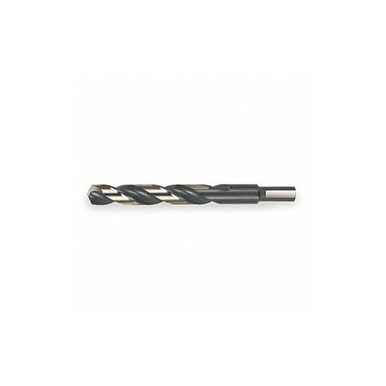

Mechanics Drill, 3/8 Shank, 27/64, HSS
- Brand: Cle-line
- PartNumber: C23860
- PackageQuantity: 1
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Low Carbon/Stainless St. |
| Application | For Alloy, Stainless An. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 97 |
| Cutting Depth | 2-7/8 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.4219 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.4219" |
| Diameter (Fraction) | 27/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black/Gold |
| Drill Bit Grouping | Drill Bit, Individual |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees, 135 Degre. |
| Drill Bit Point Type | Split Point |
| Drill Bit Size | 27/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Size - Decimal In. | 0.4219 in |
| Drill Size - Fraction | 27/64 in |
| Drill Size System | Fractional |
| Drill Style | Mechanics Length Drill |
| Finish | Black/Gold |
| Finish - Machining | Black Oxide |
| Flute Length | 2-7/8 in, 2 7/8 in, 2.8. |
| Flute Length (Metric) | 73.02mm |
| Flute Type | Spiral |
| Grade | Heavy Duty |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1876 |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | Heavy Duty |
| Maximum Drilling Depth | 1 11/16 in |
| Measurement System | Fractional Inch, Imperi. |
| Mpn | C23860 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 4-7/16 in, 4.4375", 4 7. |
| Overall Length (Metric) | 112.71mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1876 |
| Shank Configuration | Reduced |
| Shank Dia. | 1/2 in |
| Shank End Feature | Reduced |
| Shank End Feature Length | 1.0000" |
| Shank Length | 1 in, 1.5625" |
| Shank Length (Metric) | 39.69mm |
| Shank Size | 3/8 in, 0.3750" |
| Shank Size (Metric) | 9.52mm |
| Shank Type | Round with Flats, Reduc. |
| Shank Type - Machining | Straight with Three Fla. |
| Silver & Deming Drill | Yes |
| SKU | ZO-G3111762 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 1876 |
| SubCategory | Machining |
| Surface Condition | Black & Gold |
| Tool Size | 27/64" |
| Type | Heavy Duty |
| UPC | 697334238607 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Zoro | G3111762 | 6.39 | 1 | 98 | | Cle-Line | 0.12 | 6.39 @ 6 |
 | Global Industrial | WBB2543949 | 6.8 | 6 | 6 | | Cle-Line | | 6.8 @ 6 |
 | MRO Supply | 6125109 | 8.0 | 7 | 6 | | Cle-Line | | 8.0 @ 7 |
 | Megadepot | C23860 | 8.32 | 1 | 6 | | Cle-Line | | 8.32 @ 6 |
 | usmegastore.com | C23860 | 8.32 | 1 | 6 | | Cle-Line | | 8.32 @ 6 |
 | heavydutydepot.com | C23860 | 8.93 | 12 | 6 | | Cle-Line | | 8.93 @ 12 |
 | sustainablesupply.com | C1465322 | 11.63 | 1 | 6 | | Cle-Line | 0.12 | 11.63 @ 6 |
| grainger.ca | GNFC23860 | 12.1209602 | 1 | 6 | | CLE-LINE | 0.119 | 12.1209602 @ 6 |
 | simsupply.com | ZO-G3111762 | 13.65 | 1 | 97 | | Cle-Line | | 13.65 @ 6 |
| AmazonSC | B00J9FZLAQ | 50.54 | 1 | 6 | | Cle-line | | 50.54 @ 6 |
