- mpnC23862
- brandname: Cle-Line
- manufacturername: Cle-Line

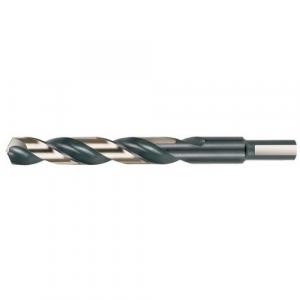

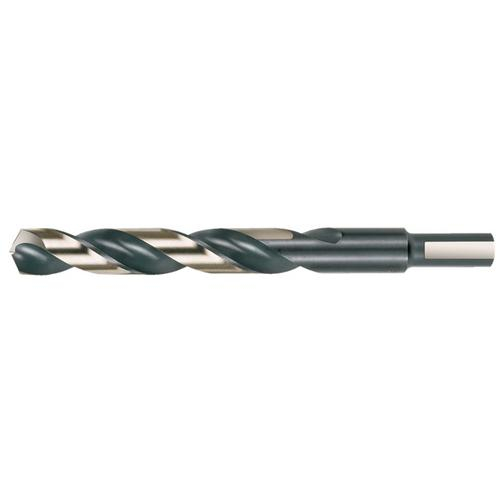

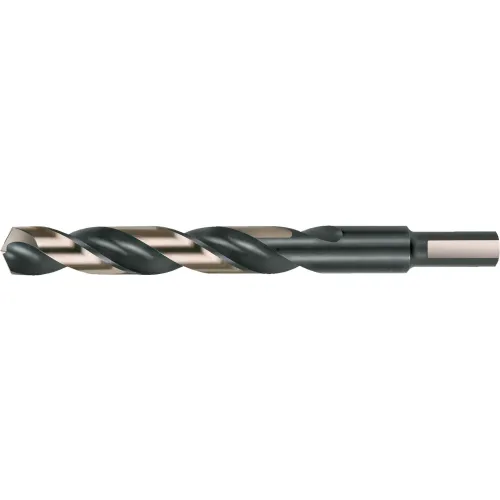

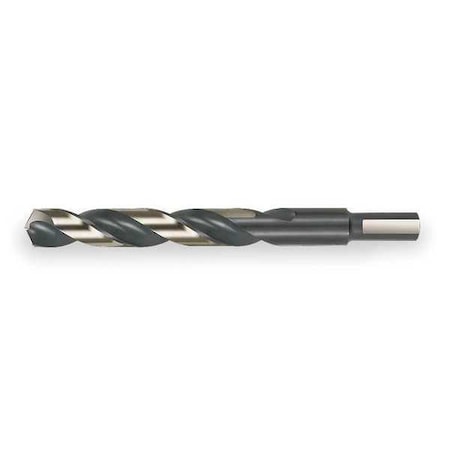

Mechanics Drill, 3/8 Shank, 29/64, HSS
- Brand: Cle-line
- PartNumber: C23862
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Low Carbon/Stainless St. |
| Application | For Alloy, Stainless An. |
| Coolant Fed | Non-Coolant Through |
| Cutting Depth | 3 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.4531 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.4531" |
| Diameter (Fraction) | 29/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black/Gold |
| Drill Bit Grouping | Drill Bit, Individual |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees, 135 Degre. |
| Drill Bit Point Type | Split point |
| Drill Bit Size | 29/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Size - Decimal In. | 0.4531 in |
| Drill Size - Fraction | 29/64 in |
| Drill Size System | Fractional |
| Drill Style | Mechanics Length Drill |
| Finish | Black/Gold |
| Finish - Machining | Black Oxide |
| Flute Length | 3.0000", 3 in |
| Flute Length (Metric) | 76.20mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| Item | Reduced Shank Drill Bit |
| List Number | 1876 |
| Material | HSS |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | Heavy Duty |
| Maximum Drilling Depth | 1 13/16 in |
| Measurement System | Fractional Inch, Imperi. |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 4 5/8 in, 4-5/8 in, 4.6. |
| Overall Length (Metric) | 117.47mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Point type | Split point |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1876 |
| Shank Configuration | Reduced |
| Shank Dia. | 1/2 in |
| Shank End Feature | Reduced |
| Shank End Feature Length | 1.0000" |
| Shank Length | 1 in, 1.6250" |
| Shank Length (Metric) | 41.27mm |
| Shank Size | 3/8 in, 0.3750" |
| Shank Size (Metric) | 9.52mm |
| Shank Type | Round with Flats, Reduc. |
| Shank Type - Machining | Straight with Three Fla. |
| Silver & Deming Drill | Yes |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 1876 |
| Surface Condition | Black & Gold |
| Tool Size | 29/64" |
| Type | Heavy Duty |
