Cle-line C23863

mpnC23863
brandname: Cle-Line
manufacturername: Cle-Line

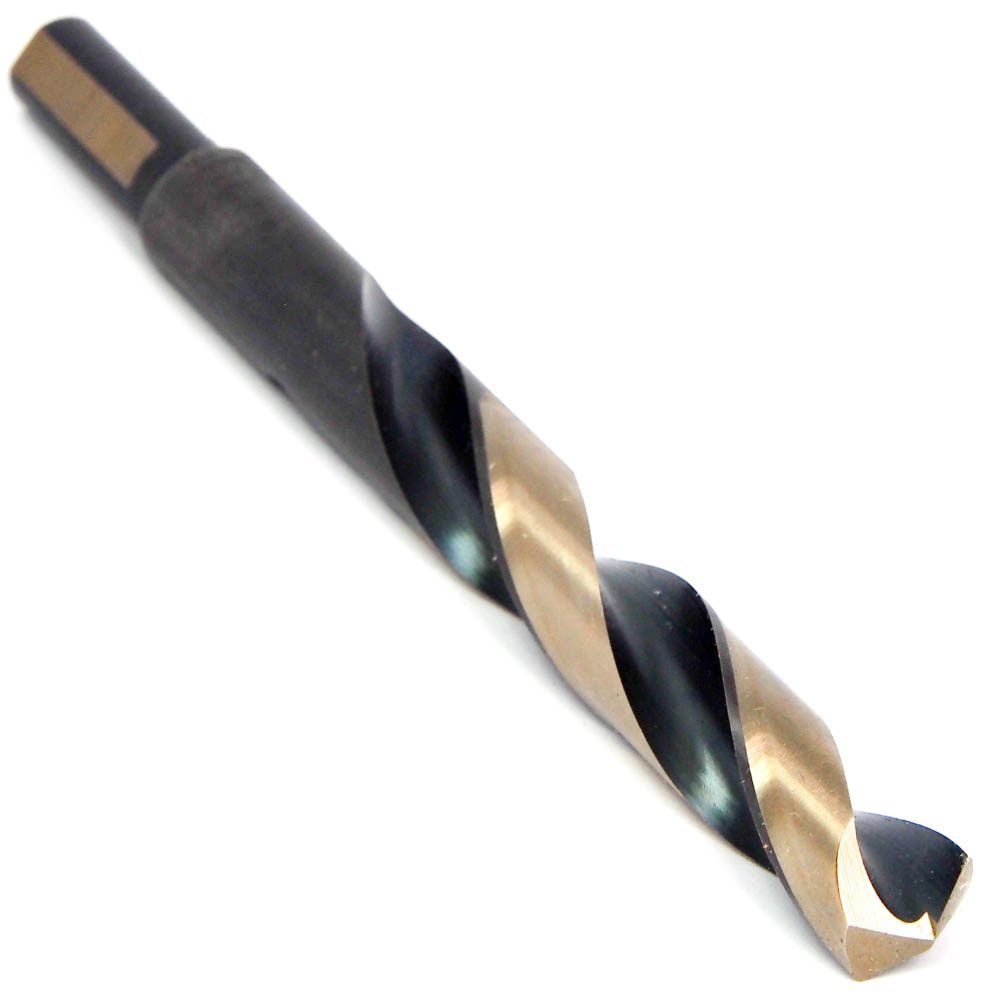

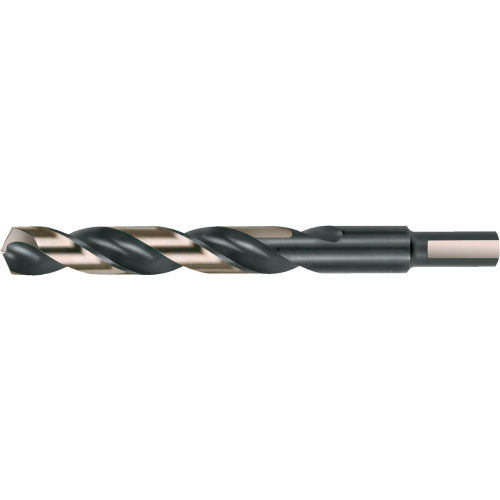

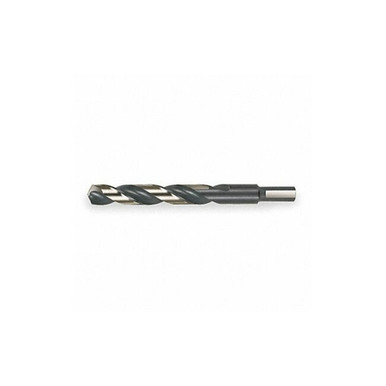

Mechanics Drill, 3/8 Shank, 15/32, HSS

Brand: Cle-line
PartNumber: C23863
Model: C23863
PackageQuantity: 1
Manufacturer: CLE-LINE
Label: CLE-LINE

Attributes

Key	Value
Application	For Alloy, Stainless An.
Brand	Cle-Line
Coolant Fed	Non-Coolant Through
Current Stock	38
Cutting Direction	Right Hand
Decimal Equivalent	0.4688
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Diameter	0.4688"
Diameter (Fraction)	15/32"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	Black/Gold
Drill Bit Grouping	Drill Bit, Individual
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	135 Degrees, 135 Degre.
Drill Bit Point Type	Split point
Drill Bit Size	15/32 in
Drill Construction	Heavy-Duty
Drill Diameter Tolerance	+0.0000 in /-0.0010 in
Drill Size System	Fractional
Drill Style	Mechanics Length Drill
Finish - Machining	Black Oxide
Flute Length	3 1/8 in, 3.1250"
Flute Length (Metric)	79.38mm
Flute Type	Spiral
Grade	Heavy Duty
Hand of Cut	Right
Hand of Spiral	Right
Helix Angle	28 Degrees
International Shipping	No
Item	Reduced Shank Drill Bit
List Number	1876
Material	HSS
Material - Machining	High Speed Steel
Material Grade - Machin.	Heavy Duty
Maximum Drilling Depth	1 7/8 in
Measurement System	Fractional Inch, Imperi.
Mpn	C23863
Number of Flutes	2
Number of Pieces	1
Overall Length	4.7500", 4 3/4 in
Overall Length (Metric)	120.65mm
Point Angle	135?
Point Style	Split
Point Type	Split point
Primary Material Applic.	Cast Iron, Steel
Primary Material Applic.	K, P
Series	1876
Shank Configuration	Reduced
Shank Dia.	1/2 in
Shank End Feature	Reduced
Shank End Feature Length	1.0000"
Shank Length	1 in, 1.6250"
Shank Length (Metric)	41.27mm
Shank Size	0.3750"
Shank Size (Metric)	9.52mm
Shank Type	Round with Flats
Shank Type - Machining	Straight with Three Fla.
Silver & Deming Drill	Yes
SKU	ZO-G1327907
Spiral Direction	Right Hand
Standards	ASME B94.11M
SubCategory	Machining
Surface Condition	Black & Gold
Tool Size	15/32"
UPC	697334238638

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Megadepot	C23863	7.23	1	6	Cle-Line		7.23 @ 6
heavydutydepot.com	C23863	7.23	14	6	Cle-Line		7.23 @ 14
Zoro	G1327907	10.26	1	40	Cle-Line	0.14	10.26 @ 6
usmegastore.com	C23863	10.33	1	6	Cle-Line		10.33 @ 6
grainger.ca	GNFC23863	15.2782163	1	6	CLE-LINE	0.146	15.2782163 @ 6
sustainablesupply.com	C1465325	15.94	1	6	Cle-Line	0.14	15.94 @ 6
simsupply.com	ZO-G1327907	17.75	1	38	Cle-Line		17.75 @ 6
AmazonSC	B000LEVRBQ	21.09	1	6	Cle-line		21.09 @ 6
Global Industrial	WBB2544005	49.8	1	6	Cle-Line		49.8 @ 6
