CLEVELAND C14356

mpnC14356
brandname: CLEVELAND
manufacturername: CLEVELAND

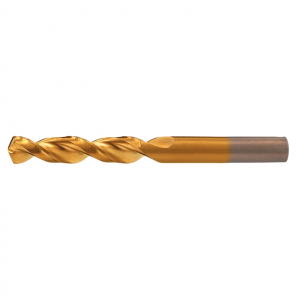

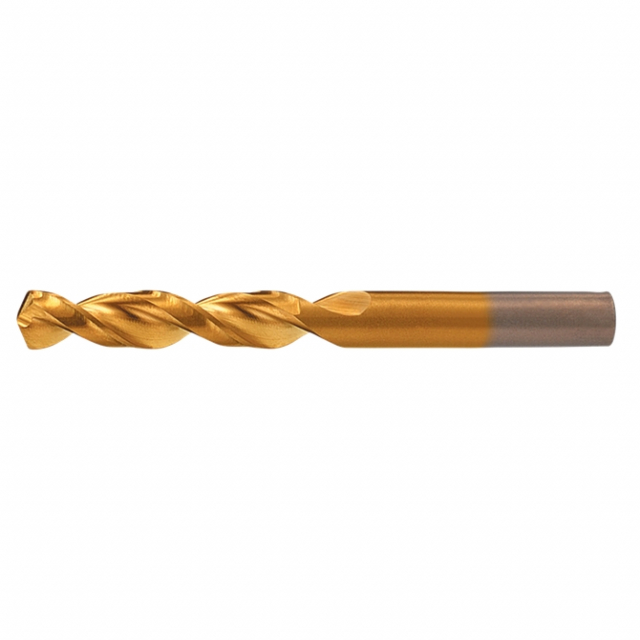

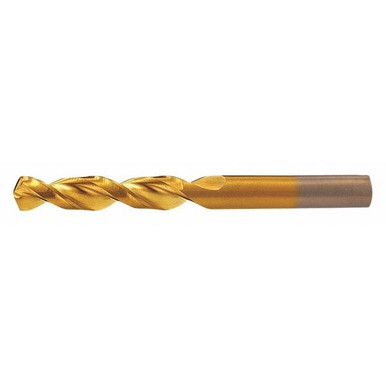

Cleveland 2175T Cobalt Steel Jobbers' Length Drill Bit, TiN Coated, Round Shank, 135 Degree Notch Point, 39/64" (Pack of 1)

Cleveland 2175T Cobalt Steel Jobbers

zoom

Brand: CLEVELAND
PartNumber: C14356
Model: C14356
Size: 39/64"
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Chilled Cast Iron, High.
Bit Dia.	39/64"
Brand	Cleveland
Construction:	Wide Land Parabolic
Current Stock	3
Cutting Depth	5XD
Cutting Direction	Right Hand
Cutting Edge Material	M42 HSS-Co 8
Decimal Equivalent	0.6094
Decimal Equivalent:	0.6094"/ 15.48mm
Depth x Dia. Ratio	10xD
Depth:Dia. Ratio	10xD
Diameter Fractional:	39/64"
Drill Bit Dimension Type	Fractional Inch
Drill Bit Finish	TiN
Drill Bit Grouping	Drill Bit
Drill Bit Material	Cobalt
Drill Bit Point Angle	135 Degrees
Drill Bit Size	39/64 in
Drill Diameter Measurem.	Imperial
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Length Class	Screw Machine Length
Drill Point Length	0.1262 in
Drill Size - Decimal In.	0.6094 in
Drill Size - Fraction	39/64 in
Drilling Length	2-3/4"
Finish	TiN Coated
Flute Length	2-3/4 in, 2 3/4 in
Flute Type	Parabolic, Right Spiral.
Hand of Spiral Cut:	RHS/RHC
International Shipping	No
Item	Screw Machine Drill Bit
Lead Time	Expected to ship in 1-2.
Length of Flute:	2.7500"/69.85mm
List Style:	2175-TN
Material	M42 HSS-Co 8, HSS-CO 8%.
Material:	Cobalt
Maximum Drilling Depth	2 3/4 in
Mpn	C14356
Number of Flutes	2
Overall Length	4 1/4 in, 4-1/4 in
Overall Length:	4.2500"/ 107.95mm
Point Angle	135 deg
Point Type	Split
Point:	135? Split
Series	2175-TN
Shank Dia.	39/64 in
Shank Length	1 1/2 in
Shank Size	39/64 in Dia x 1-1/2 in.
Shank Size:	0.6094"/ 15.48mm
Shank Type	Straight
Shank:	Straight
Sizes Included	39/64"
SKU	ZO-G2997823
Style	2175-TN
SubCategory	Machining
Surface Condition	TiN
Surface Condition:	TiN
Tool Size	39/64"
Type	High Performance
UPC	697334143567

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6110848	53.41	1	In Stock		Cleveland		53.41 @ 1
	Zoro	G2997823	58.39	1	10		Cleveland	0.27	58.39 @ 1
	Megadepot	C14356	62.59	1	In Stock		Cleveland		62.59 @ 1
	usmegastore.com	C14356	64.06	1	In Stock		Cleveland		64.06 @ 1
	sustainablesupply.com	C2770504	68.53	1	In Stock		Cleveland	0.26	68.53 @ 1
	simsupply.com	ZO-G2997823	69.64	1	3		Cleveland		69.64 @ 1
