- mpnED020480T2T
- brandname: EEMAX
- manufacturername: EEMAX

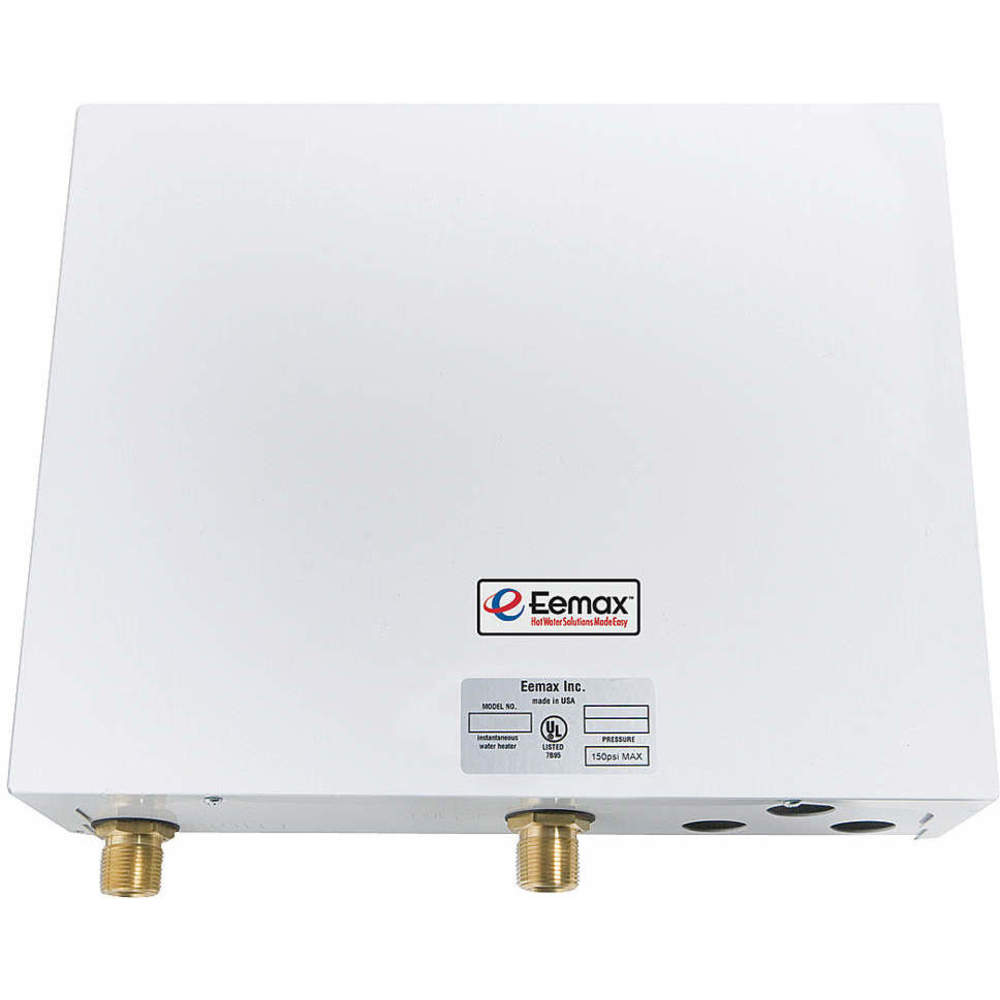

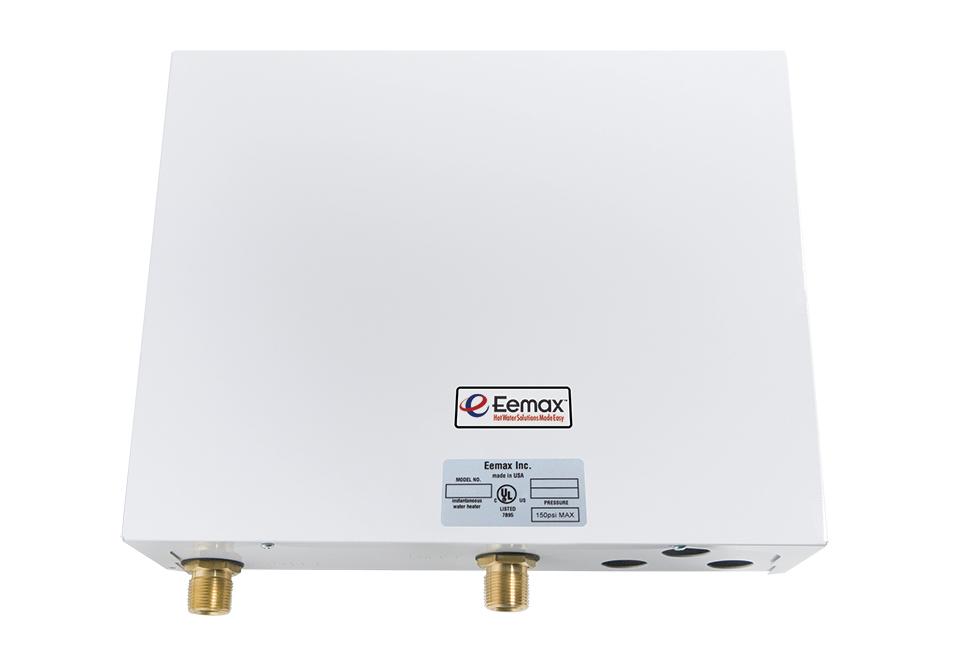

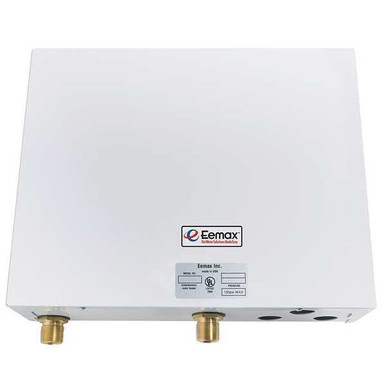

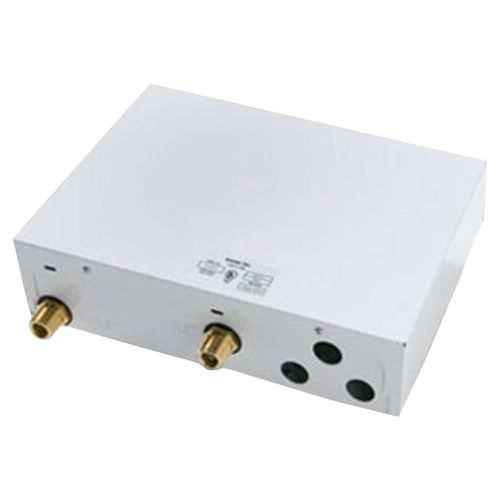

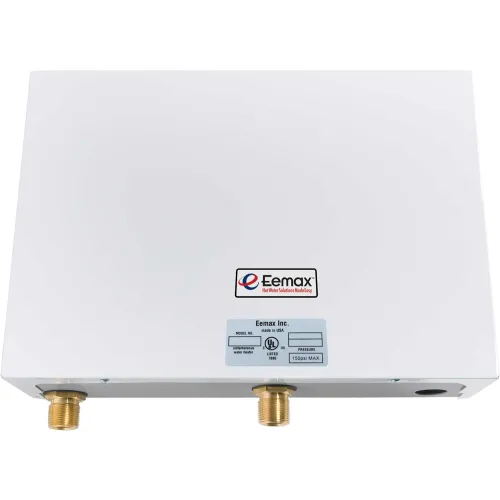

Eemax ED020480T2T FS 20KW 480V Delta Thermostatic Control
- Brand: Eemax
- PartNumber: ED020480T2T FS
- Model: ED020480T2T FS
- PackageQuantity: 1
- Binding: Tools & Home Improvement
- Manufacturer: Eemax
- Label: Eemax
Attributes
| Key | Value |
|---|
| AMP | 24 |
| Amperage | 24 amps |
| Amps - Water Heaters | 24 A |
| ANSI | ANSI 372 |
| Application | Commercial, Industrial,. |
| Brand | EEMax |
| Cold Inlet Size | 1/2 in |
| Cold Inlet Type | Compression |
| Collection | Three Phase? Delta |
| Color | White |
| Commercial / Residential | Commercial |
| Connection Size | 1/2" |
| Connection Type | Compression |
| Cord Conductor Gauge | 10 AWG Wire |
| Current | 24 A |
| Current Stock | 19 |
| Depth | 4 1/4 in, 4-3/8 in, 4" |
| Electrical Voltage | 480+ Volt |
| Element Material | Nichrome |
| Energy Star Compliant | No |
| Environment | Indoor |
| Features | Cut Energy Costs - Flow. |
| Flow Rate | 4 GPM |
| Height | 12", 12 in, 12 1/4 in |
| Hot Outlet Size | 1/2 in |
| Hot Outlet Type | Compression |
| Housing Material | Steel |
| Housing Material Finish | Powder Coated |
| Indoor Outdoor | Indoor |
| International Shipping | No |
| Item | Electric Tankless Water. |
| Length | 4-8/25 in |
| Manufacturer | EEMax |
| Manufacturer Warranty L. | 1 yr on Parts, 5 yr Lim. |
| Market | Commercial, Industrial |
| Max. Flow Rate | 4 GPM |
| Maximum Delivered Tempe. | 100 Degrees F |
| Maximum Flow Rate | 4 GPM |
| Maximum Temperature | 140 |
| Maximum Water Pressure | 150 psi |
| Min. Flow Activation | 0.75 gpm |
| Minimum Delivered Tempe. | 140 Degrees F |
| Minimum Flow Activation | 0.7 gpm |
| Minimum Temperature | 100 |
| Minimum Water Pressure | 25 psi |
| Modus Operandi | AC Electrical |
| Mounting | Vertical |
| Mounting Orientation | Vertical |
| Mounting Type | Wall Mounting |
| Mpn | ED020480T2T |
| NEMA Rating | N4, N4X |
| NSF | NSF 372 |
| NSF Certified | Yes |
| Number of Elements | 1 |
| Operating Voltage | 480V AC |
| Origin | Domestic |
| Overall Depth | 4.5 in |
| Overall Dimensions - H . | 12.25 in x 18.25 in x 4. |
| Overall Height | 12.25 in |
| Overall Width | 18.25 in |
| Phase | 3, Three, Three Phase |
| Phase - Water Heaters | 3 |
| Power Consumption | 20,000 W |
| Power Source | Electric |
| Pressure - Low | 35 |
| Pressure - Maximum | 150 psi |
| Product | Water Heater |
| Promotion Restriction | Not eligible for promot. |
| SKU | ZO-G6154793 |
| Standards | UL 499 |
| SubCategory | Plumbing |
| Supply Pipe Connection . | 1/2 in |
| Temp. Rise @ 2.5 GPM | 54 Degrees F |
| Temp. Rise @ 4.0 GPM | 34 Degrees F |
| Temperature Rise @ Flow | 34 Degrees F @ 4 gpm, 4. |
| Type | Electric Tankless Water. |
| UL Listed | UL 499 |
| UPC | 091654903847 |
| Use | Commercial & Industrial |
| Vent Type | Vent Free |
| Voltage | 480VAC |
| Volts | 480V |
| Water Connection Locati. | Bottom |
| Water Heater Type | Point of Use |
| Watts | 20,000, 20 kW |
| Weight | 15 lb |
| Width | 18", 18-1/4 in, 15 1/4 . |
| Wire Gauge (AWG) | 10 ga |
| Wire Size | 10 AWG |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Home Perfect | EEMED020480T2T | 1359.98 | 1 | In Stock | | Eemax | | 1359.98 @ 1 |
 | PlumbersStock | 383653 | 1559.73 | 1 | In Stock | | Eemax | 15.6 | 1559.73 @ 1 |
| National Supply Network | 4199196-FG | 1620.97 | 1 | In Stock | | EEMAX INC | | 1620.97 @ 1 |
| Grainger | 29PH83 | 1621.0 | 1 | 11 | 0 | EEMAX | | 1621.0 @ 1 |
 | Zoro | G6154793 | 1623.99 | 1 | 28 | | Eemax | 13.88 | 1623.99 @ 1 |
| ferguson.com | 4199196 | 1686.84 | 1 | In Stock | | Eemax | 15.0 | 1686.84 @ 1 |
 | citysupplygroup.com | ED020480T2T | 1686.84 | 1 | In Stock | | Eemax | | 1686.84 @ 1 |
 | ecomfort.com | ED020480T2T | 1686.84 | 1 | In Stock | | Eemax | | 1686.84 @ 1 |
| AF Supply | ED020480T2T | 1686.84 | 1 | In Stock | | Eemax | | 1686.84 @ 1 |
 | Global Industrial | WBB60154 | 1809.0 | 1 | In Stock | | Eemax | | 1809.0 @ 1 |
 | sustainablesupply.com | C1945205 | 1919.23 | 1 | In Stock | | Eemax | 13.88 | 1919.23 @ 1 |
 | simsupply.com | ZO-G6154793 | 1921.83 | 1 | 19 | | Eemax | | 1921.83 @ 1 |
| Torrco | 1227627 | 2103.33 | 1 | In Stock | | Eemax | | 2103.33 @ 1 |
| AmazonTP | B01GRJAMY6 | 2112.39 | 1 | In Stock | 2 | EEMAX | | 2112.39 @ 1 |
| grainger.ca | WWG29PH83 | 2260.0510131 | 1 | In Stock | | EEMAX | 13.88 | 2260.0510131 @ 1 |
 | Raptor Supplies | AF9ABB | 2273.8631175 | 1 | In Stock | | EEMAX | | 2273.8631175 @ 1 |
