Flowline AT12-3620

mpnAT12-3620
brandname: FLOWLINE
manufacturername: FLOWLINE

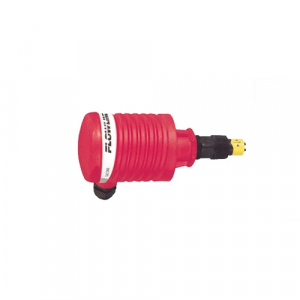

AT12-3620 Thermo-Flo? with Compact Flow Controller, Liquid, Short, PVDF, 3/4" NPT

AT12-3620 Thermo-Flo? with Compact Flow Controller, Liquid, Short, PVDF, 3/4" NPT

zoom

Brand: Flowline
PartNumber: AT12-3620
PackageQuantity: 1
Manufacturer: Flowline
Label: Flowline

Attributes

Key	Value
Ambient Temp.:	F: -40? to 140? C: -40?.
Classification:	General purpose
Compliance:	CE
Conduit Entrance:	1/2" NPT
Consumption:	0.25A maximum
Contact Delay:	0-60 seconds
Contact Output:	Selectable NO / NC
Contact Rating:	250 VAC @ 10A
Contact Type:	SPDT relay
Enclosure Mat.:	PP, UL94V
Enclosure Rating:	NEMA 4X (IP65)
LED Indication:	Sensor, power & relay
Mount. Gaske:	Viton
Pressure:	150 PSI (10 bar) @ 25?,.
Process Mount:	3/4" NPT
Process Temp.:	F: 32? to 140?, C: 0? t.
Repeatability:	? 0.5% of set point
Response Time:	1-10 seconds
Set Point Adjust.:	Potentiometer
Strobe Flash:	N/A
Strobe Type:	N/A
Supply Voltage:	120 / 240VAC, 50-60 Hz
Wetted Material:	PVDF

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	AT12-3620	895.0	1	In Stock		Flowline		895.0 @ 1
	burtprocess.com	AT12-3620	895.0	1	In Stock		Flowline		895.0 @ 1
	usmegastore.com	AT12-3620	895.0	1	In Stock		Flowline		895.0 @ 1
	heavydutydepot.com	AT12-3620	895.0	1	In Stock		Flowline		895.0 @ 1
