Leeson 116611.00

B00EPL2530

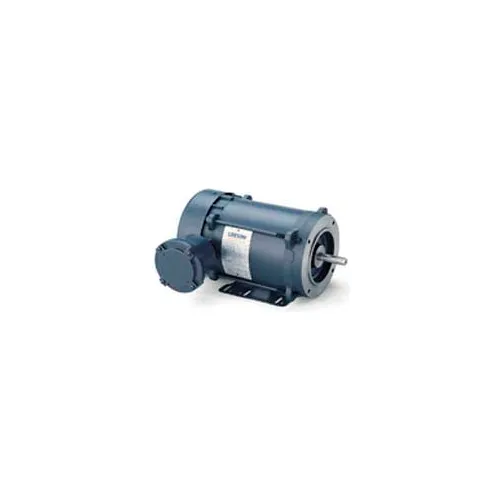

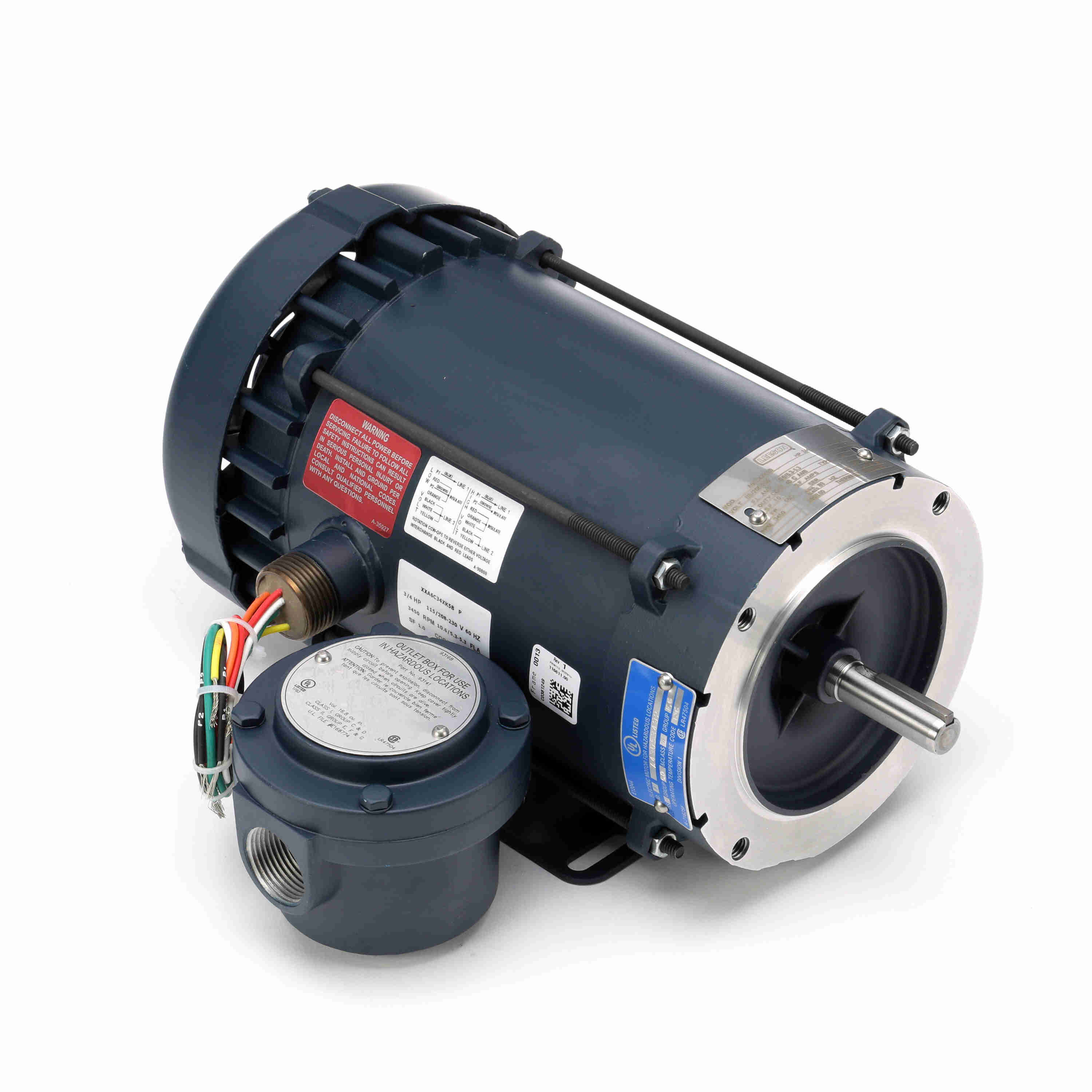

Leeson 116611.00 Rigid Base Explosion-Proof Motor, 1 Phase, 56C Frame, Rigid Mounting, 3/4HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 116611.00 Rigid Base Explosion-Proof Motor, 1 Phase, 56C Frame, Rigid Mounting, 3/4HP, 3600 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.A6C34XK5B
Amperage Rating10.6/5.3 to 5.3 A
ApprovalsCSA, UL
Bearing TypeBall
CategoryElectric Motor
Class/GroupA6C34XK5
CompositionSteel
ConstructionRolled Steel
Current Rating10.6 ; 5.3 to 5.3 A
Description:3/4HP..3450RPM.56C.EPFC.
Dimensions13.94 in L x 8.2 in W x.
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeC-Face
Duty CycleContinuous
Efficiency66 %, 66
EnclosureTEFC, Explosion Proof, .
Enclosure TypeEPFC, Explosion Proof F.
Estimated Weight41.00
Explosion Proof RatingClass I (Group C,D) Cla.
Family SeriesLeeson Motors, Explosio.
FL Amps10.6/5.3-5.3
FL Efficiency66
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTED
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hazardous LocationDIV 1 EXP PROOF CL I GR.
Hertz60
Horsepower0.75 HP, 3/4 hp
Horsepower Rating0.75 HP
HP0.75
Hz60
Insulation ClassB, Class B
Insulation TypeClass B
Item ConditionFACTORY NEW
Item Number116611.00
KW0.56
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number116611.00
MaterialRolled Steel
MFG Part #:116611.00
Model NumberA6C34XK5
MountingFoot Mount
mountingC-face w/ rigid base
Mounting TypeFoot Mount, Rigid, Rigi.
NEMA Frame56C
Net Weight41 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles2
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length13.94 "
Overload ProtectionAutomatic
Part Number116611.00
Phase1, 1 Phase, 1 ph
Product SeriesExplosion Proof
Product TypeExplosion Proof
RotationSelective CCW
RPM3450 RPM, 3600, 3400 - .
Service Factor1
Shaft Diameter0.625, UL;CSA
Shaft Length1.88
Shaft Size0.63 in Dia x 1.88 in L
Special FeaturesHazardous location - EX.
Speed3450 RPM
Speed (RPM)3450
StandardsUL Listed And CSA Certi.
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage115/208-230 VAC
TypeCapacitor Start Inducti.
UPC Code691720341827
UPC:691720341827
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com116611467.01In StockLEESON467.0 @ 1
AmazonTPB0773VWYML621.551In Stock3Leeson Electric621.55 @ 1
thumbzoomMRO Supply2525964677.931In StockLeeson677.93 @ 1
thumbzoomapexindustrialautomation.com116611.00704.013Leeson704.0 @ 1
thumbzoomDealers Electric116611.00846.561In StockLeeson41.0846.56 @ 1
us.rs-online.com72239115926.761In StockLeeson926.76 @ 1
thumbzoommotorsandcontrol.comLE-116611.00929.88124Leeson Electric41.0929.88 @ 1
thumbzoomGalco116611.00-LEES937.141In StockLeeson41.0937.14 @ 1
kscdirect.comLEE 116611.00971.791In StockLEESON ELECTRIC CORPORATION971.79 @ 1
thumbzoomWalker Industrial116611-001053.871In Stock10Leeson1053.87 @ 1
thumbzoomGlobal IndustrialWBB5885451149.01In StockLeeson1149.0 @ 1
thumbzoompumpproducts.com116611.001261.421In StockLeeson1261.42 @ 1
thumbzoomRaptor SuppliesAJ2QTW1326.741391In StockLEESON1326.74139 @ 1
