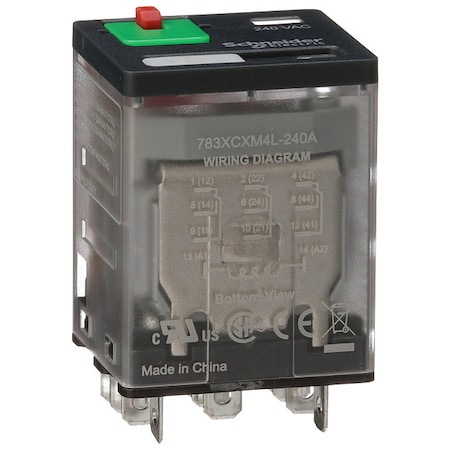

Schneider Electric 783XCXM4L-240A

mpn783XCXM4L-240A
brandname: Magnecraft / Schneider Electric
manufacturername: Magnecraft / Schneider Electric

Plug in Relay, 11 Pins, Square, 240VAC

Brand: Schneider Electric
PartNumber: 783XCXM4L-240A
PackageQuantity: 1
Manufacturer: SCHNEIDER ELECTRIC
Label: SCHNEIDER ELECTRIC

Attributes

Key	Value
AC Contact Rating - Rel.	12A @ 277V, 15A @ 120V
Approvals	CE, CSA, UL
Base Type - Plug In Rel.	Square
Bifurcated Contact	No
Body Depth	1.54 in
Body Depth - Relay	1.1 in
Body Height	1.07 in
Body Height - Relay	1.6 in
Body Width	1.2 in
Body Width - Relay	1.2 in
Brand	Schneider Electric
Coil Voltage	240 VAC ; 220/230/240 V.
Coil Volts	240V AC
Contact Current Rating	15 A
Contact Form	3PDT
Contact Form - Relay	3PDT
Contact Material	Silver Alloy, Gold Flas.
Contact Voltage Rating	300 VAC
Contacts	3PDT
Control Voltage	240
Current Rating	15 A
Current Stock	59
DC Contact Rating - Rel.	12A @ 28V
Depth	0.157 in
Dielectric Rating	2500 V (RMS) (Pole to P.
Dimensions	1.10 x W 1.21 x H 1.54 .
Diode	No
Enclosure	Plastic
Family Series	Schneider Relays, 700 S.
Features	Bi-polar LED, IP40, Loc.
Flat Pin Width	0.187 in
Function	General Purpose
Gross Weight	0.0022 lbs
Height	1.575" (40mm)
HP @ 120V	1/2 hp
International Shipping	No
Item	General Purpose Relay
Item - Relay	General Purpose Relay
Item Number	783XCXM4L-240A
Length	1.212 in
Life	10000000 Operations
Manufacturer	Schneider
Manufacturer Part Number	C833006M
Max Current	15 A
Maximum Operating Tempe.	55 ?C
Mechanical Latch	Yes
Minimum Operating Tempe.	-40 ?C
Mounting	Plug In
Mounting - Relay	Plug In
Mounting Type	Socket Mount
Mpn	783XCXM4L-240A
Net Weight	0.0022 lbs
Nominal Coil Voltage	240 VAC
Number of Electrical Co.	11
Number of Pins - Relay	11
Overall Depth	2.07 in
Overall Height - Relay	1.85 in
Power Consumption - Rel.	1.5 VA
Primary Type	Power Relays
Product Header	783 Series Ice Cube Rel.
Product Series	700
Published Coil Voltage	240 VAC
Push-to-Test	Yes
Rating @ 120 VAC	15 A
Rating @ 220/240/277 VAC	12 A
Rating @ 24/28/30 VDC	12 A
Relay Type	Electromechanical
RoHS	Yes
Safety Guided	No
Series	790 Series
SKU	ZO-G2427083
Standards	UL, CSA, CE, RoHS, CE C.
Status Indicator	Yes
SubCategory	Electrical
Termination	QC Tabs, .187 " Flat Bl.
Voltage Rating	300 V

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Brand	Weight	Preferred Tier
Zoro	G2427083	13.35	1	77	Schneider Electric	0.14	13.35 @ 1
Onlinecomponents.com	783XCXM4L-240A	14.031	1	29	Magnecraft / Schneider Electric		14.031 @ 1
sustainablesupply.com	C1209775	19.33	1	In Stock	Schneider Electric	0.14	19.33 @ 1
Mouser	996-783XCXM4L-240A	21.37	1	9	Schneider Electric		21.37 @ 1
simsupply.com	ZO-G2427083	21.78	1	59	Schneider Electric		21.78 @ 1
Verical	783XCXM4L-240A	25.56	3	45	Schneider Electric		25.56 @ 3
Galco	783XCXM4L-240A-MGCR	26.0	1	In Stock	Schneider	0.0022	26.0 @ 1
us.rs-online.com	70184905	30.72	10	In Stock	Schneider Electric/Legacy Relays		30.72 @ 10
Newark	10M6565	33.8	10	In Stock	SCHNEIDER ELECTRIC/LEGACY RELAY		33.8 @ 10
