Marathon Industries U785

B0876CRY82

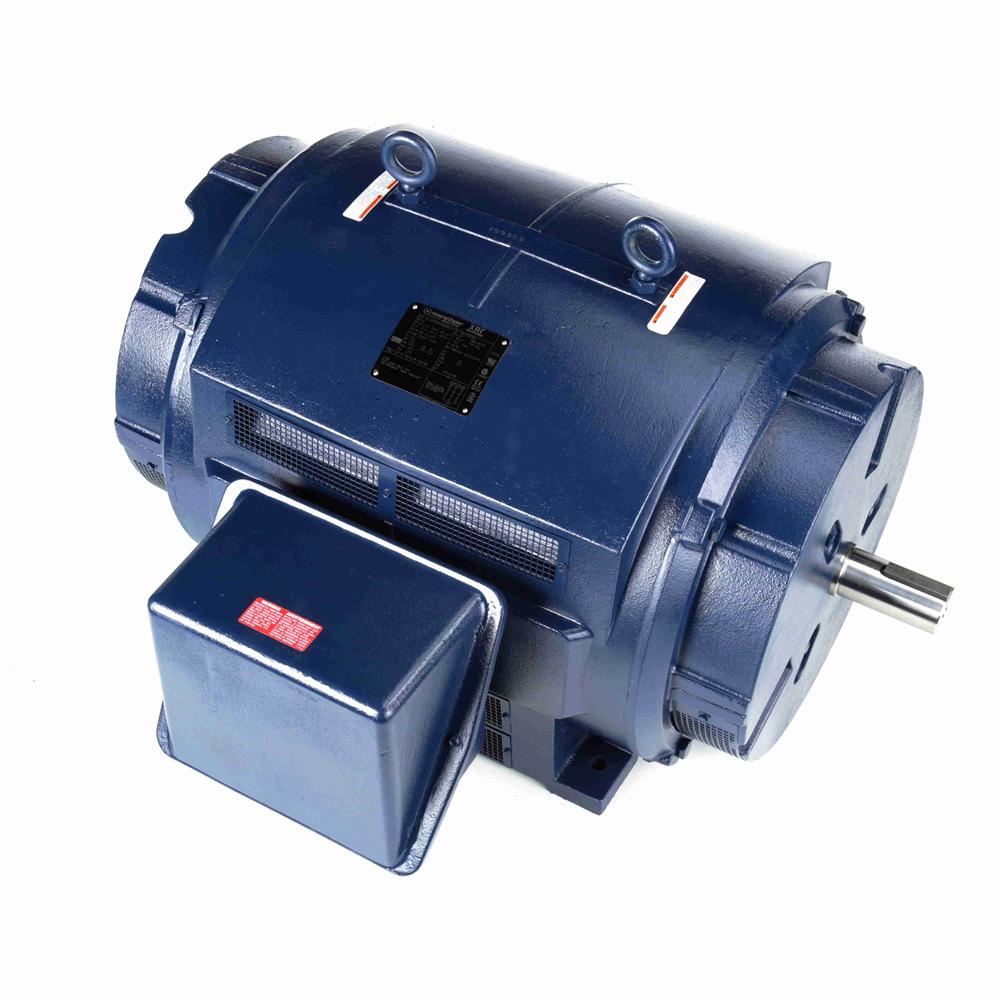

Marathon Motors Premium Efficiency Motor, U785, 250HP, 3600RPM, 460V, 3PH, 447TS FR, DP

Marathon Motors Premium Efficiency Motor, U785, 250HP, 3600RPM, 460V, 3PH, 447TS FR, DPzoom

Attributes

Key Value
Alternate Mfr Part Numb.447TSTDN16004
Amps275.0, 275
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension39.50 (in.)
Catalog NumberU785
CEY
CompositionCast Iron
CSAY
DE Bearing TypeBall
DEM ReferenceNOHP
DutyContinuous
Duty CycleContinuous
Efficiency0.954
Efficiency %95.8 %
Electrical TypeSquirrel Cage Induction.
EnclosureODP, Drip Proof
Enclosure MaterialIron
Enclosure TypeODP (Open Dripproof), D.
enclosure type:DP (Drip Proof)
Family SeriesMarathon Electric Motor.
Frame447TS
Frame MaterialCast Iron
frame material:Cast Iron
frame size:447TS
Frame Type447TS
Frequency60
frequency rating:60 Hz
full load current:274.00 A
full load efficiency:95.80 %
Gross Weight0 lbs
Horsepower250 hp
HP250
Hz60
Insulation ClassF
Inverter DutyYes
IP Code12
Item NumberU785
KVA CodeF
ManufacturerMarathon Electric
Manufacturer Model #447TSTDN16004
Manufacturer Part Number447TSTDN16004
Max Ambient40?C
Maximum Ambient Tempera.40? C
Model Number447TSTDN16004
motor horsepower:250 hp
Motor OrientationHorizontal
motor phase:3 ph
Motor Shell Length24.38"
motor supply voltage:460 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeFoot Mount, Rigid, Rigi.
mounting type:Rigid Base
Net Weight2028 lbs
Number of Speeds1
ODE Bearing TypeBall
Overall Length39.5", 39.5 "
overall length (c-dimen.39.50 in
Phase3
Product CategoryGeneral Purpose NEMA Ge.
Product SeriesNEMA PREMIUM GENERAL PU.
Product TypeThree Phase
RotationReversible
RPM3400 - 3600, 3570, 3,60.
RPM (Nameplate)3572
RPM (Number of Poles)2 (1801 RPM to 3600 RPM)
Service Factor1.15
service factor:1.15
Shaft Diameter2-3/8", 2-3/8 (in.)
shaft diameter:2.38 in
Shaft Extension5.01 (in.)
Shaft Length5.01"
Shaft TypeTS
Ship Weight1438 lbs.
Speeds1
standards met:UL, CSA
synchronous rpm:3600 rpm
Type of Overload Protec.No
ULRecognized
Voltage460
Voltage (AC)460 VAC
Volts460
weight:1438 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.comU78512194.01In StockMARATHON12194.0 @ 1
thumbzoomMRO Supply226844017124.671In StockMarathon Electric17124.67 @ 1
thumbzoommotionindustries.com0473873118957.491In StockMarathon Electric18957.49 @ 1
thumbzoomemotorpro.comU78520924.211In StockMarathon1438.020924.21 @ 1
thumbzoomGlobal IndustrialWBB87140421904.01In Stock17Marathon Motors21904.0 @ 1
thumbzoomGalcoU785-MARA22054.51In StockMarathon Electric2028.022054.5 @ 1
thumbzoomDreisilkerMA-RBC-U78523513.491In StockMarathon23513.49 @ 1
thumbzoomNational Supply NetworkB87140423947.291In StockMARATHON MOTORS23947.29 @ 1
us.rs-online.com7343136225108.21In StockMarathon Motors25108.2 @ 1
thumbzoomcbtcompany.comU78526197.471In StockMarathon Electric Motors26197.47 @ 1
