Marathon Electric X003

B0042GBKYI

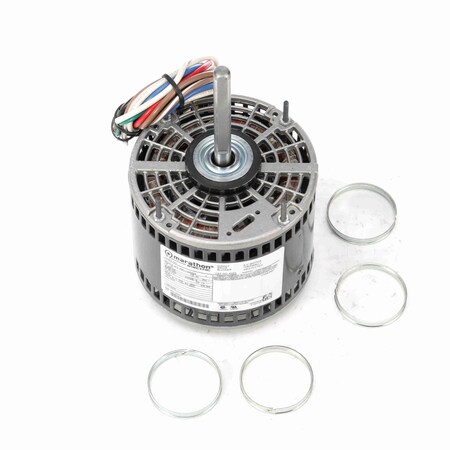

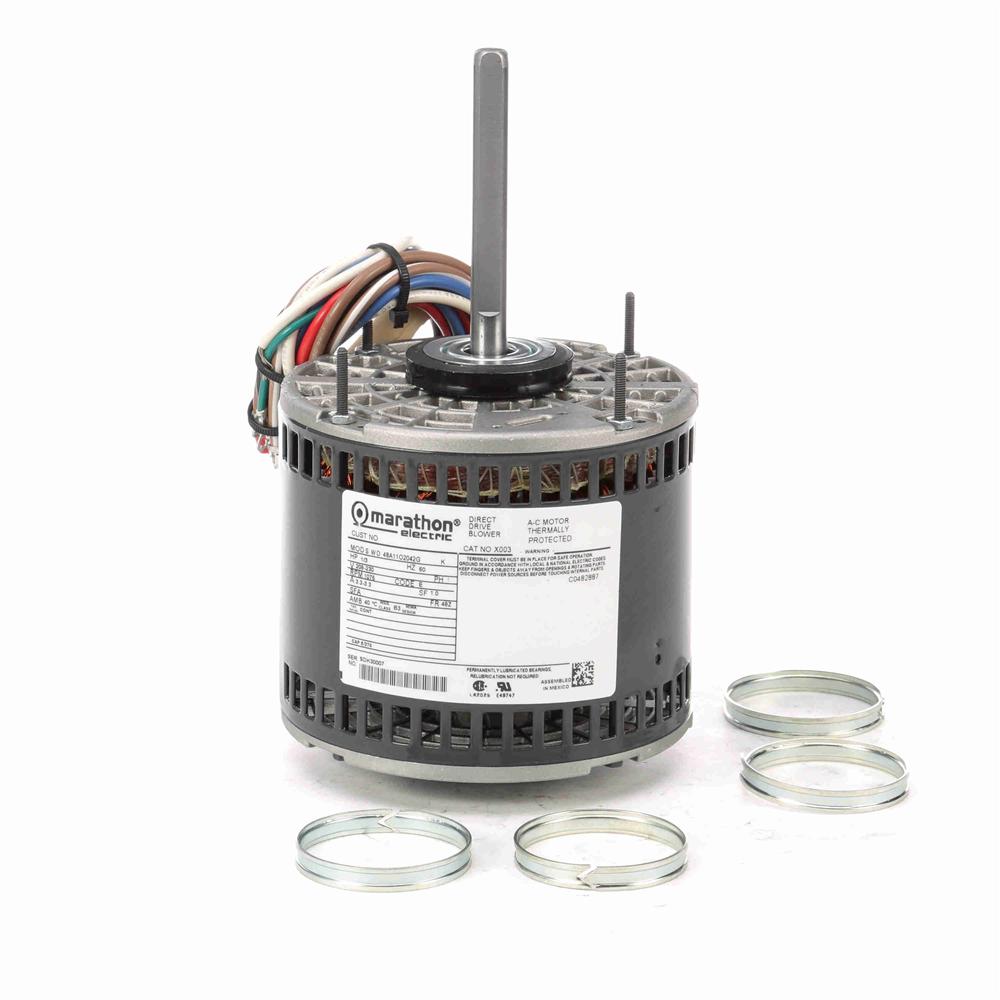

Marathon X003 48Y Frame Open Air Over 48A11OB2042 Direct Drive Motor 1/3 hp, 1075 RPM, 208-230 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Bolt

Marathon X003 48Y Frame Open Air Over 48A11OB2042 Direct Drive Motor 1/3 hp, 1075 RPM, 208-230 VAC, 1 Phase, 3 Speeds, Ball Bearing, Permanent Split Capacitor, Thru-Boltzoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11O2042
Amps3.3-3.3
ApprovalsCSA, UR
Bearing TypeBall
BearingsBall
BrandMarathon
C-Dimension9.75 (in.) (in.)
Capacitor5MFD/370VAC Required
Catalog NumberX003
CEN
CompositionRolled Steel
Country of Origin (subj.Mexico
CSAY
DE Bearing TypeBall
DEM ReferenceMA#X003
DutyContinous
Duty CycleContinuous
Efficiency0.595
Efficiency %59.5 %
Electrical TypePermanent Split Capacit.
EnclosureOPAO, Open Air Over
Enclosure MaterialSteel
Enclosure TypeOAO (Open Air Over), Op.
Family SeriesMarathon Electric Motors
Frame48Z
Frame MaterialRolled Steel
Frame Type48Z
Frequency60, 60 Hz
Gross Weight0 lbs
Horsepower1/3 hp
HP1/3
Hz60
Insulation ClassB
IP Code10
Item NumberX003
Kilowatts0.25 kW
KVA CodeE
ManufacturerMarathon Electric
Manufacturer Model #048A11O2042
Manufacturer Part Number048A11O2042
Max Ambient40?C
Maximum Ambient Tempera.40? C
Motor Diameter5-5/8"
Motor OrientationHorizontal
Motor Shell Length4.25"
MountingBase/Stud
Mounting OrientationHorizontal
Mounting TypeResilient Ring - Extend.
Net Weight14 lbs
Number of Poles6
Number of Speeds3
ODE Bearing TypeBall
Overall Length9.75", 9.75 "
Phase1
Product CategoryHVAC/R Motors > Fan an.
Product TypePSC (Permanent Split Ca.
RotationReversible, Selective C.
RPM1075, 1,075 RPM
RPM (Nameplate)1075
RPM (Number of Poles)6 (901 RPM to 1200 RPM)
Service Factor1
Shaft Diameter0.5 ", 1/2 (in.), 1/2"
Shaft Extension4.06 (in.) (in.)
Shaft Length4.06"
Shaft TypeSingle Special Extension
Ship Weight14 lbs.
Speeds3
Thermal ProtectionAutomatic
Type of Overload Protec.Automatic Lock Rotor On.
ULRecognized
Voltage208-230
Voltage (AC)208-230 VAC
Volts208, 230, 208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomindustrialstores.comX003117.411In Stock10Marathon Motors117.41 @ 1
thumbzoomcshincorporated.comMX003132.731In StockMarathon14.0132.73 @ 1
thumbzoomSquare OneX003134.321In StockMARATHON MOTOR134.32 @ 1
thumbzoomGalcoX003-MARA145.971In StockMarathon Electric14.0145.97 @ 1
thumbzoomemotorpro.comX003148.121In StockMarathon14.0148.12 @ 1
us.rs-online.com72650087164.411In StockMarathon Motors164.41 @ 1
thumbzoomMRO Supply2269561176.791In StockMarathon Electric176.79 @ 1
thumbzoomDreisilkerMA-RBC-X003179.211In StockMarathon179.21 @ 1
AmazonSCB008HOXLZC187.81In StockMarathon Electric Manufacturing Corp.187.8 @ 1
thumbzoomZoroG906629487189.641In Stock10Marathon189.64 @ 1
