Marathon Electric X262

B0042GBEEE

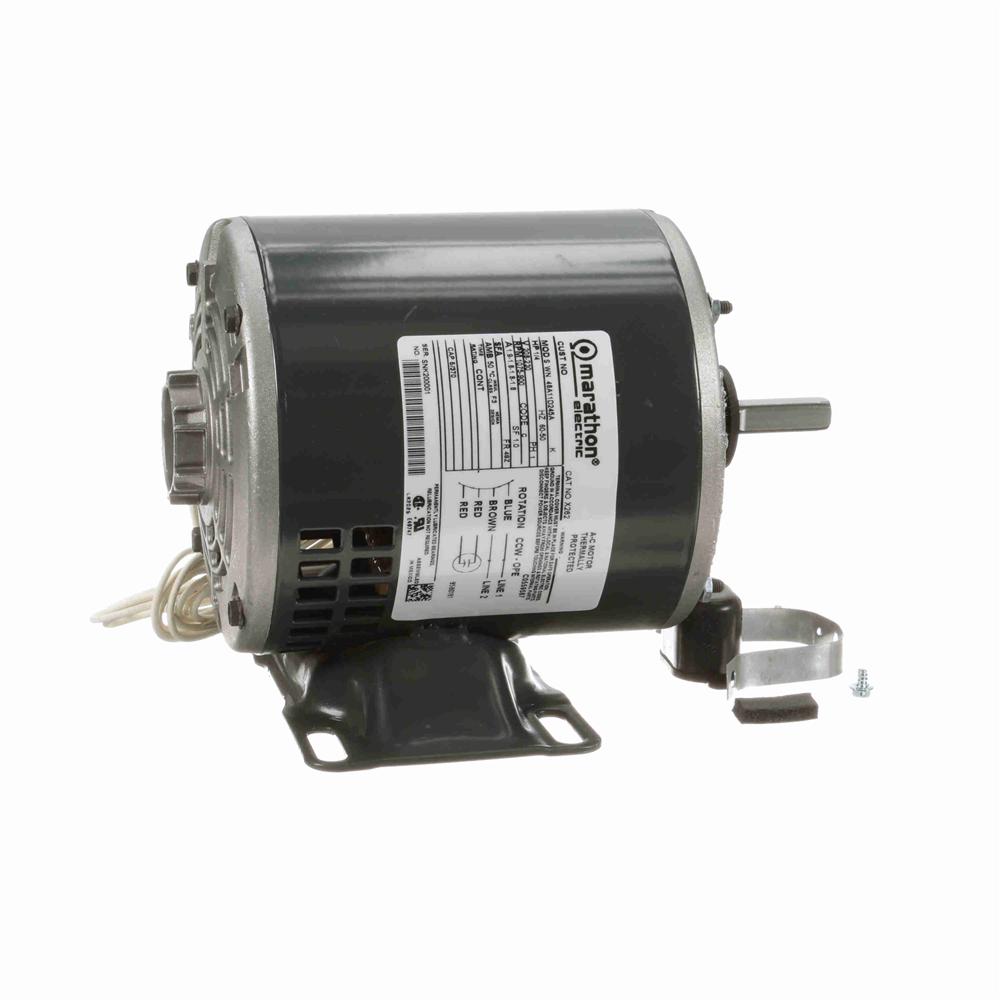

Marathon X262 48Y Frame Open Air Over 48A11D245 Refrigeration Motor 1/4 hp, 1075 RPM, 208-230 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Rigid Base

Marathon X262 48Y Frame Open Air Over 48A11D245 Refrigeration Motor 1/4 hp, 1075 RPM, 208-230 VAC, 1 Phase, 1 Speed, Ball Bearing, Permanent Split Capacitor, Rigid Basezoom

Attributes

Key Value
Alternate Mfr Part Numb.048A11D245
Amps1.9-1.8
BearingsBall
Capacitor5MFD/370VAC Required
Current Rating1.9 to 1.8 A
Duty CycleContinuous
Efficiency68, 0.68
Enclosure MaterialSteel
Enclosure TypeODP (Open Dripproof), D.
enclosure type:DP (Drip Proof)
Frame48Z
frame material:Rolled Steel
frame size:48Z
Frequency60/50 Hz
frequency rating:60 Hz
Horsepower Rating0.25 HP
HP1/4
Hz60
Insulation ClassF
Insulation TypeClass F
Manufacturer Model #048A11D245
Maximum Ambient Tempera.50? C
motor category:Refrigeration Motor
Motor Diameter5-5/8"
motor horsepower:1/4 hp, 0.25 hp
motor phase:1 ph
Motor Shell Length5.25"
motor supply voltage:208-230 V
MountingBase
Mounting OrientationHorizontal
Mounting TypeRigid Base
mounting type:Rigid Base
Number of Speeds1
Overall Length8.94"
Phase1, 1 Phase
Product TypePSC (Permanent Split Ca.
RotationReversible
RPM1075 RPM, 1075
Service Factor1
Shaft Diameter1/2"
Shaft Length1.69"
Ship Weight15 lbs.
Special FeaturesService Factor - 1
StandardsUL Recognized
standards met:UL, CSA
Supply Voltage208-230 VAC
synchronous rpm:1200 rpm
Thermal ProtectionAutomatic
TypePermanent Split Capacit.
UPC Code722856041739
Volts208, 230
weight:16 oz

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoommotionindustries.com04740073193.231In StockMarathon Electric193.23 @ 1
us.rs-online.com72238316231.611In StockMarathon Motors231.61 @ 1
thumbzoomemotorpro.comX262237.851In StockMarathon15.0237.85 @ 1
thumbzoomGlobal IndustrialWBB186204237.951In StockMarathon Motors237.95 @ 1
thumbzoomGuardianMARSX262325.131In StockMarathon325.13 @ 1
