Martin TS2035BS 1/2

mpnTS2035BS 1/2
brandname: Martin
manufacturername: Martin

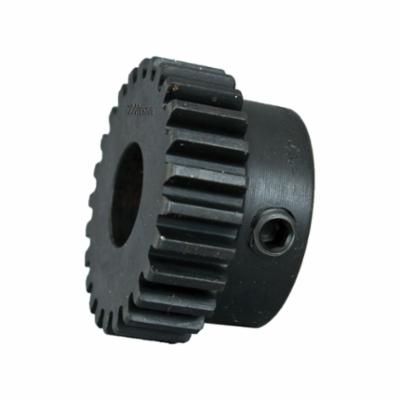

Martin TS2035BS 1/2 Spur Gear, 20? Pressure Angle, High Carbon Steel, Inch, 20 Pitch, 1/2" Bore, 1.85" OD, 0.500" Face Width, 35 Teeth

Martin TS2035BS 1/2 Spur Gear, 20? Pressure Angle, High Carbon Steel, Inch, 20 Pitch, 1/2" Bore, 1.85" OD, 0.500" Face Width, 35 Teeth

zoom

Brand: Martin
PartNumber: TS2035BS 1/2
PackageQuantity: 1
Binding: Misc.
Manufacturer: Martin
Label: Martin

Attributes

Key	Value
Bore Diameter	0.5 in ; 12.7 mm
Bore Type	Bored to Size
Class	6
Diametral Pitch	20
External Length	0.5" (12.7mm)
Gear Type	B
Hub Outside Diameter	1.5625" (39.7mm)
Key Way Size	NONE
Length Through Bore	1" (25.4mm)
Material	Steel
Maximum Bore Diameter	0.875" (22.2mm)
Number of Teeth	35
Number Of Teeth	35
Outer Diameter	1.85" (47mm)
Outside Dia	1.850"
Pitch Diameter	1.75" (44.5mm)
Pressure Angle	20 Degrees PA
Set Screw Location	0
Set Screw Size	1/4-20 X 1/4
Style	B
UPC Code	697950440743
Weight	0.54 lbs. (0.2 kg)
Width	0 in

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	us.rs-online.com	72333014	61.71	1	In Stock		Martin Sprocket & Gear	0.54	61.71 @ 1
	cbtcompany.com	TS2035BS 1/2	62.31	1	In Stock		Martin Sprocket & Gear		62.31 @ 1
	MRO Supply	251730	74.77	1	In Stock		Martin Sprocket		74.77 @ 1
	Purvis	TS2035BS 1/2	80.24	1	In Stock		Martin		80.24 @ 1
