- mpnLCC2-12-Q
- brandname: Panduit
- manufacturername: Panduit

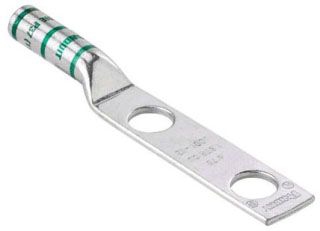

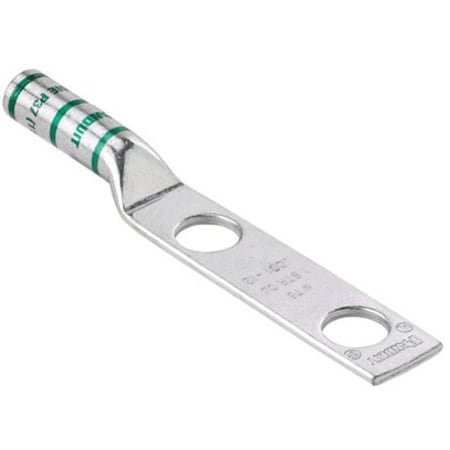

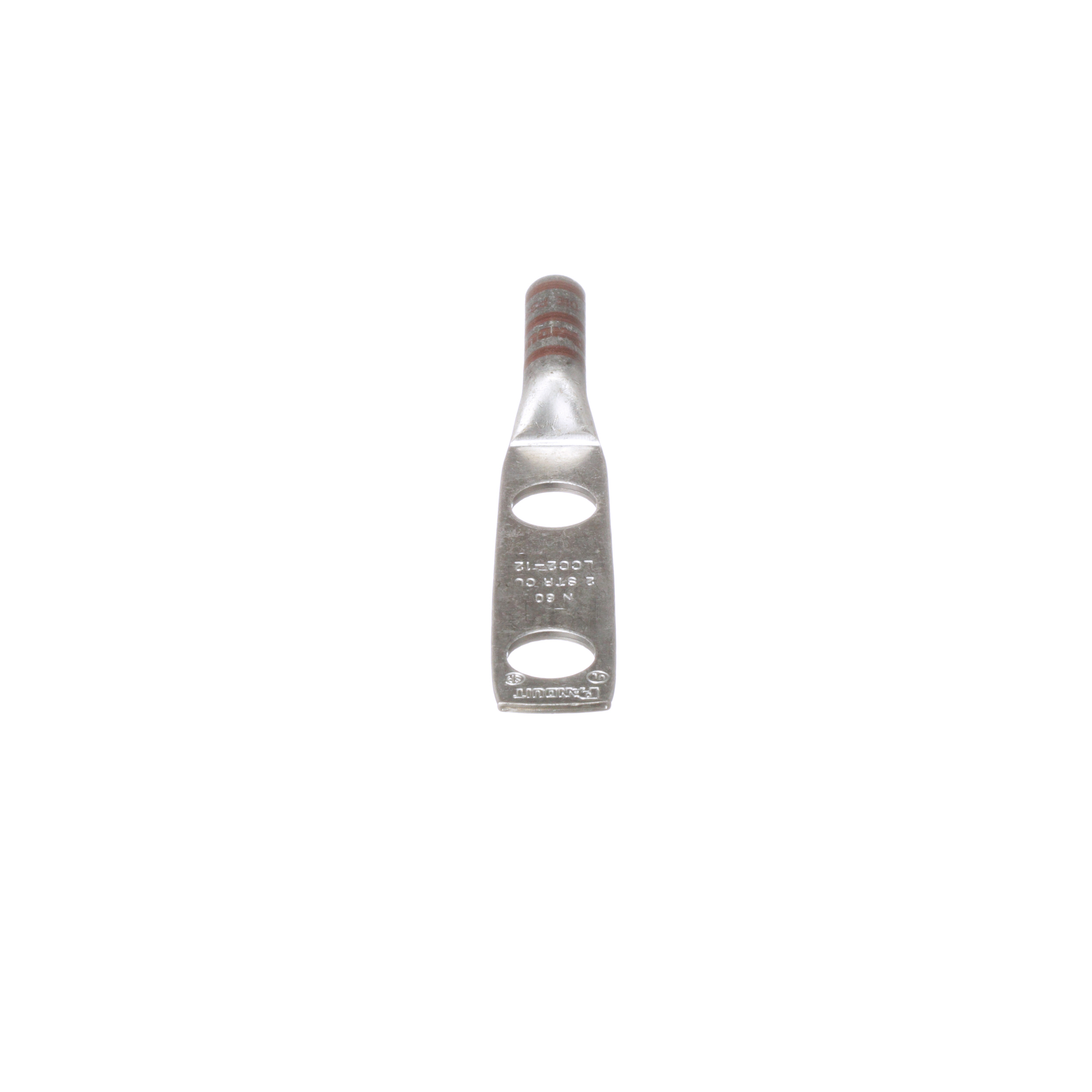

Panduit LCC2-12-Q Code Conductor Copper Compression Lug, 2 Hole, #2 AWG, 1/2-Inch Stud, 1.75-Inch Hole Spacing
- Brand: Panduit
- PartNumber: LCC2-12-Q
- Model: LCC2-12-Q
- Color: Brown
- Size: 1/2-Inch Stud Hole, 1.75-Inch Hole Spacing
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| accessory type | Panduit?? |
| Allowable Gauge Range | 2 |
| Application | Tin-Plated |
| Approvals | CSA, UL |
| Barrel Diameter | 0.31 Inch ID x 0.42 Inc. |
| Barrel Length | 1.16 |
| Barrel Type | Long, without Inspectio. |
| Base Product Number | LCC2 |
| Brand | PANDUIT, Pan-Lug? |
| Brand Name | PANDUIT |
| Cable Size | 2 AWG |
| Carton | 1 |
| Catalog Number | LCC2-12-Q |
| Category | Connectors, Interconnec. |
| Category Description | Comp & Mech Lugs and Bu. |
| Classification | Comp & Mech Lugs and Bu. |
| Color | Brown |
| Color Code | Brown |
| Color Family | Brown |
| Conductor Size | 2 AWG |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Long Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico, Mexico |
| Country Of Origin | Mexico |
| Country of Origin (subj. | Mexico |
| Description | CONN TERM RECT TONG 2 A. |
| Detailed Description | Terminal Connector Rect. |
| Diameter - Barrel ID | 0.310" (7.87mm) |
| Diameter - Barrel OD | 0.420" (10.67mm) |
| Diameter - Ring ID | 0.530" (13.46mm) |
| Die Code | P33 |
| Die Color | Brown |
| Digi-Key Part Number | 298-14811-ND |
| ECCN | EAR99 |
| Energy Star Flag | No |
| extra long description | PAN LCC2-12-Q Pan-Lug . |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated, Electro Tin. |
| gang | Tin-Plated |
| Gross Weight | 2.05 lbs |
| GTIN | 00074983902873 |
| Insulation | Non-Insulated |
| Insulation Material | No |
| Item | Lug Compression Connect. |
| Item Name | Compression Lug |
| Item Number | LCC2-12-Q |
| Item Type | Copper Compression Conn. |
| Length | 4.51" |
| Length - Overall | 4.510" (114.55mm) |
| Long Description | Two-hole, long barrel l. |
| Lug Wire Size | 2 AWG |
| Made In America | Yes |
| Made in USA | No |
| Manufacturer | Panduit Corp, PANDUIT |
| Manufacturer Name | PANDUIT |
| Manufacturer Part Number | LCC2-12-Q |
| Manufacturer Product Nu. | LCC2-12-Q |
| Manufacturer Standard L. | 2 Weeks |
| Manufacturers Part Numb. | LCC2-12-Q |
| Material | Copper, Tin-Plated Copp. |
| Material/Composition | Copper |
| Max Conductor Range | 2 AWG |
| media | Yes |
| Mfr | Panduit Corp |
| Min Conductor Range | 2 AWG |
| Mounting | 2-Hole, 1.25 |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Number of Conductors | 1 |
| Number of Holes | 2, 2.0000 |
| Overall Length | 4.51 |
| Package | Bulk, 25 |
| Peep Hole | No |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| Product Type | Pan-Lug LCC2-12-Q Comp. |
| RoHS Compliant | Yes |
| RoHS Flag | Yes |
| Series | Pan-Lug? |
| Size | #2 AWG Code |
| Special Features | Consult cable manufactu. |
| Standard | CSA certified to C22.2 . |
| Standards | UL Listed, CSA Certifie. |
| Strip Length | 1-1/4 Inch |
| Stud Hole Spacing | 1.75 in., 1.75 |
| Stud Size | 42.767, 1/2 in, 1/2 Inc. |
| Stud/Tab Size | 1/2 Stud |
| sub brand | Pan-Lug |
| Sub Brand | Pan-Lug |
| Tab Thickness | 0.080" (2.03mm) |
| Temperature Rating | 194 deg F (90 deg C) |
| Terminal Style | Two Stud Holes |
| Terminal Type | Rectangular Tongue |
| Termination | Crimp, Barrel |
| Tongue Size | 0.75 Inch Width x 0.08 . |
| Tongue Type | Straight, Standard |
| Type | Tin-Plated Copper Compr. |
| UNSPSC | 39121405 - Cable or wir. |
| UPC | 074983902873, 074983902. |
| UPC Code | 074983902873 |
| Voltage Rating | 35 Kilo-Volt |
| Weight per each | 1 |
| Width | 3/4" |
| Width - Outer Edges | 0.750" (19.05mm) |
| Wire Gauge | 2 AWG |
