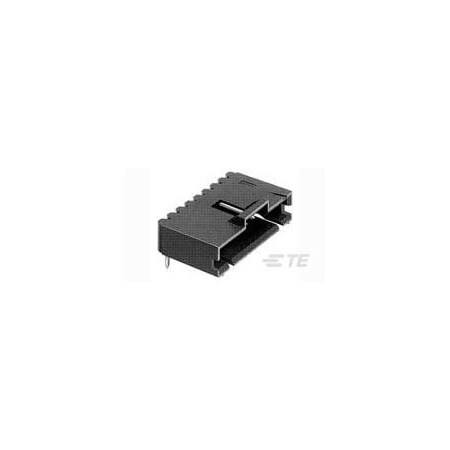

TE Connectivity 6-103635-5

mpn6-103635-5
brandname: TE Connectivity AMP Connectors
manufacturername: TE Connectivity AMP Connectors

TE Connectivity Part Number 6-103635-5

Brand: TE Connectivity
PartNumber: 6-103635-5
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Alternate Part No.	571-6-103635-5
Applications	Automotive, General Pur.
Base Product Number	103635
Brand	TE Connectivity / AMP
Category	Connectors, Interconnec.
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	15.0?in (0.38?m)
Contact Finish Thicknes.	100.0?in (2.54?m)
Contact Gender	Pin (Male)
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.130" (3.30mm)
Contact Material	Brass
Contact Plating	Gold
Contact Shape	Square
Contact Type	Male Pin
Country of Origin (subj.	Mexico
Current Rating	3 A
Current Rating (Amps)	3A
Description	CONN HEADER R/A 16POS 2.
Detailed Description	Connector Header Throug.
Digi-Key Part Number	A33889-ND
Fastening Type	Latch Holder
Features	Keying Slot
Flammability Rating	UL 94 V-0
Housing Material	Thermoplastic
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.200" (5.08mm)
Insulation Material	Thermoplastic
Insulation Resistance	5000 MOhms
Latching Type	Latched
Manufacturer	TE Connectivity AMP Con.
Manufacturer Part No.	6-103635-5
Manufacturer Product Nu.	6-103635-5
Manufacturer Standard L.	18 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	TE Connectivity AMP Con.
Mounting Angle	Right
Mounting Type	Through Hole, Right Ang.
Number of Positions	16
Number of Positions Loa.	All
Number of Rows	1
Operating Temperature	-65?C ~ 105?C
Operating Temperature R.	- 65 C to + 105 C
Overall Contact Length	-
Package	Tube
Packaging	Tube
Pitch	2.54 mm
Pitch - Mating	0.100" (2.54mm)
Product Category	Headers & Wire Housings
Product Status	Active
Product Type	Headers
Row Spacing	2.54 mm
Row Spacing - Mating	-
Series	AMPMODU MTE
Shrouding	Shrouded - 4 Wall
Style	Board to Board or Cable
Termination	Solder
Termination Style	Through Hole
Tradename	AMPMODU
Type	Shrouded
Voltage Rating	-

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Preferred Tier
Arrow	6-103635-5	1.237	1	302		TE Connectivity	1.237 @ 25
Waldom	TE CONNECTIVITY AMP BRAND 6-103635-5	1.72	36	1615		TE CONNECTIVITY/AMP BRAND	1.72 @ 36
us.rs-online.com	72048520	2.14	1728	25		TE Connectivity	2.14 @ 1728
Newark	19R3609	2.15	1728	25		AMP - TE CONNECTIVITY	2.15 @ 1000
Onlinecomponents.com	6-103635-5	2.16	1	3069		TE Connectivity / AMP Brand	2.16 @ 25
Digi-Key	1122453	2.229	1	1405		TE Connectivity AMP Connectors	2.229 @ 25
Zoro	G000939048	2.57	864	25		Te Connectivity	2.57 @ 864
swatee.com	6-103635-5	4.27	1	84		TE Connectivity	4.27 @ 25
AmazonTP	B07KWJCC65	43.28	1	25	1	TE Connectivity / AMP Brand	43.28 @ 25
Amazon	B07KWJCC65	43.28	1	25		TE Connectivity / AMP	43.28 @ 25
