Weg Electric 00336OT3E56CFL-S

B07BQ4H3D7

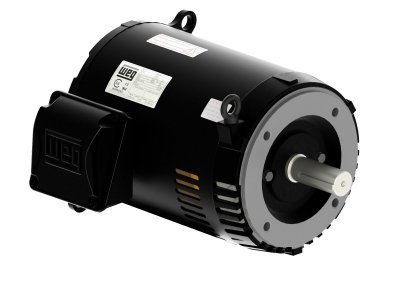

Weg Electric 00336OT3E56CFL-S, 3HP, 3600 RPM, 3PH, 208V,230V,460V, 56C Frame, C-Face Flange, Footless, Open, General Purpose Motor

Weg Electric 00336OT3E56CFL-S, 3HP, 3600 RPM, 3PH, 208V,230V,460V, 56C Frame, C-Face Flange, Footless, Open, General Purpose Motorzoom

Attributes

Key Value
Amperage Rating7.94 to 7.18/3.59 A
Application TypeGeneral Purpose AC Moto.
applications:Pumps, Compressors, Mac.
base rpm:3480 rpm
Bearing TypeBall
bearing type:Ball
ClassificationThree Phase
Comments60 Hz
CompositionSteel
ConditionNew
ConstructionRolled Steel
Description:MOTOR 3HP 2P 56C WCA2
Dimensions13.07 in L
Drive End Flange TypeC-Face
duty / condition type:Continuous Duty
EnclosureODP, IC01-ODP, Open
Enclosure TypeOpen Drip-Proof
enclosure type:ODP (Open Drip-Proof)
Estimated Weight42.00
Family SeriesWEG Electric Motors
FL Amps3.59
FL Efficiency85.5
FlangesC-Face Flange
Frame56C, 56, 56CFL
frame material:Rolled Steel
Frame RemarksRound Body, Footless
frame size:56C
Frequency60 Hz, 60//50 Hz
Frequency Rating60 Hz
frequency rating:60 Hz
full load current:7.94
full load efficiency:85.50 %
Gross Weight0 lbs
harmonization code:8501.52.4000
Hertz60
Horsepower3 hp
HP3
Hz60
Insulation ClassClass F
insulation class:F
ip rating:In Stock
Item ConditionFactory New
Item Number00336OT3E56CFL-S
ManufacturerWEG Electric, WEG, WEG .
Manufacturer Part Number00336OT3E56CFL-S
MaterialRolled Steel
MFG Part #:00336OT3E56CFL-S
Model12812241
motor horsepower:3.00 hp, 3 hp
motor phase:3 ph
motor poles:2-pole
motor supply voltage:208-230/460 V
MountingFootless (F-1), Footless
Mounting TypeC-Face Footless, Footle.
mounting type:Footless / C-Face Flange
NEMA Frame56C
Net Weight0 lbs
Nominal Voltage208 VAC
Number of Poles2
Number of Speeds1
Output Rating3 hp
overall length (c-dimen.13.07 in
Part Number00336OT3E56CFL-S
Phase3, 3 ph
Replaces00336OS3E56CFL-S, 00336.
RotationCW/CCW
RPM3600, 3400 - 3600, 3,60.
Service Factor1.15
service factor:1.15
shaft diameter:0.52 in
Speed3480 rpm
Speed (RPM)3600
StandardNEMA MG-1
standards met:CE, UL, CSA
Supplier:WEG ELECTRIC CORP
synchronous rpm:3600 rpm
Synchronous Speed3600rpm
Temperature Rating-20 to 40 deg C
Terminal BoxWithout Terminal Box
Torque Rating4.47 ft-lb
UPC:7909158821624
Voltage230/460//190-220/380-41.
Voltage (AC)208 VAC
Volts208-230/460*
volts @ frequency:208-230 / 460 V @ 60 Hz
warranty:18 months
Weight40.730000
weight:43 lbs

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com00336OT3E56CFL-S261.01In StockWEG38.1261.0 @ 1
kscdirect.comWEG 00336OT3E56CFL-S384.751In StockWEG ELECTRIC CORP384.75 @ 1
thumbzoomWalker Industrial00336OT3E56CFL-S384.751In Stock17WEG384.75 @ 1
thumbzoommotorsandcontrol.com00336OT3E56CFL-S384.751In StockWEG Electric42.0384.75 @ 1
thumbzoomMRO Supply2853300405.141In StockWEG405.14 @ 1
thumbzoomGalco00336OT3E56CFL-S-WEG421.351In StockWEG Electric421.35 @ 1
thumbzoommotionindustries.com06413789433.991In StockWEG Electric Corporation433.99 @ 1
thumbzoomindustrialrefrigerationparts.com00336OT3E56CFL-S448.821In StockWEG40.73448.82 @ 1
thumbzoomvfds.com00336OT3E56CFL-S513.01In StockWEG513.0 @ 1
thumbzoomDealers Electric00336OT3E56CFL-S534.71In StockWeg35.0534.7 @ 1
