WEG 02018OT3H256T-S

mpn02018OT3H256T-S
brandname: WEG
manufacturername: WEG

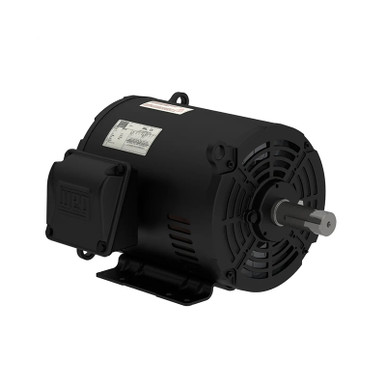

WEG 02018OT3H256T-S Severe Duty & General Purpose NEMA Premium High Efficiency Electric Motor, Cast Iron Frame, 20 HP, 3-Phase, 1770 RPM, 575 V, 60 Hz, Frame 254/6T

Brand: WEG
PartNumber: 02018OT3H256T-S
Model: 2690134
PackageQuantity: 1
Binding: Misc.
Manufacturer: WEG
Label: WEG

Attributes

Key	Value
Amperage Rating	20 A
Application Type	General Purpose AC Moto.
Bearing Type	Ball
CC Number	CC029A
Classification	Three Phase
Composition	Cast Iron
Condition	New
Construction	Cast Iron
Country of Origin (subj.	Multiple
Description:	MOTOR 20HP 4P 254/6T WC.
Dimensions	20.472 in L
Drive End Flange Type	Standard
Duty	Continuous
Duty Cycle	Continuous
Efficiency %	93 %
Enclosure	ODP, Open, Drip Proof, .
Enclosure Type	Open Drip-Proof
Estimated Weight	243.00
Family Series	WEG Electric Motors
FL Amps	19.7
FL Efficiency	93.0
Flanges	Without Flanges
Frame	254/6T, 256T, 254T
Frame Material	Rolled steel
Frame Remarks	Footed
Frequency	60 Hz
Frequency Rating	60 Hz
Full Load Amps	20.0
Green Certification or .	NEMA Premium Rated
Green Environmental Att.	Does not Contain Formal.
Gross Weight	0 lbs
Hertz	60
Horsepower	20 hp
HP	20
Hz	60
Ins. Class	F
Insulation Class	Class F
Inverter Rated	Yes
Item	General Purpose Motor
Item Condition	Factory New
Item Number	02018OT3H256T-S
Length Less Shaft	16 1/2 in
Manufacturer	WEG Electric, WEG, WEG .
Manufacturer Part Number	02018OT3H256T-S
Manufacturers Warranty .	3 yr
Material	Rolled steel
Max. Ambient Temp.	40 Degrees C
MFG Part #:	02018OT3H256T-S
Model	12770647
Motor Application	General Application
Motor Bearings	Ball
Motor Design	3-Phase
Motor Efficiency Group	NEMA Premium Efficient
Motor Enclosure Design	Open Dripproof
Motor Frame Material	Steel
Motor Mounting Type	Rigid Base
Motor Service Factor	1.15
Motor Shaft Design	Keyed
Motor Shaft Rotation	CW/CCW
Motor Thermal Protection	None
Mounting	Foot Mount, Foot-mounte.
Mounting Type	Footed, Foot Mount
Nameplate RPM	1,770
NEMA Design	None
NEMA Frame	254/6T
Net Weight	0 lbs
No. of Speeds	1
Nominal Efficiency	93 %
Nominal Voltage	575 VAC, 600 VAC
Number of Poles	4
Number of Speeds	1
Output Rating	20 hp
Overall Length	20 1/2 in
Part Number	02018OT3H256T-S
Phase	3, Three, 3 ph
Product Type	General Purpose
Rotation	CW/CCW
RPM	1,800 RPM, 1800
RPM Group	1701-1800
RPM Range	1,701-1,800
Service Factor	1.15
Shaft Dia.	1 5/8 in
Shaft Length	4 in
Shaft Size	1-5/8 in Dia x 4 in L
Speed	1770 rpm
Speed (RPM)	1800
Standard	NEMA MG-1
Standards	CSA (70014057), UL (E10.
Supplier:	WEG ELECTRIC CORP
Synchronous Speed	1800 rpm
Terminal Box	Left position
UPC:	7909158733415
Usable @ 200V	No
Usable @ 208V	No
Voltage	575V AC, 575V, 575 V
Voltage (AC)	575 VAC
Voltage Compatibility	575V AC
Volts	575
Weight	233.950000, 212 lb

All Prices

Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
Zoro	G3474661	1040.02	1	In Stock	15	Weg	243.0	1040.02 @ 1
MRO Supply	2520452	1319.04	1	In Stock	14	WEG	243.0	1319.04 @ 1
Walker Industrial	02018OT3H256T-S	1374.0	1	In Stock	17	WEG		1374.0 @ 1
kscdirect.com	WEG 02018OT3H256T-S	1374.0	1	In Stock		WEG ELECTRIC CORP		1374.0 @ 1
motorsandcontrol.com	02018OT3H256T-S	1374.0	1	In Stock		WEG Electric	243.0	1374.0 @ 1
Galco	02018OT3H256T-S-WEG	1504.68	1	In Stock		WEG Electric		1504.68 @ 1
industrialrefrigerationparts.com	02018OT3H256T-S	1552.03	1	In Stock		WEG	233.95	1552.03 @ 1
Radwell	02018OT3H256T-S	1650.0	1	In Stock		WEG		1650.0 @ 1
Dealers Electric	02018OT3H256T-S	1672.63	1	In Stock		Weg	243.0	1672.63 @ 1
Purvis	02018OT3H256T-S	1674.45	1	In Stock		WEG		1674.45 @ 1
vfds.com	02018OT3H256T-S	1832.0	1	In Stock		WEG		1832.0 @ 1
National Supply Network	B873433	2312.79	1	In Stock		Weg Electric Motors		2312.79 @ 1
motionindustries.com	06143555	2349.92	1	In Stock		WEG Electric Corporation		2349.92 @ 1
Raptor Supplies	AG3FAW	2355.709005	1	In Stock		WEG		2355.709005 @ 1
