Albion 16PD08201S

mpn16PD08201S
brandname: Albion
manufacturername: Albion

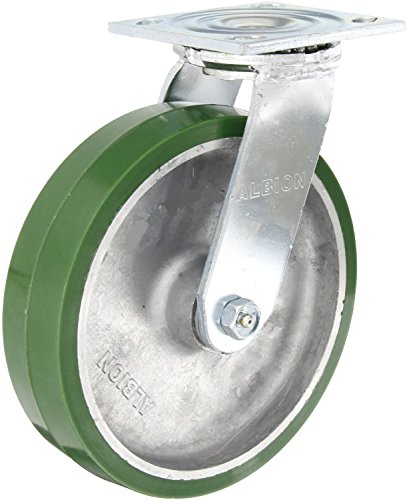

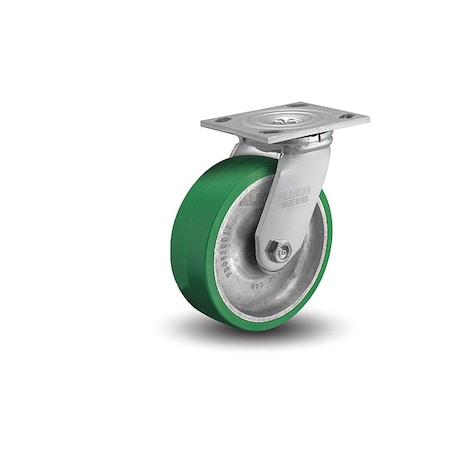

Albion 16PD08201S 4" Diameter Polyurethane on Aluminum Wheel Medium Heavy Duty Swivel Caster, Roller Bearing, 4-1/2" Length x 4" Width Base Plate, 1250 lb. Capacity Range

Albion 16PD08201S 4" Diameter Polyurethane on Aluminum Wheel Medium Heavy Duty Swivel Caster, Roller Bearing, 4-1/2" Length x 4" Width Base Plate, 1250 lb. Capacity Range

zoom

Brand: Albion
PartNumber: 16PD08201S
Model: ALB 16PD08201S
PackageQuantity: 1
Binding: Misc.
Manufacturer: Albion
Label: Albion

Attributes

Key	Value
Application	Shop/Distribution Carts.
Brand	Albion
Caster Brake Type	No Brake Included
Caster Frame Material	Steel
Caster Mounting Type	Plate
Caster Product Group	Swivel Caster
Caster Sub-Type	Swivel
Core Color	Grey
Country of Origin (subj.	United States
Features	Kingpin, Medium Heavy D.
For Axle Dia.	1/2 in
Frame Construction	Cold Formed
Frame Finish	Zinc
Hub Length	2 3/16 in
Includes Spanner Bushing	Yes
Includes Thread Guards	No
Inside Bolt Hole Spacing	2-5/8 in X 3 in
International Shipping	No
Item	Medium Duty Industrial .
Load Rating	1250 lb
Load Rating Range	1000 to 2999 lb
Mounting Bolt Dia.	3/8 in
Mounting Height	9-1/2 in
Mounting Plate Bolt Hol.	B
Mounting Plate Size	4 in X 4-1/2 in
Mounting Plate Thickness	1/4 in
Mpn	16PD08201S
Non-Marking	Yes
NSF Listed	Yes
Number of Mounting Holes	4
Number of Wheels	1
Operating Temperature R.	-40?F to 180?F
Outside Bolt Hole Spaci.	3 in X 3-5/8 in
Overall Wheel Width	2 in
SKU	ZO-G8661421
Standards	NSF Listed, RoHS Compli.
SubCategory	Material Handling
Swivel Construction	Kingpin
Swivel Lead	1 3/4 in
Swivel Lock Type	No Lock Included
Swivel Raceway Type	Double Ball
Swivel Radius	5 3/4 in
Tread Shape	Standard
UPC	N
Wheel Bearing Type	Roller
Wheel Core Material	Aluminum
Wheel Core Type	Solid
Wheel Dia.	8 in
Wheel Type	Polyurethane
Wheel Width	2 in
Wheel/Tread Color	Green
Wheel/Tread Hardness	60D
Wheel/Tread Hardness Ra.	Hard
Wheel/Tread Material	Polyurethane
With Toe Plate	No

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	National Supply Network	75947598	89.795	1	2		Albion		89.795 @ 2
	Zoro	G8661421	100.42	1	2		Albion	7.2	100.42 @ 2
	simsupply.com	ZO-G8661421	119.04	1	2		Albion		119.04 @ 2
