Boston Gear F713-30-B5-H

B01N6YZ2EL

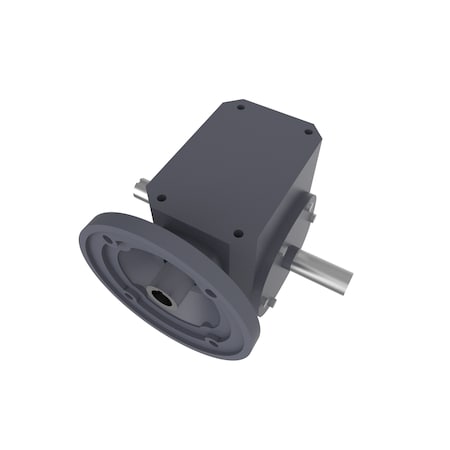

BOSTON GEAR F713-30-B5-H Speed Reducer,F71330B5H Double, 13 Lbs

BOSTON GEAR F713-30-B5-H Speed Reducer,F71330B5H Double, 13 Lbszoom

Attributes

Key Value
ApplicationMaterial Handling Conve.
Bearing TypeTapered Roller
Bore Dia.5/8"
Bore/Shaft Diameter0.625"
Center Distance1.3"
ColorGray
FeaturesBoston Gear's 700 Serie.
Gear Ratio30:1
Gear TypeWorm
Input Connection TypeF-Standard Quill Flange
Input Flange56C
Input RPM1750 RPM
Input Size56C
Input StyleQuill
Input TypeFlange
ItemSpeed Reducer
Maximum Input Speed1,750 RPM
Maximum Output Speed58.3 rpm
Mount Hole Center-to-Ce.3.25 in
Mount Hole Center-to-Ce.2 in
Nominal Output rpm58.3 rpm
Nominal Ratio30:1
OutputLeft & Right
Output Keyway Depth3/16 in
Output Keyway Width3/16 in
Output Shaft Diameter5/8 in
Output Shaft Length2 in
Output Shaft TypeKeyed
Output TypeSolid Output Shaft
Overall Height4.64 in
Overall Length6.07"
Paint/CoatingGray
Ratio30 to 1
ReductionSingle
Shaft ProjectionDouble
StandardsAGMA Service Class I

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply42587592.991In StockBoston Gear592.99 @ 1
thumbzoomcbtcompany.comF713-30-B5-H674.021In StockBoston Gear674.02 @ 1
thumbzoomZoroG1562596808.991In Stock10Boston Gear13.0808.99 @ 1
us.rs-online.com73598548890.121In StockBoston Gear (Altra)890.12 @ 1
