- mpn48237
- brandname: CHICAGO-LATROBE
- manufacturername: CHICAGO-LATROBE

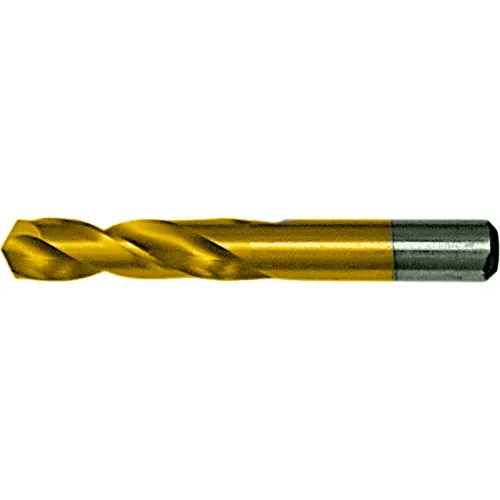

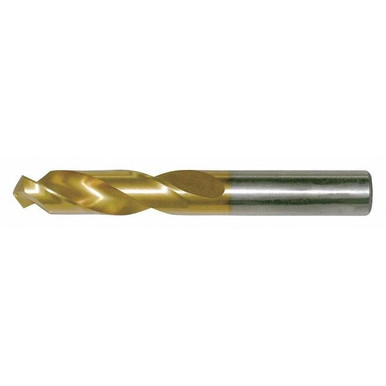

Chicago-Latrobe 48237 159-TN/2159 Heavy Duty Screw Machine Drill, F Drill - Letter, 0.257 in Drill - Decimal Inch, HSS, TiN Coated (12 Each)
- Brand: Chicago Latrobe
- PartNumber: 48237
- PackageQuantity: 12
- Manufacturer: Greenfield
- Label: Greenfield
Attributes
| Key | Value |
|---|
| Applicable Materials | Alloy Steel, Carbon Ste. |
| Bit Dia. | F |
| Brand | Chicago-Latrobe |
| Current Stock | 30 |
| Cutting Depth | 1-7/16 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.2570 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.2570" |
| Diameter (Wire/Let) | F |
| Drill Bit Dimension Type | Letter |
| Drill Bit Finish | TiN |
| Drill Bit Grouping | Drill Bit |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees |
| Drill Bit Size | F |
| Drill Construction | Heavy-Duty |
| Drill Diameter Measurem. | Imperial |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Length Class | Screw Machine Length |
| Drill Point Length | 0.0000 |
| Drill Size - Decimal In. | 0.257 in |
| Drill Size - Letter | F |
| Drill Size System | Letter |
| Drill Style | Screw Machine Drill |
| Drilling Length | 1-7/16" |
| Finish | TiN Coated |
| Flute Length | 1 7/16 in, 1-7/16 in, 1. |
| Flute Length (Metric) | 36.51mm |
| Flute Type | Right Spiral, Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| International Shipping | No |
| Item | Screw Machine Drill Bit |
| Material | HSS, High Speed Steel |
| Maximum Drilling Depth | 1 7/16 in |
| Mpn | 48237 |
| Number of Flutes | 2 |
| Overall Length | 2.6250", 2 5/8 in, 2-5/. |
| Overall Length (Metric) | 66.67mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Series | 159-TN/2159 |
| Shank Configuration | Straight |
| Shank Dia. | 1/4 in |
| Shank Length | 1 3/16 in, 1.1875" |
| Shank Length (Metric) | 30.16mm |
| Shank Size | 0.2570", 0.257 in Dia x. |
| Shank Size (Metric) | 6.53mm |
| Shank Type | Straight |
| Sizes Included | F |
| SKU | ZO-G2991989 |
| Style | 159-TN |
| SubCategory | Machining |
| Surface Condition | TiN |
| Tool Size | F |
| Type | Heavy Duty |
| UPC | 662355482377 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | MRO Supply | 6129922 | 4.59 | 8 | 12 | | Chicago-Latrobe | | 4.59 @ 12 |
 | Megadepot | 48237 | 4.72 | 1 | 12 | | Chicago-Latrobe | | 4.72 @ 12 |
 | heavydutydepot.com | 48237 | 4.72 | 22 | 12 | | Chicago-Latrobe | | 4.72 @ 22 |
 | Global Industrial | WBB2546660 | 4.9155 | 12 | 12 | | Chicago-Latrobe | | 4.9155 @ 12 |
 | Zoro | G2991989 | 5.09 | 1 | 31 | | Chicago-Latrobe | 0.36 | 5.09 @ 12 |
 | usmegastore.com | 48237 | 5.36 | 1 | 12 | | Chicago-Latrobe | | 5.36 @ 12 |
 | bscsource.com | 48237 | 6.79 | 1 | 12 | | Chicago-Latrobe | | 6.79 @ 12 |
 | National Supply Network | 6131635 | 8.1325 | 1 | 12 | | Chicago-Latrobe | | 8.1325 @ 12 |
 | Guardian | 06131635 | 10.15 | 1 | 12 | | Chicago-Latrobe | | 10.15 @ 12 |
 | simsupply.com | ZO-G2991989 | 12.0 | 1 | 30 | | Chicago-Latrobe | | 12.0 @ 12 |
