- mpnC23864
- brandname: Cle-Line
- manufacturername: Cle-Line

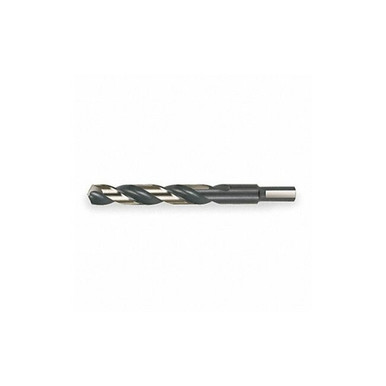

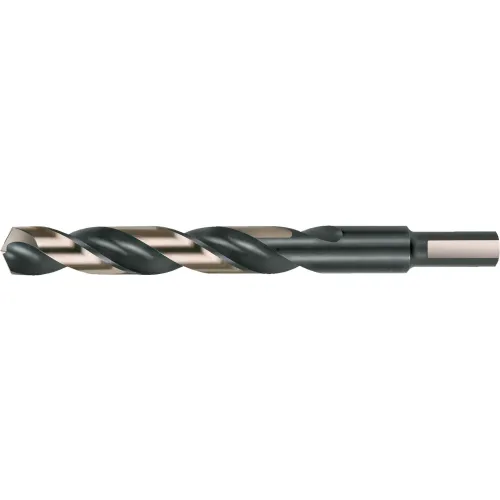

Mechanics Drill, 3/8 Shank, 31/64, Hss
- Brand: Cle-line
- PartNumber: C23864
- Model: C23864
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
| Key | Value |
|---|
| Applicable Materials | Low Carbon/Stainless St. |
| Application | For Alloy, Stainless An. |
| Brand | Cle-Line |
| Color | Black Oxide |
| Coolant Fed | Non-Coolant Through |
| Current Stock | 9 |
| Cutting Depth | 3-1/4 in |
| Cutting Direction | Right Hand |
| Cutting Edge Material | HSS |
| Decimal Equivalent | 0.4844 |
| Depth x Dia. Ratio | 4xD |
| Depth:Dia. Ratio | 4xD |
| Diameter | 0.4844" |
| Diameter (Fraction) | 31/64" |
| Drill Bit Dimension Type | Fractional Inch |
| Drill Bit Finish | Black/Gold |
| Drill Bit Grouping | Drill Bit, Individual |
| Drill Bit Material | High Speed Steel |
| Drill Bit Point Angle | 135 Degrees, 135 Degre. |
| Drill Bit Point Type | Split point |
| Drill Bit Size | 31/64 in |
| Drill Construction | Heavy-Duty |
| Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
| Drill Size - Decimal In. | 0.4844 in |
| Drill Size - Fraction | 31/64 in |
| Drill Size System | Fractional |
| Drill Style | Mechanics Length Drill |
| Finish | Black/Gold |
| Finish - Machining | Black Oxide |
| Flute Length | 3-1/4 in, 3 1/4 in, 3.2. |
| Flute Length (Metric) | 82.55mm |
| Flute Type | Spiral |
| Hand of Cut | Right |
| Hand of Spiral | Right |
| Helix Angle | 28 Degrees |
| International Shipping | No |
| Item | Reduced Shank Drill Bit |
| Lead Time | Expected to ship in 1-2. |
| List Number | 1876 |
| Material | HSS, High Speed Steel |
| Material - Machining | High Speed Steel |
| Material Grade - Machin. | Heavy Duty |
| Maximum Drilling Depth | 1 15/16 in |
| Measurement System | Fractional Inch, Imperi. |
| Mpn | C23864 |
| Number of Flutes | 2 |
| Number of Pieces | 1 |
| Overall Length | 4.8750", 4-7/8 in, 4 7/. |
| Overall Length (Metric) | 123.82mm |
| Point Angle | 135 deg, 135? |
| Point Style | Split |
| Point Type | Split |
| Point type | Split point |
| Primary Material Applic. | Cast Iron, Steel |
| Primary Material Applic. | K, P |
| Series | 1876 |
| Shank Configuration | Reduced |
| Shank Dia. | 1/2 in |
| Shank End Feature | Reduced |
| Shank End Feature Length | 1.0000" |
| Shank Length | 1 in, 1.6250" |
| Shank Length (Metric) | 41.27mm |
| Shank Size | 3/8 in, 0.3750" |
| Shank Size (Metric) | 9.52mm |
| Shank Type | Round with Flats, Reduc. |
| Shank Type - Machining | Straight with Three Fla. |
| Silver & Deming Drill | Yes |
| SKU | ZO-G3411475 |
| Spiral Direction | Right Hand |
| Standards | ASME B94.11M |
| Style | 1876 |
| SubCategory | Machining |
| Surface Condition | Black & Gold |
| Tool Size | 31/64" |
| Type | Heavy Duty |
| UPC | 697334238645 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | Global Industrial | WBB2544006 | 8.9 | 6 | 6 | | Cle-Line | | 8.9 @ 6 |
 | MRO Supply | 6125113 | 10.12 | 4 | 6 | | Cle-Line | | 10.12 @ 6 |
 | Zoro | G3411475 | 10.59 | 1 | 26 | | Cle-Line | 0.16 | 10.59 @ 6 |
 | Megadepot | C23864 | 10.68 | 1 | 6 | | Cle-Line | | 10.68 @ 6 |
 | usmegastore.com | C23864 | 10.68 | 1 | 6 | | Cle-Line | | 10.68 @ 6 |
 | heavydutydepot.com | C23864 | 10.85 | 10 | 6 | | Cle-Line | | 10.85 @ 10 |
 | sustainablesupply.com | C1465326 | 14.92 | 1 | 6 | | Cle-Line | 0.16 | 14.92 @ 6 |
| grainger.ca | GNFC23864 | 15.47418392 | 1 | 6 | | CLE-LINE | 0.162 | 15.47418392 @ 6 |
 | simsupply.com | ZO-G3411475 | 18.46 | 1 | 9 | | Cle-Line | | 18.46 @ 6 |
