- mpn8282-5SG-315
- brandname: Conxall
- manufacturername: Conxall

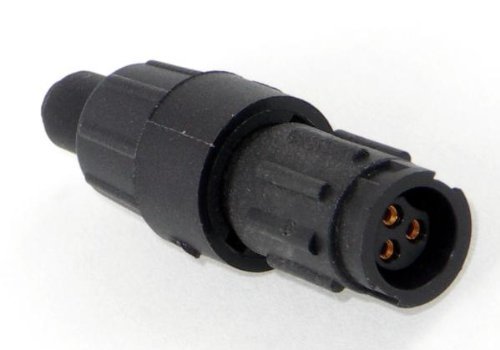

Standard Circular Connector Mini-CON CBL-CBL #20 Solder
- Brand: Conxall
- PartNumber: 8282-5SG-315
- Model: 8282-5SG-315
- PackageQuantity: 1
- Manufacturer: CONXALL
- Label: CONXALL
Attributes
| Key | Value |
|---|
| Alternate Part No. | 502-8282-5SG-315 |
| Applications | Automotive, Communicati. |
| Backshell Material, Pla. | Polyamide (PA), Nylon |
| Base Product Number | 8282-5SG |
| Brand | Conxall / Switchcraft |
| Cable Opening | 0.150" ~ 0.170" (3.81mm. |
| Category | Connectors, Interconnec. |
| Color | Black |
| Connector Type | Receptacle, Female Sock. |
| Contact Finish - Mating | Gold |
| Contact Finish Thicknes. | - |
| Contact Gender | Socket (Female) |
| Contact Material | Brass |
| Contact Plating | Gold |
| Current Rating | 4.8 A to 13 A |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Features | Backshell |
| Ingress Protection | Weathertight, IP 67 |
| Insert Material | - |
| Manufacturer | Switchcraft |
| Manufacturer Part No. | 8282-5SG-315 |
| Material Flammability R. | - |
| Mfr | Conxall/Switchcraft |
| Mounting Feature | - |
| Mounting Style | Wire |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Operating Temperature | -40?C ~ 115?C |
| Orientation | Keyed |
| Package | Bulk |
| Primary Material | Plastic |
| Product Category | Standard Circular Conne. |
| Product Status | Active |
| Product Type | Connectors |
| Series | Mini-Con-X?, Mini-Con-X |
| Shell Finish | - |
| Shell Material | Polyamide (PA), Nylon |
| Shell Size - Insert | - |
| Shell Size, MIL | - |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Termination Style | Solder Cup |
| Tradename | Mini-Con-X |
| Voltage Rating | 600V, 600 V |
| Wire Gauge | 24-20 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Hawk Electronics | 8282-5SG-315 | 9.3 | 100 | In Stock | | Conxall | | 9.3 @ 100 |
| Digi-Key | 3515569 | 15.73 | 1 | In Stock | | Conxall/Switchcraft | | 15.73 @ 1 |
| Newark | 10J4897 | 16.82 | 100 | In Stock | | SWITCHCRAFT/CONXALL | | 16.82 @ 1 |
 | swatee.com | 8282-5SG-315 | 19.41 | 1 | 2 | | Switchcraft | | 19.41 @ 1 |
