Hubbell HBL24CM21

B00NGHCXRW

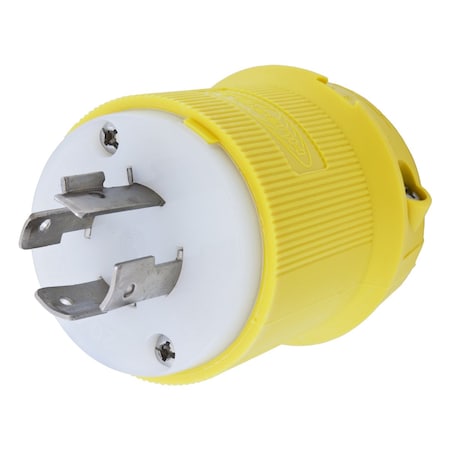

Hubbell HBL24CM21 Locking Plug, Composite, 20 amp, 3 Phase, 250V, L15-20P

Hubbell HBL24CM21 Locking Plug, Composite, 20 amp, 3 Phase, 250V, L15-20Pzoom

Attributes

Key Value
Additional FeaturesCorrosion Resistant
Amperage20 A
Amperage Rating20A, 20
ApplicationExtra Heavy Duty Indust.
ApprovalsCSA, UL
AWG Range#16 AWG to #8 AWG
Body TypeStraight
BrandTwist-Lock
Cable range0.350 - 1.150 in
Cable Range0.350 - 1.150 in.
ColorYellow
Color FamilyYellow
ConnectivityPressure Terminal Screws
Cord dia35 in-1.15 in
Cord Diameter0.35 to 1.15
Cord range0.350 in-1.150 in (9-29)
Cord typeAll Listed Portables
Corrosion ResistantYes
Country of OriginUS - United States
Country of Origin (subj.United States
Current / amperage rati.20 A
Current Rating20 A
Current rating20 A
Dielectric strengthWithstands 2,000V minim.
Dimenions2.33 in. x 2.33 in. x 2.
Dimensions2.33 in Dia x 2.75 in L.
Display TypeStandard Sized
ECCNEAR99
EnclosureIP20
Environmental conditionsIndoor Dry Unless Prote.
Family SeriesHubbell Plugs & Recepta.
GradeMarine
Gross Weight0.35 lbs
Height2.75 in
Horsepower3
HP3
Isolated GroundNo
Item NumberHBL24CM21
Length2.33 in
ManufacturerHubbell
Manufacturer Part NumberHBL24CM21
MaterialBrass/Clear Polycarbona.
Material - mounting har.Cord Mounted
Max HP3
NEMA ConfigurationL15-20P
Nema RatingL15-20P
NEMA RatingNEMA L15-20P
Net Weight0.35 lbs
No. of Poles3
No. of Wires4
Number of poles3-Pole
Number of Poles3
Number of wires4-Wire
Number of Wires4
Operating temperatureMaximum continuous 75C .
Phase3, Three phase
Rated Voltage250V ac
StandardListed to UL 498;Fed.Sp.
Temperature Rating (Deg.-40 to 75
Terminal TypeScrew
TypePlugs, 3-Phase Corrosio.
UNSPSC39121402
Voltage250 VAC
Voltage Rating250
Voltage rating descript.250 VAC
WatertightNo
Width (in)2.33
Wire size#16 AWG to #8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomKelly HayesHBL24CM2136.48129Hubbell Wiring Device-Kellems36.48 @ 1
Onlinecomponents.comHBL24CM2138.511In StockHubbell38.51 @ 1
thumbzoomZoroG20070206043.451In Stock25Hubbell Wiring Device-Kellems43.45 @ 1
thumbzoomstandardelectricsupply.com10006149.211In StockHubbell49.21 @ 1
thumbzoomMRO Supply102092249.211In StockHubbell Wiring49.21 @ 1
thumbzoomgordonelectricsupply.comHBL24CM2149.961In StockHUBBELL49.96 @ 1
thumbzoomGalcoHBL24CM21-HBBL50.661In StockHubbell0.3550.66 @ 1
Graybar8812635051.0721In StockHubbell Wiring Device - Kellems51.072 @ 1
thumbzoomcbtcompany.comHBL24CM2153.821In StockHubbell Wiring Device-Kellems53.82 @ 1
steinerelectric.com28670756.951In StockHubbell Wiring Device-Kellems56.95 @ 1
thumbzoomRadwellHBL24CM2165.01In StockHUBBELL KELLEMS65.0 @ 1
us.rs-online.com7198753965.561In StockHubbell Wiring Device-Kellems65.56 @ 1
Newark14C498067.871In StockHUBBELL WIRING DEVICES67.87 @ 1
thumbzoomUnited Electric15620470.421In StockWIRING DEVICE-KELLEMS70.42 @ 1
kirbyrisk.com484720103.611In StockHubbell103.61 @ 1
