Hubbell HBL24CM23

B00NGHCTLW

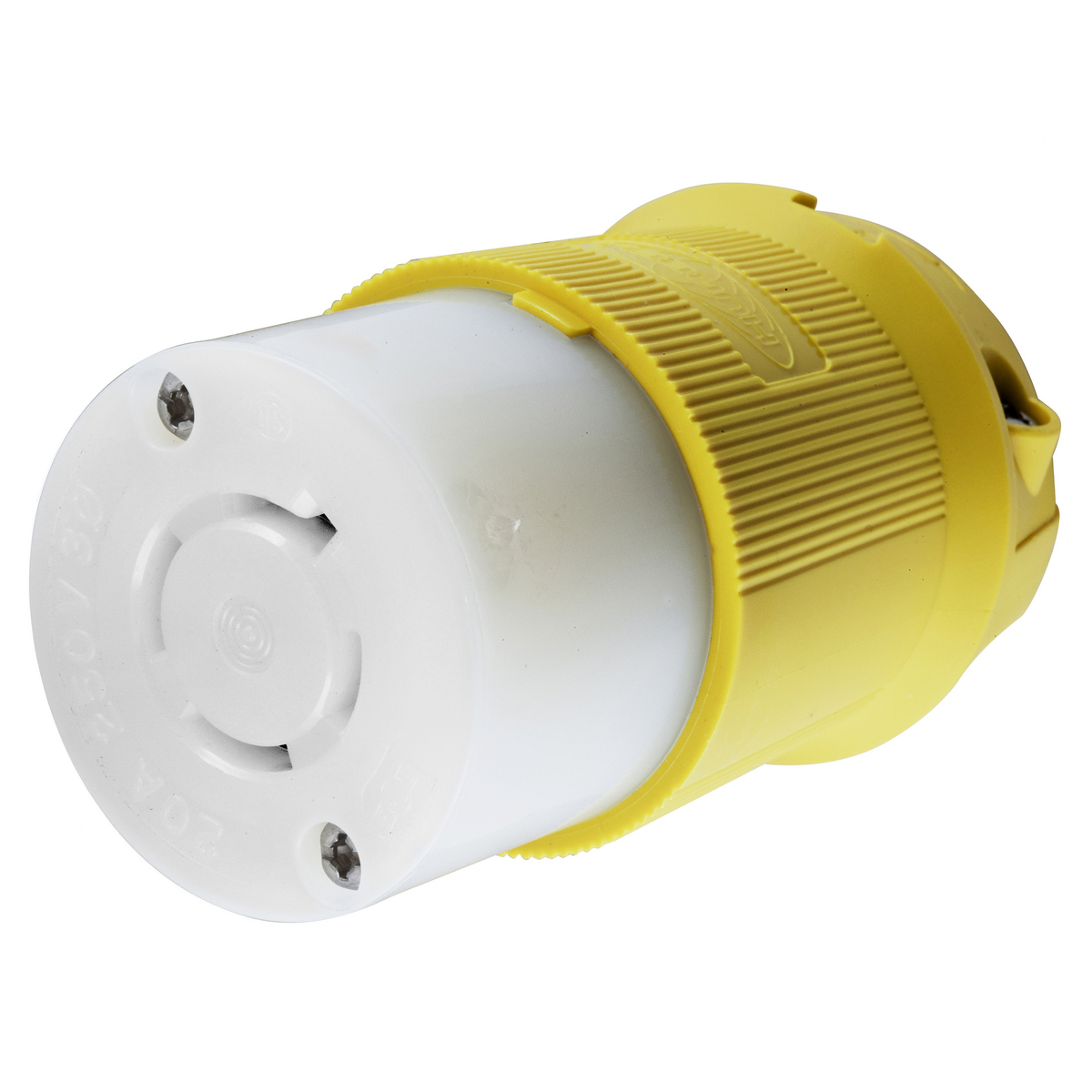

Hubbell HBL24CM23 Locking Connector, Composite, 20 amp, 3 Phase, 250 V, L15-20R, Yellow

Hubbell HBL24CM23 Locking Connector, Composite, 20 amp, 3 Phase, 250 V, L15-20R, Yellowzoom

Attributes

Key Value
Amperage20 A
Amperage Rating20
ApplicationHeavy Duty Industrial
ApprovalsCSA, UL
Body TypeStraight
BrandHubbell Wiring Device -.
Cable range0.350 - 1.150 in
Catalog NumberHBL24CM23
ColorYellow
Conductor Range#12AWG to #10AWG
ConnectionPressure Screw Terminal
ConnectivityBack Wired Screw Termin.
Cord dia35 in-1.15 in
Cord Diameter0.35 to 1.15
Cord range0.350 in-1.150 in (9-29)
Corrosion ResistantYes
Country of OriginUnited States
Country of Origin (subj.United States
Current / amperage rati.20 A
Current Rating20 A
Current rating20 A
Dielectric strengthWithstands 2,000V minim.
Dimensions2.33 in x 2.33 in x 3.8.
EnclosureIP20
Environmental ConditionsIndoor Dry Unless Prote.
Environmental conditionsIndoor Dry Unless Prote.
Family SeriesHubbell Plugs & Recepta.
Gross Weight0.4 lbs
GTIN00783585038506
Height3.86 in
Horsepower3
InsulationInsulated Body
Isolated GroundNo
Item NumberHBL24CM23
Item TypeConnector Body
Length2.33 in
Made in USAYes
ManufacturerHubbell Wiring Device-K.
Manufacturer Part NumberHBL24CM23
MaterialComposite, Nylon
Material - mounting har.Cord Mounted
Max HP3
MountingCord
NEMA ConfigurationL15-20R
Nema RatingL15-20R
NEMA Rating5, L15-20R/WD1/WD5
Net Weight0.4 lbs
Number of Conductors4-Wire Grounding
Number of poles3-Pole
Number of Poles3
Number of wires4-Wire
Number of Wires4
Operating temperatureMaximum continuous 75C .
Phase3, Three phase
Size2.33 in x 2.33 in x 3.8.
Special FeaturesCorrosion Resistant
StandardListed to UL 498;Fed.Sp.
Sub BrandTwist-Lock
Temperature RatingMaximum Continuous: 75?.
Temperature rating-40 C w/o impact, -25 w.
Temperature Rating (Deg.-40 to 75
Terminal TypePressure Screw
Type3-Phase Heavy Duty Isol.
UPC783585038506
Voltage250 VAC
Voltage Rating250 VAC Delta, 250
Voltage rating descript.250 VAC
WatertightNo
Width (in)2.33
Wire size#16 AWG to #8 AWG

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.comHBL24CM2348.261In StockHubbell48.26 @ 1
thumbzoomKelly HayesHBL24CM2350.08131Hubbell Wiring Device-Kellems50.08 @ 1
thumbzoomZoroG30070211356.811In Stock25Hubbell Wiring Device-Kellems56.81 @ 1
thumbzoomstandardelectricsupply.com9988967.571In StockHubbell67.57 @ 1
thumbzoomMRO Supply102092467.571In StockHubbell Wiring67.57 @ 1
thumbzoomGalcoHBL24CM23-HBBL69.561In StockHubbell0.469.56 @ 1
us.rs-online.com7198754073.831In StockHubbell Wiring Device-Kellems73.83 @ 1
thumbzoomcbtcompany.comHBL24CM2373.891In StockHubbell Wiring Device-Kellems73.89 @ 1
thumbzoomRadwellHBL24CM2385.01In StockHUBBELL KELLEMS85.0 @ 1
Newark14C498193.191In StockHUBBELL WIRING DEVICES93.19 @ 1
thumbzoomcrescentelectric.com19545095.941In StockHubbell Wiring Device - Kellems95.94 @ 1
kirbyrisk.com484721142.261In StockHubbell142.26 @ 1
