V150ZA20P

mpnV150ZA20P
brandname: Littelfuse Inc.
manufacturername: Littelfuse Inc.

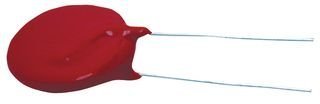

Littelfuse V150ZA20P Metal Oxide Varistor, 127V 250V Rad

Littelfuse V150ZA20P Metal Oxide Varistor, 127V 250V Rad

zoom

PartNumber: V150ZA20P
PackageQuantity: 500
Manufacturer: Littelfuse
Label: Littelfuse

Attributes

Key	Value
Alternate Part No.	576-V150ZA20P
Approvals	UR, VDE
Brand	Littelfuse
Capacitance	1000 pF
Capacitance @ Frequency	3500 pF @ 1 MHz
Case Diameter	20 mm
Category	Circuit Protection
Clamping Voltage	250 V
Current - Surge	6.5 kA
Current Rating	100 A
Description	VARISTOR 150V 6.5KA DIS.
Detailed Description	150 V 6.5 kA Varistor 1.
Diameter	20 mm
Digi-Key Part Number	F1940-ND
Dimensions	20 mm Dia. x 5 mm H
Energy	45J
Energy (Joules)	45 J
Family Series	Littelfuse Metal Oxide .
Gross Weight	0 lbs
Item Number	V150ZA20P
Lead Type	Straight(Bulk)
Manufacturer	Littelfuse Inc., Littel.
Manufacturer Part No.	V150ZA20P
Manufacturer Part Number	V150ZA20P
Manufacturer Product Nu.	V150ZA20P
Manufacturer Standard L.	12 Weeks
Marking on Part	P150Z20
Max Applied Voltage DC	127 VDC
Max Applied Voltage RMS	95 Vrms
Max Clamping Amps	100 A
Max Clamping Volts	250 V
Maximum AC Volts	95 V
Maximum DC Volts	127 V
Mfr	Littelfuse Inc.
Mounting	Radial
Mounting Type	Through Hole
Net Weight	0 lbs
Number of Circuits	1
Operating Temperature	-55?C ~ 85?C (TA)
Operating Temperature R.	- 55 C to + 85 C
Package	Bulk
Package / Case	Disc 20mm
Packaging	Bulk
Part Status	Active
Peak Current	6,500 A
Peak Surge Current	6.5 kA
Product	MOV
Product Category	Varistors
Product Series	ZA
Product Status	Active
Series	ZA
Surge Energy Rating	45 J
Termination Style	Radial
Typical Capacitance (pf)	3,500 pF
Varistor Voltage	135 V to 165 V
Varistor Voltage (Max)	165 V
Varistor Voltage (Min)	135 V
Varistor Voltage (Typ)	150 V
Voltage Rating AC	95 V
Voltage Rating DC	127 V

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	TME	V150ZA20P	0.304	1500	10		LITTELFUSE		0.304 @ 1500
	TTI	V150ZA20P	0.409	100	575		Littelfuse		0.409 @ 100
	Newark	58K7301	0.413	1500	10		LITTELFUSE		0.413 @ 1500
	Future Electronics	9025424	0.426	1500	10		Littelfuse		0.426 @ 1500
	Galco	V150ZA20P-LF	0.46	1500	10		Littelfuse		0.46 @ 1500
	Mouser	576-V150ZA20P	0.749	1	1044		Littelfuse		0.749 @ 10
	Hotenda	H615858	0.833	1	2385		Littelfuse		0.833 @ 10
	Digi-Key	1009285	0.9564	1	88		Littelfuse Inc.		0.9564 @ 10
	swatee.com	V150ZA20P	1.97	1	664		Littelfuse		1.97 @ 10
