Lovejoy 68514476278

mpn68514476278
brandname: LOVEJOY
manufacturername: LOVEJOY

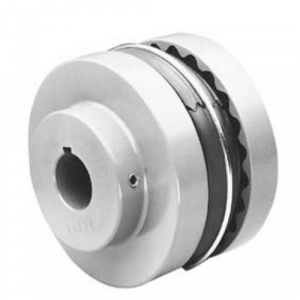

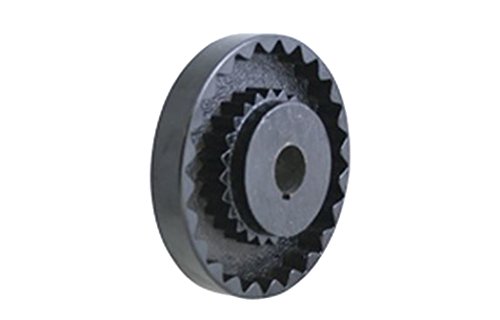

Lovejoy 68514476278 Cast Iron 13S Flange, 4-7/16" Bore, 1.75" OD, 1" x 1/2" Keyway, 11350 Inch Pounds Item Torque

Lovejoy 68514476278 Cast Iron 13S Flange, 4-7/16" Bore, 1.75" OD, 1" x 1/2" Keyway, 11350 Inch Pounds Item Torque

zoom

Brand: Lovejoy
PartNumber: 68514476278
Model: LOV 13S 4-7/16 FLANGE KEYWAY
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
Bore Size	4 7/16 in
Bore Type	Finished Bore
Color	Gray
Coupling Size	13S
Coupling Type	S-Flex
Cubic inches	604.71375 in?
Keyway Size (W x D)	1 x 1/2 in
Material	Cast Iron
Max. Bore (Dimension ID)	4.500 in
Max. Speed	2400.00 rpm
Nominal Torque (with EP.	11350 in?lb
Rated HP at 1,200 rpm	216.00 hp
Rated HP at 1,800 rpm	324.00 hp
Rated HP at 100 rpm	18.00 hp
Thread (Dimension T)	5/8-11
Torsional Stiffness	43350.00 in?lb/rad
Type	Coupling Flange
Weight	45.20 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Megadepot	68514476278	268.3	1	In Stock		Lovejoy	45.2	268.3 @ 1
	usmegastore.com	68514476278	268.3	1	In Stock		Lovejoy	45.2	268.3 @ 1
	heavydutydepot.com	68514476278	268.3	1	In Stock		Lovejoy		268.3 @ 1
