Lovejoy 68514476390

B004QWZOGS

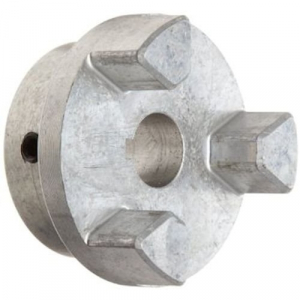

Lovejoy 76390 Size AL100 Jaw Coupling Hub, Aluminum, Metric, 15 mm Bore, 64.262 mm OD, 34.798 mm Length Through Bore, 5 mm x 2.3 mm Keyway, 2 Setscrew

Lovejoy 76390 Size AL100 Jaw Coupling Hub, Aluminum, Metric, 15 mm Bore, 64.262 mm OD, 34.798 mm Length Through Bore, 5 mm x 2.3 mm Keyway, 2 Setscrewzoom

Attributes

Key Value
# of Jaws3
Bore Size15 mm
ColorSilver
Coupling SizeAL100
Coupling TypeJaw
Cubic inches13.56991 in3
Dimension G0.750 in (19.05 mm)
Dimension SL0.440 in (11.18 mm)
Elastomeric MemberSOX (NBR) Rubber
Hub Length2.120 in (53.85 mm)
Hub Style1
Keyway Size (W x D)5 x 2.3
Length thru Bore1.370 in (34.80 mm)
MaterialAluminum
Max. Bore (Dimensions I.1.375 in (35.00 mm)
Max. Speed7000.00 rpm
Min. Bore (Dimensions I.0.500 in (13.00 mm)
Moment of Inertia (Soli.1.207 lb-in2
Nominal Torque417.00 in-lb (47.11 N-m)
Outside Diameter2.410 in (61.21 mm)
Overall Length3.50 in (88.90 mm)
Rated HP at 1,200 rpm7.92 hp
Rated HP at 1,800 rpm11.90 hp
Rated HP at 100 rpm0.66 hp
Rated HP at 3,600 rpm23.76 hp
Weight0.62 lb
Weight (Complete Coupli.1.50 lb
Weight - Solid1.10 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomheavydutydepot.com6851447639047.113In StockLovejoy47.11 @ 3
thumbzoomusmegastore.com6851447639047.41In StockLovejoy0.6247.4 @ 1
thumbzoomMegadepot6851447639054.491In StockLovejoy0.6254.49 @ 1
thumbzoomRaptor SuppliesAJ2XNH81.17547751In StockLOVEJOY81.1754775 @ 1
