Lovejoy 68514476401

mpn68514476401
brandname: LoveJoy
manufacturername: LoveJoy

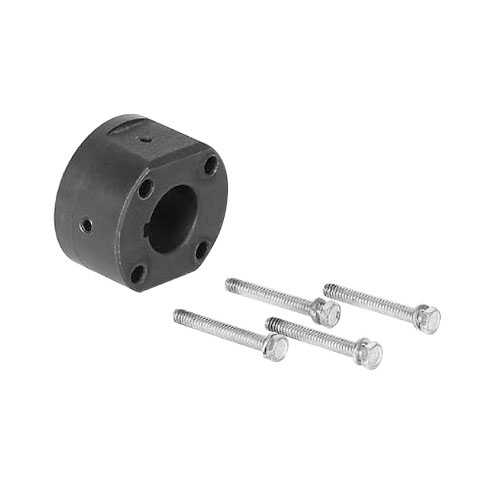

Lovejoy 68514476401 Cast Iron 6SCH Spacer Hub, 27MM Bore, 8 x 3.3MM Keyway, 2.5" OD, 50.84 Newton Millimeters Item Torque

Lovejoy 68514476401 Cast Iron 6SCH Spacer Hub, 27MM Bore, 8 x 3.3MM Keyway, 2.5" OD, 50.84 Newton Millimeters Item Torque

zoom

Brand: Lovejoy
PartNumber: 68514476401
Model: LOV 6SCH 27mm SPACER HUB KEYWAY
PackageQuantity: 1
Binding: Misc.
Manufacturer: Lovejoy
Label: Lovejoy

Attributes

Key	Value
# of Cap Screws Required	4
Bore Size	27.00 mm
Bore Type	Finished Bore
Cap Screw Required Size	1/4 - 1-3/4
Color	Gray
Coupling Type	Coupling Hubs, S-Flex
Cubic inches	7.62500 in3
Dimension L	1.220 in (30.99 mm)
Dimension SL	0.630 in (16.00 mm)
Hub #	6SCH
Keyway Size (W x D)	8 x 3.3 mm
Material	Cast Iron
Max. Bore	1.375 in (34.93 mm)
Max. Speed	6000 rpm
Nominal Torque (with EP.	450 in-lb (50.84 N-m)
Outside Diameter	2.500 in (63.50 mm)
Rated HP at 1,200 rpm	8.60 hp
Rated HP at 1,800 rpm	12.90 hp
Rated HP at 100 rpm	0.70 hp
Rated HP at 3,600 rpm	25.70 hp
Thread (Dimension T)	5/16-18
Torsional Stiffness	1718.00 in-lb/rad
Weight	1.43 lb

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	usmegastore.com	68514476401	135.1	1	In Stock		Lovejoy	1.43	135.1 @ 1
	Megadepot	68514476401	147.4	1	In Stock		Lovejoy	1.43	147.4 @ 1
	heavydutydepot.com	68514476401	147.4	1	In Stock		Lovejoy		147.4 @ 1
	Radwell	68514476401	170.0	1	In Stock		LOVEJOY		170.0 @ 1
