Mitutoyo 329-350-30

B016C04L6K

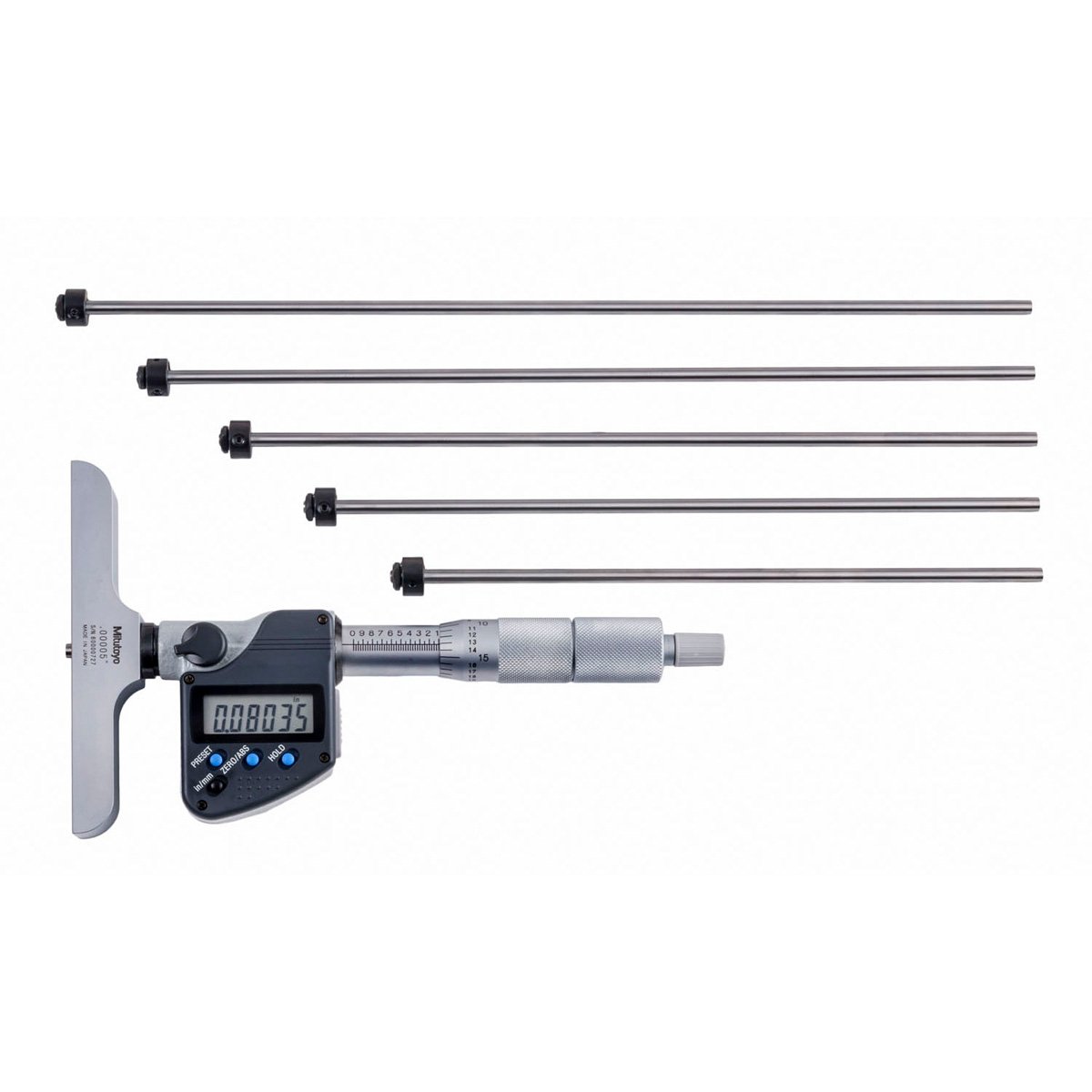

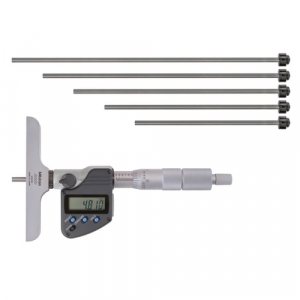

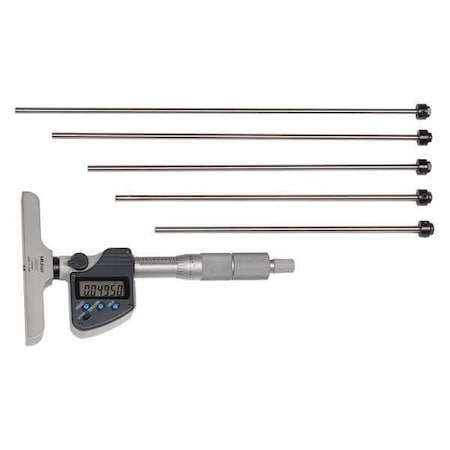

Mitutoyo 329-350-30 DMC4-6"MX Depth Micrometer, Interchangeable Rod, 0"-6", 0.00005"/0.001 mm

Mitutoyo 329-350-30 DMC4-6"MX Depth Micrometer, Interchangeable Rod, 0"-6", 0.00005"/0.001 mmzoom

Attributes

Key Value
Accuracy?.00015", +/-0.00015 in
accuracy.00015" / 3?m
Accuracy (in)+/-0.00012 in
Accuracy Tolerance?0.00015
AnvilFlat
Anvil MaterialSteel
Anvil typeFlat
Base flatness (in)0.00008 in
Base flatness (mm)2 ?m
Base Length4", 4 in
Base StyleFull
Battery SizeSR44
Battery TypeSR44
BrandMitutoyo
Case materialPlastic case
Case part number04MZA093
Comment0.157 in dia. rods
Contact point diameter .0.157 in
Contact point diameter .4 mm
Contact point flatness .0.00001 in
Contact point flatness .0.3 ?m
Coolant ResistantNo
Country of OriginJapan
DescriptionsRatchet Stop
Dimension TypeInch/Metric
Display Resolution0.00005 in
Display typeLCD
Features?4mm Interchangeable Ro.
Graduations0.001 in
gtinupc603908598930
Inch-Metric:Inch/Metric
IncludesBattery, key spanner, a.
Individual or setIndividual
ItemDepth Micrometer
Item Weight2.00 lbs per EA
Length (in)4 in (base)
Lock Nut TypeSelector Knob
Long Form Calibration C.No
Manual99MAB040M
MaterialHardened steel
Maximum Measurement6.000, 152.4
Measurement TypeInch/Metric
Measuring range0 to 6 in
Mechanical or digitalDigimatic
Micrometer TypeElectronic
Minimum Measurement0
Model Number329-350-30
Number of Gauges1
Number of Measuring Rods6
Number of Rods6
OutputY, Yes
Parrallelism (in)[0.00016 + (0.00004 x R.
Part 1 accuracy (mm)+/-3 ?m
Power source938882 SR44 battery
Primary (OD) contact po.Hardened steel
Primary measuring range.0 in
Primary measuring range.0mm
Primary measuring range.6 in
Primary measuring range.152.4 mm
Product manual329-351 99MAB022M2
Product ModelDepth gauge
Product typeDepth Micrometer
Range0 to 6"/0 to 152.4mm, 0.
Resolution.00005"/.001mm, 0.00005.
Resolution or graduatio.0.00005 in
Resolution or graduatio.0.001 mm
Rod Dia.0.157 in
Rod Diameter4 mm
Rod TypeInterchangeable
Rotating Spindle (Yes/N.Yes
Series329
Shipping height (in)2
Shipping length (in)14
Shipping weight (lbs)3
SKU329-350-30
SPC cable 4005CZA662
SPC cable 8005CZA663
SPC OutputYes
Special OfferNew
SpindleFlat
Spindle diameter0.157 in
Spindle MaterialSteel
Spindle typeFlat
Spinning width (in)8.5
ThimbleRatchet
Thimble diameter18.3 mm
Thimble typeRatchet
Thimble TypeRatchet Stop
TypeImperial/metric interch.
typeDigital
UPC6.03909E+11
US harmonized tariff sc.9017.30.4000
Width (in)0.63 In (Base)

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonB016C04L6K438.331In StockMitutoyo438.33 @ 1
AmazonTPB016C04L6K550.311In Stock10Mitutoyo550.31 @ 1
thumbzoomNational Supply Network87130597560.861In StockMitutoyo560.86 @ 1
Grainger4GPY7588.01200MITUTOYO588.0 @ 1
thumbzoomprimebuy.com329-350-30611.01In StockMitutoyo611.0 @ 1
thumbzoomMisumi USA329-350-30628.131In Stock102MITUTOYO628.13 @ 1
thumbzoomunbeatablesale.comQLLR6593632.321In StockMITUTOYO632.32 @ 1
thumbzoomimsbolt.com329-350-30636.931In StockMITUTOYO636.93 @ 1
tmttoolbox.com329-350-30656.61In Stockmitutoyo656.6 @ 1
GuardianMITUTOYO329-350-30670.01In StockMitutoyo670.0 @ 1
thumbzoomjensentools.com10139498670.01In StockMitutoyo670.0 @ 1
thumbzoomfreertool.comFTS-MT80329-350-30675.341In StockMitutoyo675.34 @ 1
thumbzoomZoroG2695646685.991In StockMitutoyo2.65685.99 @ 1
reidsupply.comMI-32935030690.0311Mitutoyo690.03 @ 1
KBC Tools1-808-329350697.01In StockMITUTOYO2.0697.0 @ 1
thumbzoomMRO Supply6226234770.111In StockMitutoyo3.0770.11 @ 1
thumbzoombscsource.com32935030868.191In StockMitutoyo868.19 @ 1
