Omron LY2-0-DC24

B00HPLUU2A

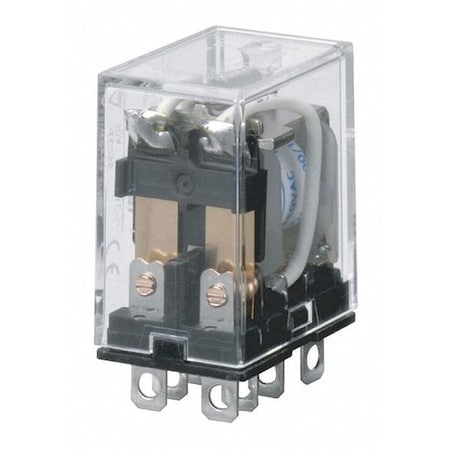

Omron Industrial Automation Relay, Dpdt, 120Vac, 28Vdc, 15A - LY2-0-DC24

Omron Industrial Automation Relay, Dpdt, 120Vac, 28Vdc, 15A - LY2-0-DC24zoom

Attributes

Key Value
AC Contact Rating - Rel.10A @ 120V, 10 A @ 120V
Alternate Mfr Part Numb.LY20DC24
ApplicationLong dependable service.
Base Product NumberLY2-0-DC
Base Type - Plug In Rel.Square
Body Depth1.41 in
Body Depth - Relay1.10 in, 1.1 in
Body Height1.1 in
Body Height - Relay1.42 in
Body Width0.85 in
Body Width - Relay0.85 in
CategoryRelays
Coil Current36.9mA, 36.9 mA
Coil Insulation-
Coil Resistance650 Ohms
Coil TypeNon Latching
Coil Voltage24VDC, 24 VDC
Coil Volts24V DC
Contact Current Rating10 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - RelayDPDT
Contact MaterialAgCdO, Silver Alloy
Contact Rating (Current)10A, 10 A
Contact Resistance50 mOhms
Contact Voltage Rating300
Control Voltage24
Current Rating10 A
DC Contact Rating - Rel.10 A @ 24V, 10A @ 24V
DescriptionRELAY GEN PURPOSE DPDT .
Detailed DescriptionGeneral Purpose Relay D.
Dielectric Rating2000/1000 VAC
Digi-Key Part NumberZ977-ND
Dimensions1.42 L x 0.85 W x 1.10 .
Dropout Voltage2.4 V
FeaturesArc Barrier Equipped, H.
Flat Pin Width0.196 in
FunctionGeneral Purpose
HP @ 120VNot Rated
HP @ 240VNot Rated
ItemGeneral Purpose Relay
Item - RelayGeneral Purpose Relay
Lead Free Status / RoHS.RoHS Compliant
ManufacturerOmron Automation and Sa.
Manufacturer Part NumberLY2-0-DC24
Manufacturer Product Nu.LY2-0-DC24
Manufacturer Standard L.26 Weeks
Maximum Operating Tempe.55 C
MfrOmron Automation and Sa.
Minimum Operating Tempe.-25 C
Mounting - RelayPrinted Circuit Board
Mounting Hole Diameter0.1 in
Mounting TypeThrough Hole
Must Operate Voltage19.2 VDC
Must Release Voltage2.4 VDC
Number of Pins8
Number of Pins - Relay8
Operate Time25ms, 25 ms
Operating Temperature-25, -25?C ~ 55?C
Overall Depth1.67 in
Overall Height - Relay1.59 in
PackageBulk
PackagingBulk Pack
Power Consumption - Rel.0.9 W
Power Rating1100 VA ; 240 W
Primary TypePower Relays
Product StatusActive
Push To TestManual
Relay TypeElectromechanical, Gene.
Release Time25ms, 25 ms
Seal Rating-
SeriesLY Series, LY
Standard Package50
StandardsUL ; CSA ; SEV, UL, CSA.
Status IndicatorNo
Switching Voltage250VAC, 125VDC - Max
TerminationPCB
Termination StylePC Pin
Voltage Rating250 ; 125 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomComponent Electronics710-24V-726.151In StockOmron Electronics6.15 @ 1
iodPartsLY2-0-DC246.3150150Omron6.31 @ 50
Onlinecomponents.comLY20DC247.031377OMRON INDUSTRIAL7.03 @ 1
thumbzoomZoroG28142538.391144Omron0.18.39 @ 1
thumbzoomCarlton Bates Company403123482019.131In StockOMRON9.13 @ 1
ArrowLY2-0-DC249.39812Omron9.398 @ 1
Mouser653-LY2-0-DC2410.01298Omron10.0 @ 1
grainger.caWWG5ZH4110.110477581In StockOMRON0.110.11047758 @ 1
thumbzoomsustainablesupply.comC120764111.931In StockOmron0.111.93 @ 1
thumbzoomDigi-Key20708913.82118830Omron Automation and Safety13.82 @ 1
Master ElectronicsLY20DC2413.941762Omron Automation13.94 @ 1
thumbzoomNewark35K320613.941252OMRON INDUSTRIAL AUTOMATION13.94 @ 1
us.rs-online.com7017880314.68137Omron Automation14.68 @ 1
Airline HydraulicsOMRON LY2-0-DC2415.6112000Omron15.61 @ 1
thumbzoomRaptor SuppliesAE7MMA16.4697391In StockOMRON16.469739 @ 1
RS Delivers828-724619.1521469Omron19.152 @ 1
AmazonTPB000E26UW620.711In Stock2Omron20.71 @ 1
AmazonSCB00LQPTWHU674.991In StockOMRON INDUSTRIAL AUTOMATION674.99 @ 1
