- mpnPANLCA1-38-E
- brandname: Panduit
- manufacturername: Panduit

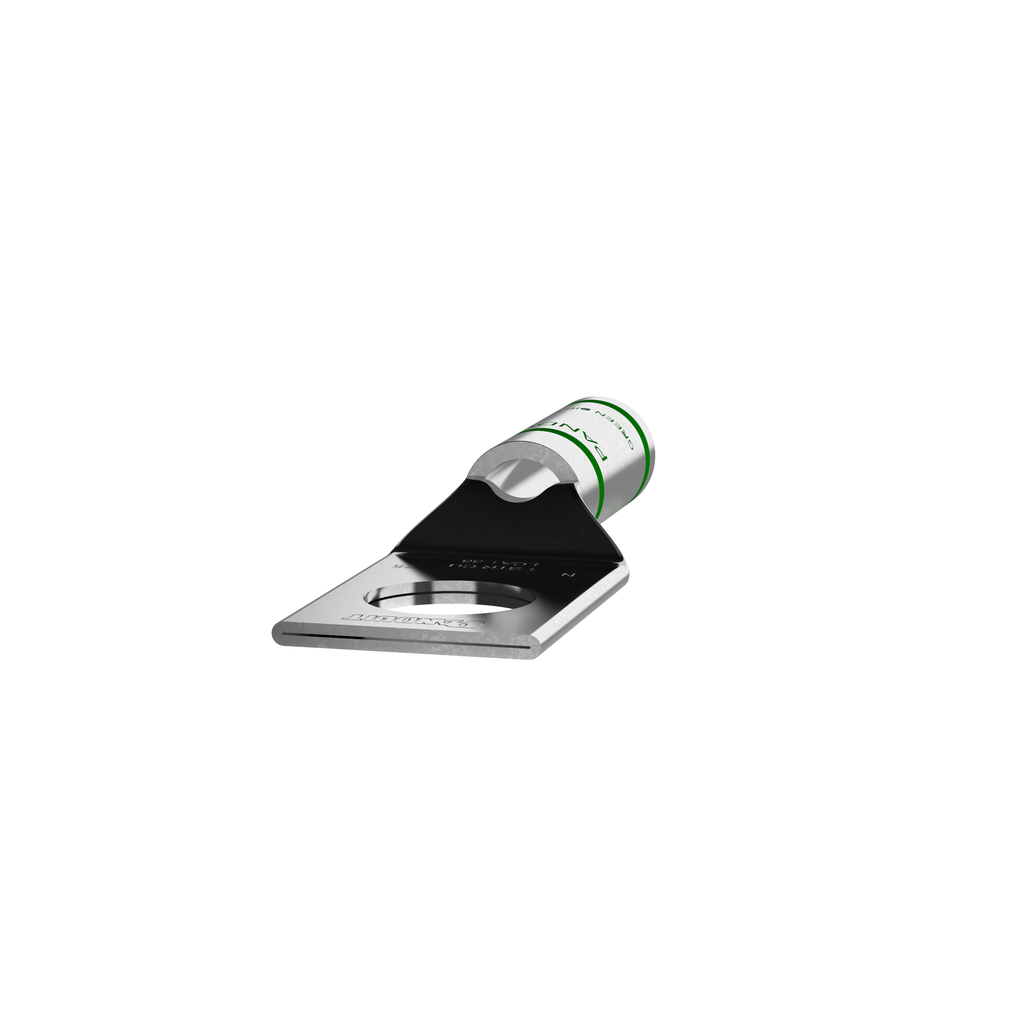

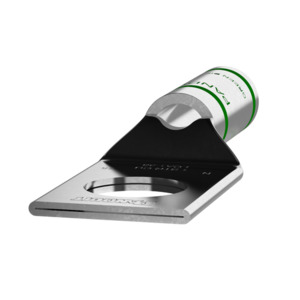

Panduit LCA1-38-E Copper Compression Lug, 1 Hole, #1 AWG, 3/8-Inch Stud,Green
- Brand: Panduit
- PartNumber: LCA1-38-E
- Model: LCA1-38-E
- Color: Green
- Size: Conductor Size/Range 1 #14 - #10 AWG STR/#12 - #10 AWG SOL
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 1 |
| Alternate Part No. | 644-LCA1-38-E |
| Angle | Straight |
| Approvals | CSA, UL |
| ARRA Compliant | Y |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Barrel Type | Standard Barrel with In. |
| Base Material | Copper |
| Base Product Number | LCA1 |
| Brand | Panduit, Pan-Lug? |
| Burndy Die Index Number | 11 |
| Buy American Compliant | Y |
| Cable Size | 1 AWG |
| California Pro65 Cancer | No |
| Catalog Number | LCA1-38-E |
| Category | Connectors, Interconnec. |
| Color | Green |
| Color Code | Green, Color Code |
| Color Family | Green |
| Connection Material | Tin |
| Connection Type | 1 x Terminal |
| Connector Type | Standard Barrel |
| Contact Finish | Electro-Tin |
| Contact Material | Copper, Seamless Copper |
| Contact Plating | Electro-Tin, Electro Tin |
| Copper Code Conductor S. | 1 |
| Country of Origin | MX - Mexico, Mexico |
| Country of Origin (subj. | Mexico |
| Country of Origin 2Digit | MX |
| Diameter - Barrel ID | 0.360" (9.14mm) |
| Diameter - Barrel OD | 0.470" (11.94mm) |
| Diameter - Ring ID | 0.410" (10.41mm) |
| Die Color | Green |
| Die Type | P37 |
| EAN | 00074983900213 |
| ECCN | EAR99 |
| Family Series | Panduit Terminals, Pan-. |
| Features | - |
| Finish | Tin-Plated |
| Finish/Coating | Tin-Plated |
| Gender | Female |
| Gross Weight | 0.99 lbs |
| GTIN Package | 00074983900213 |
| Hazardous Material Flag | N |
| Hole Size | 3?8 |
| Inside Diameter (In.) | 0.36 |
| Inside Diameter (mm) | 9.14 |
| Insulation | Non-Insulated, Not Insu. |
| Insulation Type | Non-Insulated |
| Item | Lug Compression Connect. |
| Item Number | LCA1-38-E |
| Item Type | Copper Compression Conn. |
| Lead Content Indicator | N |
| Length | Length, 1.99", 1.99 in |
| Length - Overall | 1.990" (50.55mm) |
| Lug Type | 1 Stud Hole Lug |
| Lug Wire Size | 1 AWG |
| Made in USA | No |
| Manufacturer | Panduit |
| Manufacturer Part No. | LCA1-38-E |
| Manufacturer Part Number | LCA1-38-E |
| Material | Copper, Material, Tin-P. |
| Material/Composition | Copper |
| Max Conductor Range | 1 AWG |
| Maximum Voltage (kV) | 35 |
| Mercury Content Indicat. | No |
| Mfr | Panduit Corp |
| Min Conductor Range | 1 AWG |
| Min Order Qty | 20 |
| Min. Order UOM | Piece |
| Mounting | 15/16, 1-Hole |
| Mounting Angle | Straight |
| Mounting Method | Wire |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0.04 lbs |
| Number of Conductors | 1 |
| Number of Holes | 1 |
| Outer Diameter | 0.47 in. |
| Outer Diameter (In.) | 0.47 |
| Outer Diameter (mm) | 11.93 |
| Overall Length | 1.99 " |
| Overall Length (In.) | 1.99 |
| Overall Length (mm) | 50.5 |
| Overall Width | 0.70 " |
| Package | Bulk |
| Package Quantity | 20 |
| Pallet Quantity | 0 |
| Pallet Volume | 0.000000 |
| Pallet Weight | 0.0000 |
| Panduit Die Index Number | P37 |
| Product | Lug Terminals |
| Product Category | Terminals |
| Product Segment | IEI |
| Product Series | Pan-Lug Compression |
| Product Status | Active |
| Product Type | Copper Compression Conn. |
| REACH Status | False |
| Restricted Use of Hazar. | N |
| RoHS Compliant | Compliant, Yes |
| Series | Pan-Lug LCA Series, Pan. |
| Size | #1 AWG Code |
| Special Features | Standard Barrel, Consul. |
| Standard | C22.2 No. 65-13, 486A-4. |
| Standard Carton Volume . | 0.0000 |
| Standard Carton Weight . | 0.0000 |
| Standard Package Volume. | 0.0184 |
| Standard Package Weight. | 0.9900 |
| Standards Met | C22.2 No. 65-13, 486A-4. |
| Std Ctn Qty | 0 |
| Std Package Height In | 3.35 |
| Std Package Height MM | 85.09 |
| Std Package Length In | 4.65 |
| Std Package Length MM | 118.11 |
| Std Package Width In | 3.35 |
| Std Package Width MM | 85.09 |
| Std. Pkg. Qty. | 20 |
| Std. Pkg. UOM | Piece |
| Strip Length | 15?16" |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Size | Stud Size, 3/8 in, 3/8 . |
| Stud/Tab Size | 3/8 in, 3/8 Stud |
| Style | One-Hole |
| Sub Brand | Pan-Lug, Pan-Lug? |
| T & B Die Index Number | 11 |
| Tab Thickness | 0.110" (2.79mm) |
| Terminal Style | Single Stud Hole |
| Terminal Type | Lug, Grounding |
| Termination | Crimp, Barrel, Crimp |
| Termination Style | Crimp |
| Tongue Angle | Straight |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.7 |
| Tongue Width (mm) | 17.8 |
| Type | Compression Lug, 1 Hole |
| UL Temperature Rating (. | 90 |
| Unit Weight | 449.056 g |
| UNSPSC | 39121405 |
| UOM EA PK | PK |
| UPC | 074983900213, 074983900. |
| UPC Code | 074983900213 |
| Volts AC | 600 |
| Width | 0.7" |
| Width - Outer Edges | 0.700" (17.78mm) |
| Wire Gauge | 1, 1 AWG |
| Wire Size | Wire Size, 1 AWG |
| Wire Strip Length (In.) | 15/16 |
| Wire Strip Length (mm) | 23.6 |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
 | cbtcompany.com | LCA1-38-E | 3.53 | 1 | 5 | | PANDUIT | | 3.53 @ 5 |
 | mayerelectric.com | PANLCA138E | 5.29 | 1 | 5 | | PANDUIT | 0.99 | 5.29 @ 5 |
 | alldataresource.com | LCA1-38-E | 5.31 | 1 | 5 | | Panduit | | 5.31 @ 5 |
 | NEP Electronics | LCA1-38-E | 5.5 | 1 | 20 | | Panduit | | 5.5 @ 5 |
 | mecampbell.com | PANLCA1-38-E | 5.64 | 20 | 5 | 151 | Panduit | | 5.64 @ 20 |
| Digi-Key | 2263547 | 6.36 | 1 | 375 | | Panduit Corp | | 6.36 @ 5 |
 | Newark | 90B7381 | 6.78 | 1 | 5 | | PANDUIT | | 6.78 @ 5 |
| Onlinecomponents.com | LCA1-38-E | 6.98 | 1 | 47 | | PANDUIT | | 6.98 @ 5 |
| Hotenda | H1650831 | 7.01 | 1 | 5 | | Panduit | | 7.01 @ 5 |
 | Zoro | G0771467 | 8.22 | 1 | 5 | 26 | Panduit | 0.99 | 8.22 @ 5 |
 | Platt.com | 0017759 | 8.35 | 1 | 5 | | Panduit | | 8.35 @ 5 |
 | Galco | LCA1-38-E-PNDT | 8.45 | 1 | 12 | | Panduit | 0.99 | 8.45 @ 5 |
 | swatee.com | LCA1-38-E | 8.81 | 1 | 6 | | Panduit | | 8.81 @ 5 |
 | crescentelectric.com | 100254 | 8.93 | 1 | 5 | | Panduit | | 8.93 @ 5 |
| us.rs-online.com | 70044014 | 138.71 | 1 | 5 | | Panduit | | 138.71 @ 5 |
 | Carlton Bates Company | 07498390021 | 147.8 | 1 | 5 | | PANDUIT | | 147.8 @ 5 |
 | gordonelectricsupply.com | LCA1-38-E | 165.0 | 1 | 5 | 12 | PANDUIT | | 165.0 @ 5 |
 | jensentools.com | 10016317 | 172.42 | 1 | 5 | | Panduit | | 172.42 @ 5 |
| steinerelectric.com | 7045 | 396.07 | 1 | 5 | | Panduit | | 396.07 @ 5 |
 | turtle.com | PAN LCA1-38-E | 924.47 | 1 | 5 | | Panduit | | 924.47 @ 5 |
| Graybar | 88198125 | 1024.5536 | 1 | 5 | | Panduit | | 1024.5536 @ 5 |
