- mpnPV10-10RX-L
- brandname: Panduit
- manufacturername: Panduit

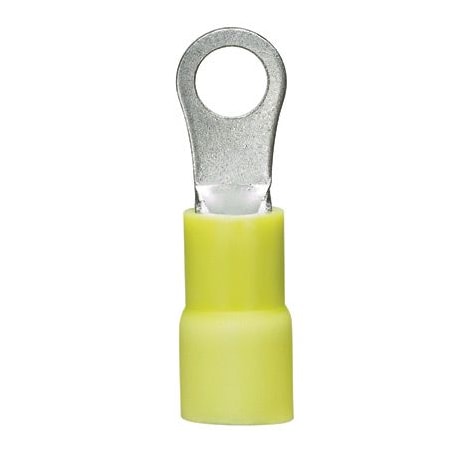

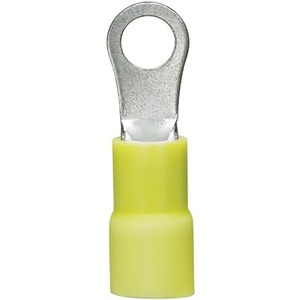

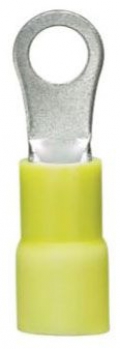

Panduit PV10-10RX-L Ring Terminal, Expanded Vinyl Insulation, 12 - 10 AWG, #10 Stud Size, Yellow (50-Pack)
- Brand: Panduit
- PartNumber: PV10-10RX-L
- Model: PV10-10RX-L
- Color: Yellow
- Size: 50-Pack
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Panduit
- Label: Panduit
Attributes
| Key | Value |
|---|
| Allowable Gauge Range | 12 - 10 |
| Approvals | CSA, UL |
| AWG Range | #10 |
| Base Product Number | PV10 |
| Brand | Pan-Term? |
| Brand Name | Panduit |
| Category | Connectors, Interconnec. |
| Color | Yellow |
| Color Family | Yellow |
| Connector Details | 1 x Ring Terminal |
| Connector Plating | Tin |
| Contact Finish | Tin |
| Contact Material | Copper |
| Country of Origin | MX - Mexico |
| Country of Origin (subj. | Mexico |
| ECCN | EAR99 |
| Environmental Certifica. | RoHS |
| Environmentally Friendly | Yes |
| Family Series | Panduit Terminals, Pan-. |
| Features | Brazed Seam, Serrated T. |
| Finish | Tin-Plated |
| Gross Weight | 0 lbs |
| Insulated | Insulated |
| Insulation | Insulated |
| Insulation Color | Yellow |
| Insulation Diameter | 0.250" (6.35mm) |
| Insulation Material | Vinyl |
| Insulation Type | Vinyl |
| Item | Ring Terminal |
| Item Number | PV10-10RX-L |
| Length | 1.1 |
| Length - Overall | 1.100" (27.94mm) |
| Manufacturer | Panduit Corp, Panduit |
| Manufacturer Part Number | PV10-10RX-L |
| Manufacturer Website Ad. | http://www.panduit.com |
| Material | Copper, Vinyl, Copper, . |
| Material - Insulation | Vinyl |
| Max Temp | 221 ?F |
| Mfr | Panduit Corp |
| Mounting Type | Free Hanging (In-Line) |
| Net Weight | 0 lbs |
| Outer Diameter | 0.3 in. |
| Package | Bulk |
| Package Quantity | 50 |
| Packaged Quantity | 50 |
| Packaging | 50 Per Package |
| Part Status | Active |
| Plating Material | Tin |
| Product Name | Terminal Connector |
| Product Series | Pan-Term Terminals |
| Product Type | Terminal Connector |
| Rated Voltage | 1000V |
| RoHS Compliant | Yes |
| Series | Pan-Term? |
| Stud Size | #10 |
| Stud/Tab Size | 10 Stud |
| Terminal Material | Copper |
| Terminal Type | Ring, Circular |
| Termination | Crimp |
| Thickness | 0.040" (1.02mm) |
| UNSPSC | 39121409 |
| UPC Code | 074983801725 |
| Use With | CT-100, CT-1550, CT-155. |
| Volts | 600 V |
| Width | 0.3, 0.31 in. |
| Width - Outer Edges | 0.310" (7.87mm) |
| Wire Gauge | 10-12 AWG |
| Wire Range | 12 to 10 AWG |
| Wire Size | 12-10 AWG |
| Wire Size (AWG) | 10 AWG, 11 AWG, 12 AWG |
| Wire Strip Length | 0.313 " |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | PV10-10RX-L | 0.82 | 1 | 50 | | Panduit | | 0.78 @ 51 |
 | French Gerleman | PANDPV1010RXL | 0.91 | 1 | 50 | | Panduit | | 0.91 @ 50 |
 | Galco | PV10-10RX-L-PNDT | 0.96 | 50 | 50 | | Panduit | | 0.96 @ 50 |
| us.rs-online.com | 71263960 | 1.06073 | 2 | 152 | | Panduit | | 1.06073 @ 50 |
 | Platt.com | 0615950 | 1.12 | 1 | 300 | | Panduit | | 1.12 @ 50 |
| Digi-Key | 452038 | 1.1204 | 1000 | 50 | | Panduit Corp | | 1.1204 @ 50 |
 | PCNation | 6TX007 | 40.57 | 1 | 50 | | PANDUIT | 1.0 | 40.57 @ 50 |
 | Zoro | G0789481 | 42.44 | 1 | 50 | 23 | Panduit | 0.24 | 42.44 @ 50 |
 | electricalparts.com | PV10-10RX-L | 43.6576 | 1 | 50 | | Panduit | | 43.6576 @ 50 |
 | Carlton Bates Company | 07498380172 | 46.0 | 1 | 50 | | PANDUIT | | 46.0 @ 50 |
 | gordonelectricsupply.com | PV10-10RX-L | 50.05 | 1 | 50 | 12 | PANDUIT | | 50.05 @ 50 |
 | alldataresource.com | PV10-10RX-L | 51.89 | 1 | 50 | | Panduit | | 51.89 @ 50 |
 | Newark | 94F5723 | 60.96 | 1 | 50 | | PANDUIT | | 60.96 @ 50 |
| Graybar | 88200595 | 85.12 | 50 | 50 | | Panduit | | 85.12 @ 50 |
| steinerelectric.com | 196233 | 122.04 | 1 | 50 | | Panduit | | 122.04 @ 50 |
