Square D 2510-FG1P

B01EK903SK

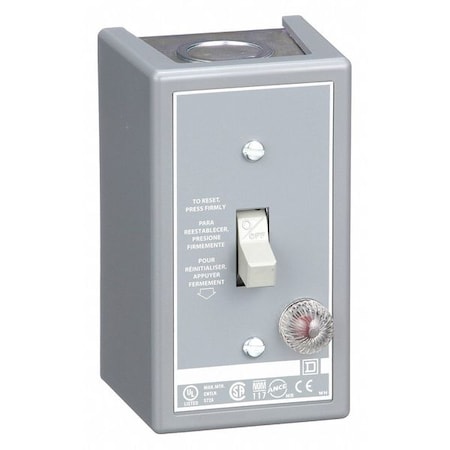

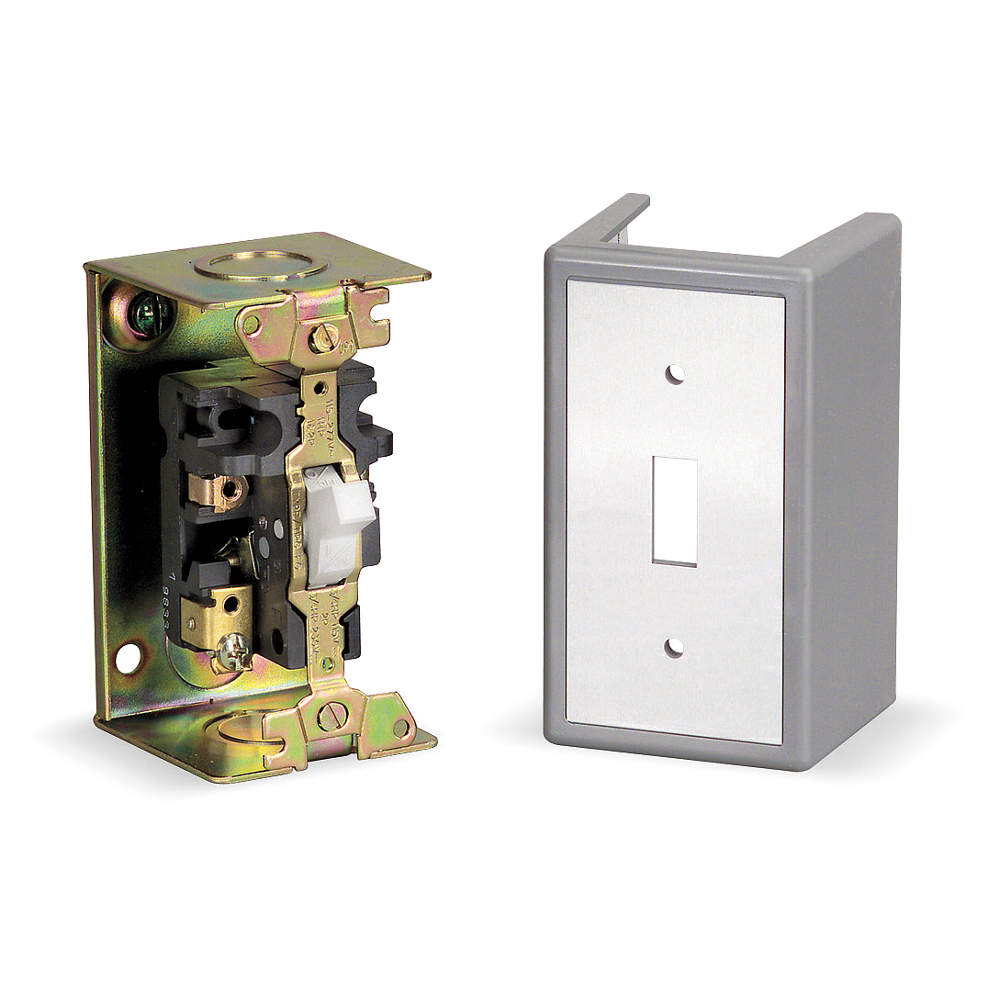

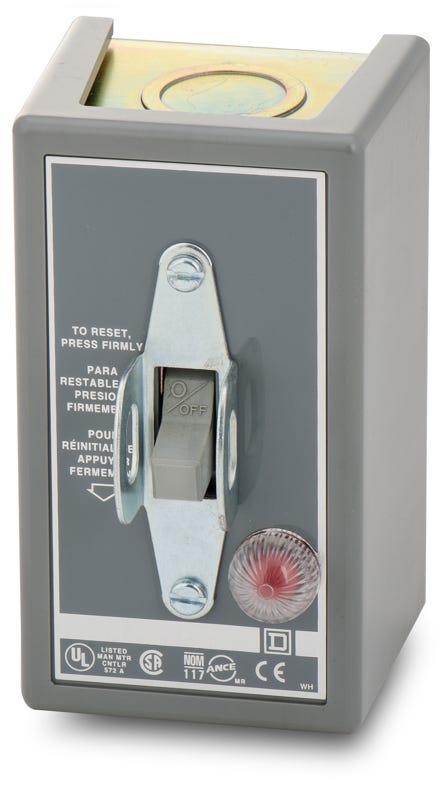

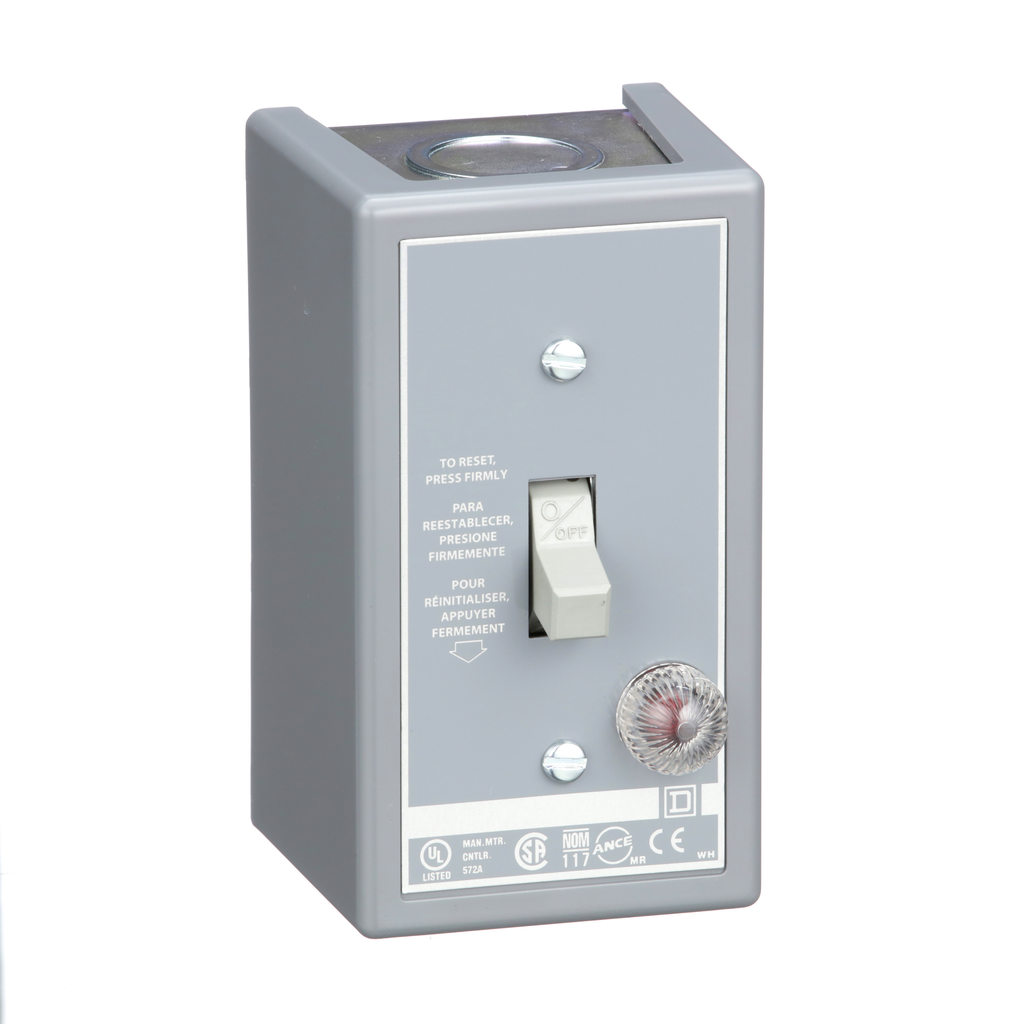

SQUARE D 2510-FG1P MANUAL STARTER LOT OF 6

SQUARE D 2510-FG1P MANUAL STARTER LOT OF 6zoom

Attributes

Key Value
[Ue] Rated Operational .277 V AC
Amperage Rating16A
Amps AC16 A
ApplicationPROVIDES OVERLOAD PROTE.
ASINB000LDHO7I
Awg GaugeAWG 14...AWG 12 copper
Batteries Included?No
Batteries Required?No
BrandSquare D, Square D by S.
Cable Entry0.5" and 0.75" knock-ou.
California Proposition .Lead and lead compounds.
Catalog Number2510FG1P
China Rohs RegulationProduct out of China Ro.
ConditionNew
Connectionscrew clamp terminals
Control TypeToggle Switch
Country of OriginMexico, 00 - Unknown
Current Rating16 AMPS
Current Stock97
Depth2.44 in, 2.75 in, 2 3/4.
Description/Special Fea.Class 10 Ambient-Compen.
ECCNEAR99
Electrical Connectionscrew clamp terminals
Enclosure NEMA Rating1
Estimated Lead Time (in.6
Eu Rohs DirectiveNot compliant
Family SeriesSquare D Starters
Frame SizeNot Applicable
Gross Weight0.815 lbs
GTIN785901553946
Gtin785901553946
Height4.25 in, 2.75 in, 4 1/4.
HP @ 1 Phase - 120V1 hp
HP @ 1 Phase - 230V1 hp
HP @ 120 VAC 1PH1 hp
HP @ 208-240 VAC 1PH1 hp
Included Components2510FG1P
International ShippingNo
ItemManual Motor Starter
Item model number2510FG1P
Item Number2510FG1P
Item Package Quantity1
Item TypeSingle Unit Manual Star.
Lead TimeExpected to ship in 1-2.
Line Rated Current16 A
Local Signallingred indicator
Made in USANo
ManufacturerSquare D, Schneider Ele.
Manufacturer Part Number155038
MaterialMultiple
Max. Voltage600V AC, 277V
Maximum Horse Power Rat.1 hp 115 V AC || 1 hp 2.
Motor Starter Typenon reversing
Mounting Hole Distance .3 in
Mounting Hole Distance .1.63 in
Mpn2510FG1P
Nema Degree Of Protecti.NEMA 1 Plastic standard.
Nema RatingNema 1
Net Weight0.36 kg, 0.745 lbs
Number of Gangs1
Number of Poles1
Number of Required Ther.1
OperatorToggle, Toggle Switch
Overall Depth2.75 in
Overall Height4.25 in
Overall Width2.44 in
Part Number2510FG1P
Phase1, 1 phase
Phase Loss SensitivityNo
Pilot LightRed: On
Poles1
Poles Description1P
Product CertificationsUL listed file E42243 C.
Product Or Component Ty.Single Unit Manual Star.
Pvc FreeYes
Range Of ProductF
Reach RegulationReference contains Subs.
Resetmanual
Reset TypeTHERMAL - MELTING ALLOY
RoHSYes
Series2510F, 2510 Series
Size2.75
SKUZO-G2786987
Special Featuresred indicator
StandardUL LISTED FILE E42243 C.
StandardsCSA LR25490, E42243 CCN.
Sub BrandF
SubCategoryElectrical
Thermal Overload Typemelting alloy
UNSPSC39121521
Upc785901553946
UPC785901553946
UPC Code785901553946
Voltage600
Voltage Rating277 V AC
Warranty18 months
Warranty DescriptionContractual Warranty:18.
Weight2.000000
Width4.25 in, 2.44 in, 2 7/1.

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomAmazonB000LDHO7I22.01In StockSchneider Electric0.822.0 @ 1
AmazonTPB009OYA9YU78.261In Stock4Square D / Schneider Electric78.26 @ 1
thumbzoomblackhawksupply.com2510FG1P93.361In StockSquare D93.36 @ 1
thumbzoomindustrialrefrigerationparts.com2510FG1P93.371In StockSquare D2.093.37 @ 1
hvacdiscountstore.comSCH--2510FG1P95.841In StockSCHNEIDER ELECTRIC (SQUARE D)95.84 @ 1
thumbzoomsuperbreakers.com2510FG1P98.01In StockSquare D98.0 @ 1
thumbzoomGalco2510FG1P-SQD103.0913Square D0.815103.09 @ 1
thumbzoomZoroG2786987105.991234Square D0.8105.99 @ 1
simplybreakers.com2510FG1P107.991In StockSchneider Electric107.99 @ 1
Radwell2510-FG1P112.791In StockSCHNEIDER ELECTRIC112.79 @ 1
thumbzoommidwestapplianceparts.com2510FG1P-SQ-P117.2115Squared117.21 @ 1
thumbzoomsustainablesupply.comC2681955117.721In StockSquare D0.8117.72 @ 1
standardelectricsupply.com2344962118.571In StockSquare D118.57 @ 1
thumbzoomAllfuses2510FG1P121.84197Square D121.84 @ 1
thumbzoomgordonelectricsupply.com2510FG1P122.091In Stock10SQUARE D122.09 @ 1
thumbzoomVoomi Supply2510FG1P123.991In StockSchneider Electric (Square D)123.99 @ 1
thumbzoomsimsupply.comZO-G2786987125.54197Square D125.54 @ 1
thumbzoomptacsolutions.com2510FG1P128.0315Schneider Electric (Square D)128.03 @ 1
Graybar88243727136.66241In StockSquare D (Schneider Electric)136.6624 @ 1
thumbzoomNational Supply Network69666345149.461In StockSquare D149.46 @ 1
us.rs-online.com70060863165.0913Square D165.09 @ 1
thumbzoommayerelectric.comSQD2510FG1P168.951In StockSQUARE D0.792168.95 @ 1
Newark16B5690170.711In StockSQUARE D BY SCHNEIDER ELECTRIC170.71 @ 1
thumbzoomRaptor SuppliesAG9GCA179.1335521In StockSQUARE D179.133552 @ 1
grainger.caSQD2510FG1P187.461173681In StockSQUARE D0.8187.46117368 @ 1
thumbzoomcrescentelectric.com187694224.641In StockSquare D by Schneider Electric224.64 @ 1
