TE CONNECTIVITY / POTTER & BRUMFIELD K10P-11D55-12

B00IC9UILW

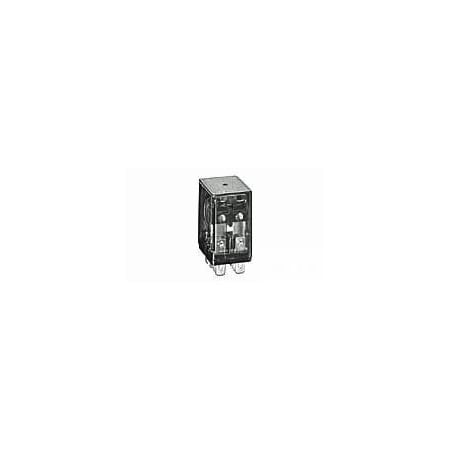

TE CONNECTIVITY / POTTER & BRUMFIELD K10P-11D55-12 POWER RELAY, DPDT, 12VDC, 15A, PC BOARD

TE CONNECTIVITY / POTTER & BRUMFIELD K10P-11D55-12 POWER RELAY, DPDT, 12VDC, 15A, PC BOARDzoom

Attributes

Key Value
Alternate Mfr Part Numb.6-1393144-6
Base Product NumberK10P
Body Depth - Relay1.111 in
Body Height - Relay1.4 in
Body Width - Relay0.858 in
CategoryRelays
Coil Current75 mA
Coil InsulationClass B
Coil Resistance160 Ohms, 160 ?
Coil TypeNon Latching, Monostabl.
Coil Voltage12 VDC, 12VDC
Coil Volts12V DC
Contact Current Rating15 A
Contact FormDPDT, DPDT (2 Form C)
Contact Form - Relay2 Form C (CO)
Contact Limiting Breaki.15 A
Contact Limiting Contin.15 A
Contact Limiting Making.15 A
Contact Limiting Short-.15 A
Contact MaterialSilver Cadmium Oxide (A.
Contact Rating15 A
Contact Rating (Current)15 A
Contact Voltage Rating120 VAC, 300 VAC
Control Voltage12
Current Rating15 A
DescriptionRELAY GEN PURPOSE DPDT .
Detailed DescriptionGeneral Purpose Relay D.
Dielectric Voltage1500 Vrms Adjacent Cont.
Digi-Key Part NumberPB327-ND
Dimensions1.111 L x 0.858 W x 1.3.
Features-, UL Coil Insulation C.
FunctionGeneral Purpose
Item - RelayIndustrial Panel Plug-I.
ManufacturerTE Connectivity Potter .
Manufacturer Product Nu.K10P-11D55-12
Manufacturer Standard L.19 Weeks
MfrTE Connectivity Potter .
Mounting TypePrinted Circuit Board, .
Must Operate Voltage9 VDC
Must Release Voltage1.2 VDC
Number of Pins6 Pin
Number of Poles2
Operate Time13 ms
Operating Temp. Range-45 to 70?C
Operating Temperature-45?C ~ 70?C
PackageTray
Power Consumption - Rel.900 mW
Primary TypePower Relays
Product HeaderK10 Series General Purp.
Product StatusActive
Protection CategoryRTI
Relay TypeElectromechanical, Gene.
Release Time10 ms
Seal Rating-
SeriesK10, K10 Series
StandardsUL, CSA, RoHS
Switching Current300mA @ 12V
Switching Voltage120VAC - Max
Terminal TypePCB-THT
TerminationPCB
Termination StylePC Pin
Voltage Rating120 V

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Onlinecomponents.com6-1393144-67.491706TE Connectivity / AMP Brand7.49 @ 5
Freelance ElectronicsK10P-11D55-128.59029110Tyco Electronics8.59029 @ 5
WaldomTE CONNECTIVITY AMP BRAND 6-1393144-610.0610185TE CONNECTIVITY/AMP BRAND10.06 @ 10
thumbzoomComponent Electronics710-12V-17311.54124Potter & Brumfield11.54 @ 5
Avnet6-1393144-612.35225616TE Connectivity12.352 @ 25
Allied Electronics7120991413.02150TE Connectivity13.02 @ 5
Future Electronics868981216.25796505TE Connectivity16.25796 @ 50
AmazonTPB00IC9UILW16.41152TE CONNECTIVITY / POTTER & BRUMFIELD16.41 @ 5
thumbzoomNewark17M032916.461181POTTER&BRUMFIELD - TE CONNECTIVITY16.46 @ 5
us.rs-online.com7019859017.311247TE Connectivity17.31 @ 5
thumbzoomDigi-Key25454423.9761618TE Connectivity Potter & Brumfield Relays23.976 @ 5
thumbzoomZoroG005866158152.915Te Connectivity152.9 @ 5
