TE Connectivity 3-5176264-2

mpn3-5176264-2
brandname: TE Connectivity / AMP Brand
manufacturername: TE Connectivity / AMP Brand

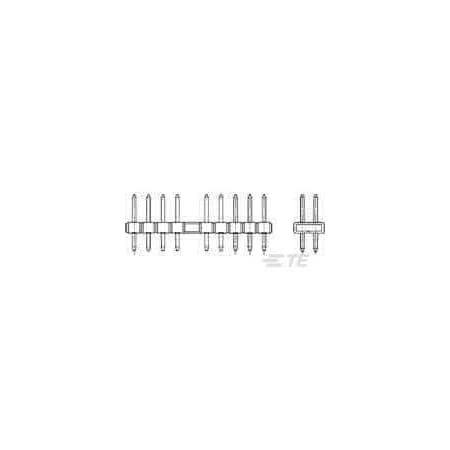

T-E Connectivity 3-5176264-2 (1 pc) 36 AMPMODU 2MM DR VERT MNT LF

T-E Connectivity 3-5176264-2 (1 pc) 36 AMPMODU 2MM DR VERT MNT LF

zoom

Brand: TE Connectivity
PartNumber: 3-5176264-2
PackageQuantity: 1
Manufacturer: TE Connectivity
Label: TE Connectivity

Attributes

Key	Value
Applications	-
Base Product Number	5176264
Category	Connectors, Interconnec.
Connector Type	Header, Breakaway
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thicknes.	8.00?in (0.203?m)
Contact Finish Thicknes.	-
Contact Length - Mating	0.157" (4.00mm)
Contact Length - Post	0.102" (2.60mm)
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Country of Origin (subj.	Taiwan, Province of Chi.
Current Rating (Amps)	-
Description	CONN HEADER VERT 36POS .
Detailed Description	Connector Header Throug.
Digi-Key Part Number	3-5176264-2-ND
Fastening Type	Push-Pull
Features	-
Ingress Protection	-
Insulation Color	Black
Insulation Height	0.059" (1.50mm)
Insulation Material	Thermoplastic
Manufacturer	TE Connectivity AMP Con.
Manufacturer Product Nu.	3-5176264-2
Manufacturer Standard L.	16 Weeks
Mated Stacking Heights	-
Material Flammability R.	UL94 V-0
Mfr	TE Connectivity AMP Con.
Mounting Type	Through Hole
Number of Positions	36
Number of Positions Loa.	All
Number of Rows	2
Operating Temperature	-40?C ~ 105?C
Overall Contact Length	0.319" (8.10mm)
Package	Tray
Pitch - Mating	0.079" (2.00mm)
Product Status	Active
Row Spacing - Mating	0.079" (2.00mm)
Series	AMPMODU
Shrouding	Unshrouded
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	200VAC

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	Onlinecomponents.com	3-5176264-2	2.37	1	6500		TE Connectivity / AMP Brand		2.37 @ 5
	Zoro	G500952714	3.62	3200	5		Te Connectivity		3.62 @ 3200
	Hotenda	H1467586	3.84	1	5		TE Connectivity AMP Connectors		3.84 @ 5
	Waldom	TE CONNECTIVITY AMP BRAND 3-5176264-2	4.31	15	8049		TE CONNECTIVITY/AMP BRAND		4.31 @ 15
	Newark	96Y1150	6.03	1	8043		AMP - TE CONNECTIVITY		6.03 @ 5
	Digi-Key	1893100	6.77	15	8049		TE Connectivity AMP Connectors		6.77 @ 15
