TE Connectivity 2-102699-3

B00KSO6I22

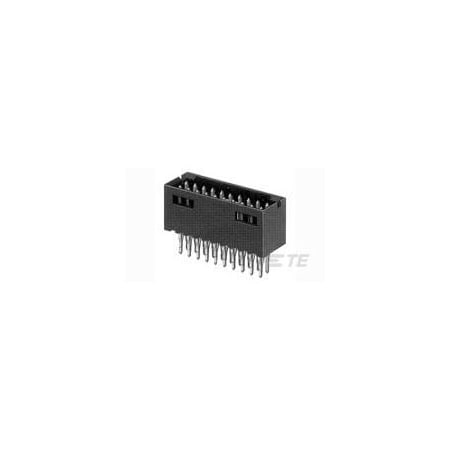

TE Connectivity Part Number 2-102699-3

TE Connectivity Part Number 2-102699-3zoom

Attributes

Key Value
Applications-
Base Product Number102699
CategoryConnectors, Interconnec.
ColorBlack
Connection MaterialCopper Alloy
Connector Terminates ToPrinted Circuit Board
Connector TypeHeader
Contact FinishGold Plated
Contact Finish - MatingGold
Contact Finish - PostTin-Lead
Contact Finish Thicknes.30.0?in (0.76?m)
Contact Finish Thicknes.100.0?in (2.54?m)
Contact Length - Mating0.320" (8.13mm)
Contact Length - Post0.250" (6.35mm)
Contact MaterialCopper Alloy
Contact Plating Thickne.30 ?in
Contact ShapeSquare
Contact TypeMale Pin, Pin
Current Rating3 A
Current Rating (Amps)3A
DescriptionCONN HEADER VERT 50POS .
Detailed DescriptionConnector Header Throug.
Digi-Key Part NumberA113043-ND
Fastening TypeDetent Lock
Features-, Shrouded
Flammability RatingUL 94 V-0
Hole Center to Center2.54 mm
Ingress Protection-
Insulation ColorBlack
Insulation Height0.440" (11.18mm)
Insulation MaterialThermoplastic
ItemPCB Mount Header
ManufacturerTE Connectivity AMP Con.
Manufacturer Product Nu.2-102699-3
Mated Stacking Heights-
MaterialThermoplastic
Material Flammability R.UL94 V-0
Max. Temp.105?C
MfrTE Connectivity AMP Con.
Mounting TypeThrough Hole
Number of Contacts50
Number of Positions50
Number of Positions Loa.All
Number of Rows2
Operating Temperature-55?C ~ 105?C
Overall Contact Length0.660" (16.76mm)
PackageTray
Package Quantity1
Pitch - Mating0.100" (2.54mm)
Product StatusDiscontinued at Digi-Key
Row Spacing - Mating0.100" (2.54mm)
SeriesAMPMODU Mod II
ShroudingShrouded - 4 Wall
StandardsUL E28476; CSA LR7189
StyleBoard to Board or Cable
Terminal FinishTin-Lead Plated; Tin-Le.
Terminal TypeThrough Hole
TerminationPress-Fit, Solder
Voltage Rating-

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Newark12H144113.823202AMP - TE CONNECTIVITY13.82 @ 250
WaldomTE CONNECTIVITY AMP BRAND 2-102699-315.681222TE CONNECTIVITY/AMP BRAND15.68 @ 2
us.rs-online.com7205202215.993202TE Connectivity15.99 @ 320
thumbzoomDigi-Key115302423.94222TE Connectivity AMP Connectors23.9 @ 4
thumbzoomZoroG90093834924.0512Te Connectivity24.05 @ 2
