WAGO ARNEW-06AC0398-D2018

B079B8JZ1M

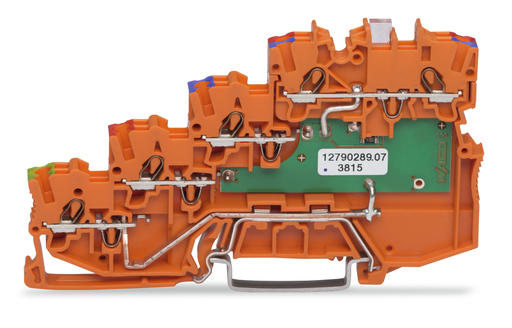

WAGO 2000-5477/1102-953 DIN Rail Mount Terminal Block, 10 Positions, 24 AWG, 16 AWG, 1.5 mm?, Push in, 13.5 A

WAGO 2000-5477/1102-953 DIN Rail Mount Terminal Block, 10 Positions, 24 AWG, 16 AWG, 1.5 mm?, Push in, 13.5 Azoom

Attributes

Key Value
Actuation typePush-in || Operating to.
ActuatorOperating tool
Approvals perUL 1059
BrandWAGO
Catalog Number2000-5477/1102-953
ColorOrange
Conductor MaterialCopper
Conductor Range16-24 AWG Conductor Ran.
ConnectionTerminals (Cage-clamp)
Connection technologyPush-in CAGE CLAMP?
Country of OriginGermany
Country of originDE
CSA Current10 A
CSA Voltage24 V
Current Rating13.5 A
Depth97.3?mm?/ 3.831?inch
DimensionsH97.3mm x W7mm x D52.4mm
Family SeriesWago Terminal Blocks, 2.
Gross Weight0 lbs
GTIN4055143452847
Height97.3 mm / 3.831 inches
Height UOMInch
IEC Current13.5 A
IEC Voltage24 V
Insulation materialPolyamide (PA66)
Item Number2000-5477/1102-953
Item TypeTerminal
Made in USANo
ManufacturerWAGO
Manufacturer Part Number60299186
MaterialPolyamide (PA66)
Max CSA Wire Size (AWG)16 AWG
Max IEC Wire Size (mm2)1.5 Mm2
Max UL Wire Size (AWG)16 AWG
MountingDin Rail
Mounting typeDIN-35 rail
Mounting TypeDin Rail
Net Weight0.0478 lbs
Nominal Cross Section1 mm?
Nominal cross-section1?mm?
Number of Circuits4
PartitionNo
Product Series2000
Rated current13.5 A
RoHSYes
RoHS IndicatorYes
Sensor Block IndicatorGreen 24 V LED
Solid conductor0.14 ? 1.5?mm??/ 24 ? 1.
Spacing7 mm
Total number of connect.10
TypeSensor/Actuator Block
UL Current15 A
UL Voltage24 V
Weight21.577, 21.697 g
Weight UOMGrams
Width7?mm?/ 0.276?inch, 0.276
Width UOMInch
Wire Entry PositionTop
Wiring typeFront-entry wiring

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
Platt.com120185325.151In StockWago25.15 @ 1
thumbzoomstandardelectricsupply.com232897626.451In StockWago0.047733426.45 @ 1
thumbzoomGalco2000-5477/1102-953-WAGO27.7315In StockWago0.047827.73 @ 15
thumbzoomcrescentelectric.com107050028.651In StockWAGO28.65 @ 1
AmazonSCB079B8JZ1M36.931In StockWAGO36.93 @ 1
thumbzoomNewark06AC039839.031In StockWAGO39.03 @ 1
