- mpn203115-M3
- brandname: Walter Prototyp
- manufacturername: Walter Prototyp

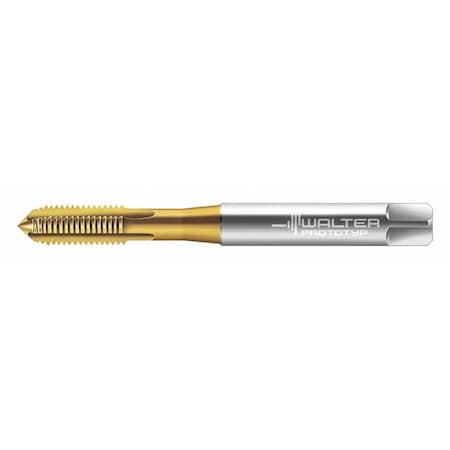

Walter Tools 203115-M3 Paradur HSS Machine Tap, TIN Finish, 3.5 mm Shank Diameter, 0.5 mm Thread Length, 9 mm Cutting Length, 56 mm Overall Length, M3 Cutting Diameter
- Brand: Walter Tools
- PartNumber: 203115-M3
- Model: 5076134
- Size: M3
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: Walter
- Label: Walter
Attributes
| Key | Value |
|---|
| 55% Thread Drill Size | #37 |
| 65% Thread Drill Size | #38 |
| 75% Thread Drill Size | 2.50 mm |
| Coolant Fed | Non-Coolant Through |
| Country of Origin (subj. | India |
| Cutting Direction - Mac. | Right Hand |
| Extended Neck | Yes |
| Helix Angle | 0 Degrees |
| Item | Straight Flute Tap, Str. |
| List Number | 203115 |
| Measurement System | Metric |
| Number of Flutes | 3 |
| Number of Pieces | 1 |
| Overall Length | 57.25mm, 56.00 mm |
| Pitch Diameter Limit | 6H |
| Primary Material Applic. | Aluminum, Brass, Bronze. |
| Primary Material Applic. | N |
| Secondary Material Appl. | Cast Iron, Composite |
| Secondary Material Appl. | K, O |
| Series | Paradur H |
| Shank Dia. | 3.50mm, 3.50 mm |
| Shank Length | 38.00 mm |
| Shank Type - Machining | Straight |
| Spiral Direction | Neutral |
| Square Size | 2.70 mm |
| Standards | DIN 371 |
| Tap Chamfer | Plug, Modified Bottom, . |
| Tap Dimension Type | Metric |
| Tap Finish | TiN |
| Tap Grouping | Individual |
| Tap Length Standard | DIN 371 |
| Tap Material | High Speed Steel |
| Tap Shank Standard | DIN 371 |
| Tap Size | M3 |
| Tap Style | Straight Flute (Hand) |
| Tap Thread Size | M3-0.50 |
| Tap Thread Type | Metric Coarse |
| Thread Direction | Right Hand |
| Thread Length | 9.00 mm, 9.00mm |
| Thread Limit | D3 |
| Thread Limit / Class of. | D3 |
| Thread Pitch | 0.50mm |
| Thread Size | M3x0.5 |
| Thread Standard | Metric Coarse |
