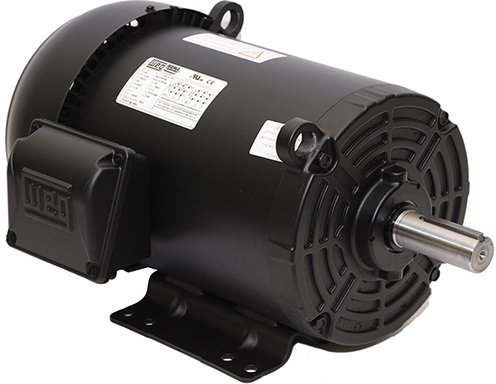

WEG Electric Corporation 00718ET3E213T-S - General Purpose Motor - 3 ph, 7-1/2 hp, 1800 rpm, 190/380//208-230/460 V, 213/5T Frame, TEFC Enclosure, 50/60 Hz, Foot Mount

WEG Electric Corporation 00718ET3E213T-S - General Purpose Motor - 3 ph, 7-1/2 hp, 1800 rpm, 190/380//208-230/460 V, 213/5T Frame, TEFC Enclosure, 50/60 Hz, Foot Mountzoom

Attributes

Key Value
Amperage Rating20.1 to 18.1/9.07 A
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
Comments60 Hz
CompositionSteel
ConstructionRolled Steel
Description:MOTOR 7.5HP 4P 213/5T W.
Dimensions18.898 in L
Drive End Flange TypeStandard
EnclosureTEFC, Totally Enclosed .
Enclosure TypeTotally Enclosed Fan Co.
Estimated Weight131.00
Family SeriesWEG Electric Motors
FL Amps9.07
FL Efficiency91.7
Frame213/5T
Frequency60 Hz
Frequency Rating60 Hz
Gross Weight117 lbs
Hertz60
Horsepower7.5 hp, 7-1/2 hp
HP7.5
Insulation ClassClass F
Item Number00718ET3E213T-S
ManufacturerWEG Electric, WEG ELECT.
Manufacturer Part Number00718ET3E213T-S
MaterialRolled Steel
MFG Part #:00718ET3E213T-S
MountingFoot Mount
Mounting TypeFooted, Foot Mount
NEMA Frame213/5T
Net Weight117 lbs
Nominal Voltage208 VAC
Number of Speeds1
Part Number00718ET3E213T-S
Phase3, 3 ph
Product TypeGeneral Purpose
RotationCW/CCW
RPM1,800 RPM
Service Factor1.15
Shaft Size0.375 in Dia x 3.38 in L
Speed1770 rpm
Speed (RPM)1800
Supplier:WEG ELECTRIC CORP
Temperature Rating-20 to 40 deg C
UPC:7909158532322
Voltage208V, 230V, 460V
Voltage (AC)208 VAC

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
kscdirect.comWEG 00718ET3E213T-S711.01In StockWEG ELECTRIC CORP711.0 @ 1
thumbzoommotorsandcontrol.com00718ET3E213T-S711.01In StockWEG Electric131.0711.0 @ 1
thumbzoomGalco00718ET3E213T-S-WEG778.631In StockWEG Electric117.0778.63 @ 1
motionindustries.com060472581153.771In StockWEG Electric Corporation1153.77 @ 1
