White-Rodgers 1609-101

B003U4QWDW

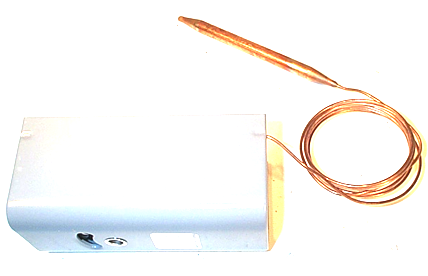

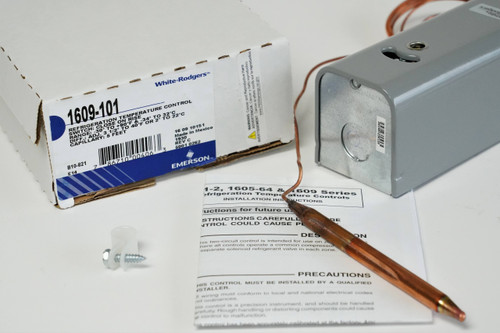

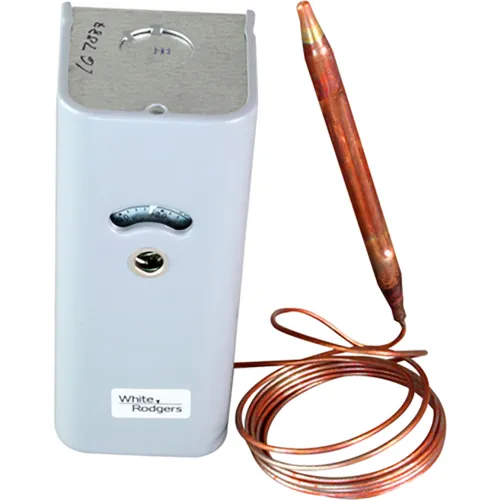

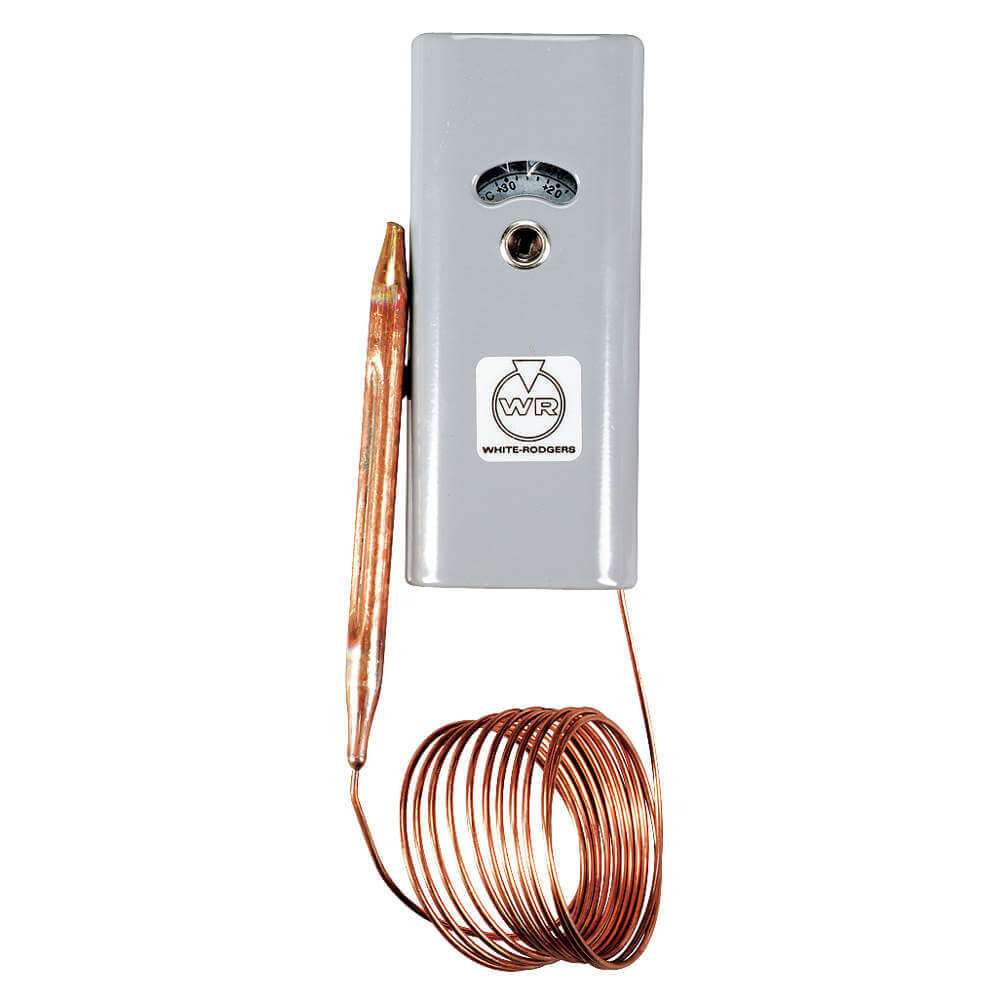

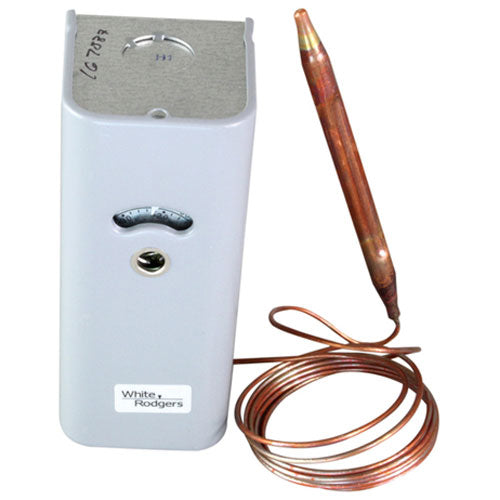

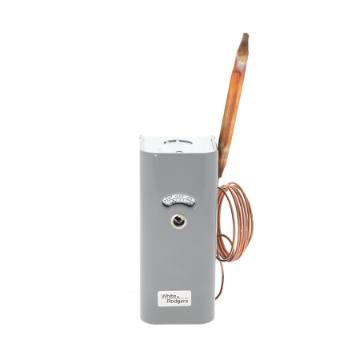

White Rodgers 1609-101 Refrigeration Temperature Control, 10.3" x 15.9" x 11"

White Rodgers 1609-101 Refrigeration Temperature Control, 10.3" x 15.9" x 11"zoom

Attributes

Key Value
Amps16.0 FLA at 120V AC; 8..
ApplicationRefrigeration, Refriger.
ASINB082J5C3LR
Auto Switching HeatNo
BrandWhite-Rodgers
Bulb Diameter1/2 in
Bulb Length5 1/4 in
Capillary Length60 in
Changeover TypeManual
Color Finish CategoryGreys
Color Finish NameGrey
Compatible System TypeSolenoid Refrigerant Va.
Contact Rating120V AC, 240V AC
Contact Rating Resistiv.25 A
Contact Rating Resistiv.22 A
Control TypeConcealed Dial
Country of OriginMEXICO
Differential TypeAdjustable
Electrical Connection T.Hardwired
Enclosure ColourGray
Enclosure MaterialSteel
Enclosure NEMA RatingNEMA 1
Enclosure TypeDustproof NEMA 1
Energy Star CompliantNo
Full Load Amps @ 120V AC16 A
Full Load Amps @ 240V AC8 A
Height12.650, 5.375 in
IncludesBulb Mounting Clip
Inductive Amps @ 120V16 A
Inductive Amps @ 240V8 A
ItemLine Voltage Mechanical.
Item model number1609-101
Key FeaturesTop and Bottom Knockouts
Length2.650, 5 ft
Locked Rotor Amps @ 120V44.5 A
Locked Rotor Amps @ 240V22.2 A
ManufacturerWhite-Rodgers
Maximum Control Tempera.90 Degrees F
Maximum Operating Tempe.140 Degrees F
Maximum Temperature90
Minimum Control Tempera.-30 Degrees F
Minimum Operating Tempe.-29 Degrees F
Minimum Temperature-30
Mounting LocationIndoor, Outdoor
Number of Cooling Stages1
Number of Heating Stages0
Number of Poles1
Number of Switches1
Operating Temperature R.-29 Degrees to 140 Deg.
Overall Depth2 1/2 in
Overall Height5 1/2 in
Overall Width2 1/4 in
Package Quantity1
Power SourceElectric
Product TypeTemperature Control
Sensor LocationRemote
Sensor TypeHydraulic Capillary Bul.
Series1609 Series
Size MeasureIN
StandardsCSA Certified, UL Listed
Switch ActionClose on Rise
Switch FunctionClose onRise
Switch TypeSPST
Temp. Range-30 to 90?F
Temperature Differential3.5 Degrees to 40 Degr.
Temperature Range30 to 90 Deg F
Temperature ScaleFahrenheit/Celsius
Thermostat TypeIndoor Single-Stage Con.
Touch Screen -No
UL ListedYes
UNSPSC41112200
Voltage120 to 240V AC
Weight1.630
Weight MeasureLB
Width10.850, 2.312 in

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
AmazonTPB003U4QWDW60.491In Stock3White Rodgers60.49 @ 1
thumbzoomedmondsonsupply.com1609-10160.84114WHITE-RODGERS60.84 @ 1
thumbzoomsustainablesupply.comC208500666.251In StockWhite Rodgers2.066.25 @ 1
thumbzoomZoroG656918566.691In StockWhite-Rodgers66.69 @ 1
thumbzoomgsistore.com1609-10166.98137White-Rodgers66.98 @ 1
thumbzoomacwholesalers.com1609-10170.21In StockWHITE RODGERS70.2 @ 1
thumbzoomecomfort.com1609-10170.21In StockWhite Rodgers70.2 @ 1
thumbzoommccombssupply.com1609-10171.611In StockWhite Rodgers71.61 @ 1
hvacdiscountstore.comWHI--1609-10174.421In StockWHITE-RODGERS74.42 @ 1
thumbzoomPlatt.com006230877.751In StockWhite-Rodgers77.75 @ 1
thumbzoommidwestapplianceparts.com1609-101-WR-P78.331In StockWhite Rodgers78.33 @ 1
thumbzoomHD Supply22167978.761In StockWhite-Rodgers1.6378.76 @ 1
thumbzoomglobalcommercialparts.comWHR_160910179.79128WHITE-RODGERS79.79 @ 1
thumbzoomindustrialstores.com1609-10180.48117White-Rodgers80.48 @ 1
grainger.caWWG1RC4386.66123641In StockWHITE-RODGERS1.3586.6612364 @ 1
us.rs-online.com7088451889.16118White-Rodgers89.16 @ 1
ferguson.com96309296.271In StockWhite-Rodgers96.27 @ 1
thumbzoomGlobal IndustrialWBB295481996.951In StockWhite Rodgers96.95 @ 1
Kele1609-10199.321In StockWhite-Rodgers99.32 @ 1
AmazonB082J5C3LR122.171In StockWhite-Rodgers122.17 @ 1
thumbzoomRaptor SuppliesAB3BAR122.94202051In StockWHITE-RODGERS122.9420205 @ 1
thumbzoomwaterpumpsnow.com1609-101222.21In StockWhite Rodgers1.0222.2 @ 1
