Albion 16PI08201S

B016081HZC

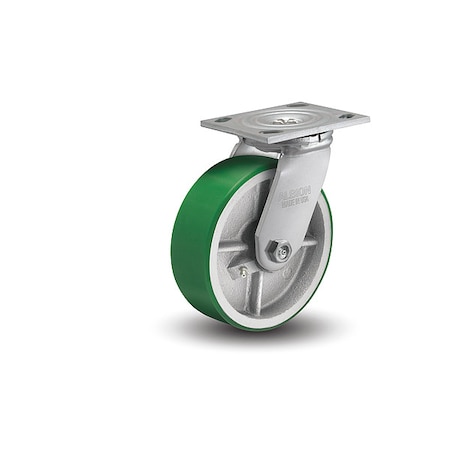

Albion 16PI08201S 6" Diameter Polyurethane on Cast Iron Wheel Medium Heavy Duty Swivel Caster, Roller Bearing, 4-1/2" Length x 4" Width Base Plate, 1250 lb. Capacity Range

Albion 16PI08201S 6" Diameter Polyurethane on Cast Iron Wheel Medium Heavy Duty Swivel Caster, Roller Bearing, 4-1/2" Length x 4" Width Base Plate, 1250 lb. Capacity Rangezoom

Attributes

Key Value
ApplicationShop/Distribution Carts.
BrandAlbion
Caster Brake IncludedNo
Caster Brake TypeNo Brake Included
Caster Frame MaterialSteel
Caster Mounting TypePlate
Caster Product GroupSwivel Caster
Caster Stem TypeNo Stem/Plate Included,.
Caster Sub-TypeSwivel
Caster Wheel/Tread Mate.Polyurethane on Cast Ir.
Core ColorGrey
Country of Origin (subj.United States, China
Current Stock17
FeaturesEconomical Wheel, Kingp.
For Axle Dia.1/2 in
Frame ConstructionCold Formed
Frame FinishZinc
Hub Length2 3/16 in
Includes Spanner BushingYes
Includes Thread GuardsNo
Inside Bolt Hole Spacing2-5/8 in X 3 in
International ShippingNo
ItemPoly-On Iron Swivel Cas.
Load Rating1250 lb., 1250 lb
Load Rating Range1000 to 2999 lb
Mounting Bolt Dia.3/8 in
Mounting Height9-1/2 in
Mounting Plate Bolt Hol.B
Mounting Plate Size4 in X 4-1/2 in
Mounting Plate Thickness1/4 in
Mpn16PI08201S
Non-MarkingYes
NSF ListedYes
Number of Mounting Holes4
Number of Wheels1
Operating Temperature R.-40?F to 180?F
Outside Bolt Hole Spaci.3 in X 3-5/8 in
Overall Height9-1/2"
Overall Wheel Width2 in
SKUZO-G500712967
StandardsNSF Listed, RoHS Compli.
Stem Dia.No Stem
SubCategoryMaterial Handling
Swivel ConstructionKingpin
Swivel Lead1 3/4 in
Swivel Lock TypeNo Lock Included
Swivel Raceway TypeDouble Ball
Swivel Radius5 3/4 in
Tread ShapeStandard
Wheel Bearing TypeRoller
Wheel Core MaterialCast Iron
Wheel Dia.8", 8 in
Wheel TypePolyurethane (Cast Iron.
Wheel Width2 in, 2"
Wheel/Tread ColorGreen
Wheel/Tread Hardness95A
Wheel/Tread Hardness Ra.Hard
Wheel/Tread MaterialPolyurethane
With Toe PlateNo

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomZoroG50071296775.631In StockAlbion11.575.63 @ 1
thumbzoomsimsupply.comZO-G50071296782.94117Albion82.94 @ 1
motionindustries.com0254144987.961In StockAlbion87.96 @ 1
