Chicago Latrobe 48233

B09TJQZKVP

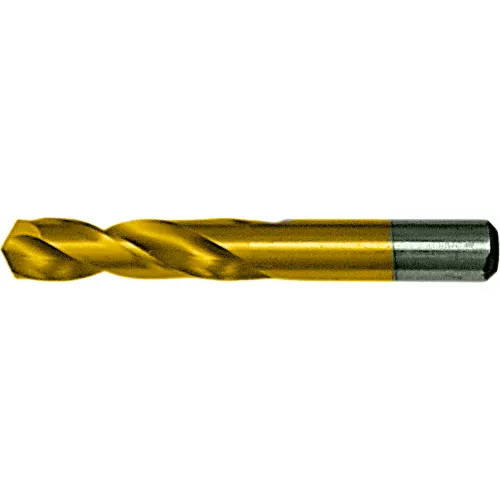

Chicago-Latrobe 48233 159-TN/2159 Heavy Duty Screw Machine Drill, A Drill - Letter, 0.234 in Drill - Decimal Inch, HSS, TiN Coated (12 Each)

Chicago-Latrobe 48233 159-TN/2159 Heavy Duty Screw Machine Drill, A Drill - Letter, 0.234 in Drill - Decimal Inch, HSS, TiN Coated (12 Each)zoom

Attributes

Key Value
Applicable MaterialsAlloy Steel, Carbon Ste.
Bit Dia.A
Cutting Depth1-5/16 in
Cutting DirectionRight Hand
Cutting Edge MaterialHSS
Decimal Equivalent0.2340
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.2340"
Diameter (Wire/Let)A
Drill Bit Dimension TypeLetter
Drill Bit FinishTiN
Drill Bit GroupingDrill Bit
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle135 Degrees
Drill Bit SizeA
Drill ConstructionHeavy-Duty
Drill Diameter Measurem.Imperial
Drill Diameter Tolerance+0.0000 in /-0.0007 in
Drill Length ClassScrew Machine Length
Drill Point Length0.0000
Drill Size - Decimal In.0.234 in
Drill Size - LetterA
Drill Size SystemLetter
Drill StyleScrew Machine Drill
Drilling Length1-5/16"
FinishTiN Coated
Flute Length1-5/16 in, 1 5/16 in, 1.
Flute Length (Metric)33.34mm
Flute TypeRight Spiral, Spiral
Hand of CutRight
Hand of SpiralRight
ItemScrew Machine Drill Bit
MaterialHSS
Maximum Drilling Depth1 5/16 in
Number of Flutes2
Overall Length2-7/16 in, 2 7/16 in, 2.
Overall Length (Metric)61.91mm
Point Angle135 deg, 135?
Point StyleSplit
Point TypeSplit
Series159-TN/2159
Shank ConfigurationStraight
Shank Dia.15/64 in
Shank Length1.1250", 1 1/8 in
Shank Length (Metric)28.57mm
Shank Size0.2340", 0.234 in Dia x.
Shank Size (Metric)5.94mm
Shank TypeStraight
Sizes IncludedA
Style159-TN
Surface ConditionTiN
Tool SizeA
TypeHeavy Duty

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply61299184.21912Chicago-Latrobe4.21 @ 12
thumbzoomMegadepot482334.35112Chicago-Latrobe4.35 @ 12
thumbzoomheavydutydepot.com482334.352312Chicago-Latrobe4.35 @ 23
thumbzoomGlobal IndustrialWBB25465914.621212Chicago-Latrobe4.62 @ 12
thumbzoomusmegastore.com482334.98112Chicago-Latrobe4.98 @ 12
thumbzoomZoroG29920075.8312128Chicago-Latrobe0.035.83 @ 12
thumbzoombscsource.com482336.79112Chicago-Latrobe6.79 @ 12
thumbzoomNational Supply Network61315937.5525112Chicago-Latrobe7.5525 @ 12
thumbzoomGuardian061315939.91112Chicago-Latrobe9.91 @ 12
