Chicago Latrobe 48243

B09TJQYZZD

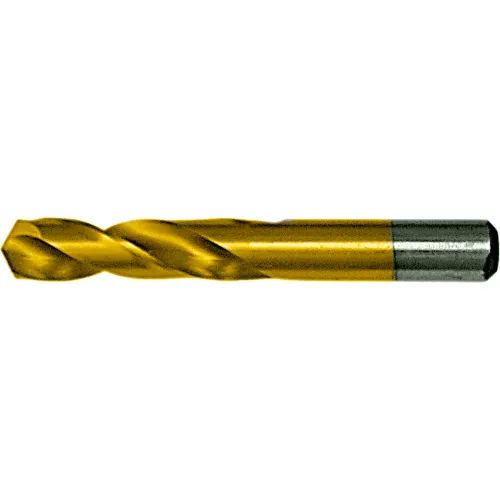

Chicago-Latrobe 48243 159-TN/2159 Heavy Duty Screw Machine Drill, L Drill - Letter, 0.29 in Drill - Decimal Inch, HSS, TiN Coated (12 Each)

Chicago-Latrobe 48243 159-TN/2159 Heavy Duty Screw Machine Drill, L Drill - Letter, 0.29 in Drill - Decimal Inch, HSS, TiN Coated (12 Each)zoom

Attributes

Key Value
ApplicationFor Drilling Alloy Stee.
Bit Dia.L
Coolant FedNon-Coolant Through
Coolant ThroughNo
Country of Origin (subj.United States
Cutting DirectionRight Hand
Decimal Equivalent0.2900
Depth x Dia. Ratio4xD
Depth:Dia. Ratio4xD
Diameter0.2900"
Diameter (Wire/Let)L
Drill Bit Dimension TypeLetter
Drill Bit FinishTiN
Drill Bit GroupingDrill Bit
Drill Bit MaterialHigh Speed Steel
Drill Bit Point Angle135 Degrees
Drill Bit Point TypeSplit Point
Drill Bit SizeL
Drill ConstructionHeavy-Duty
Drill Diameter Tolerance+0.0000 in /-0.0010 in
Drill Length ClassScrew Machine Length
Drill Point Length0.0000
Drill Size SystemLetter
Drill StyleScrew Machine Drill
Drilling Length1-9/16"
Finish - MachiningTiN
Flute Length1.5625", 1 9/16 in
Flute Length (Metric)39.69mm
Flute TypeSpiral
GradeHeavy Duty
Hand of CutRight
Hand of SpiralRight
Helix Angle28 Degrees
ItemScrew Machine Drill Bit
List Number159-TN
MaterialHSS
Material - MachiningHigh Speed Steel
Material Grade - Machin.Heavy Duty
Maximum Drilling Depth1 9/16 in
Measurement SystemLetter
Number of Flutes2
Number of Pieces0
Overall Length2.7500", 2 3/4 in
Overall Length (Metric)69.85mm
Point Angle135?
Point StyleSplit
Point TypeSplit
Primary Material Applic.Cast Iron, Steel, Tool .
Primary Material Applic.K, P
Series159-TN
Shank ConfigurationStraight
Shank Dia.9/32 in
Shank Length1 3/16 in, 1.1875"
Shank Length (Metric)30.16mm
Shank ShapeStraight
Shank Size0.2900"
Shank Size (Metric)7.37mm
Shank TypeStraight
Shank Type - MachiningStraight
Sizes IncludedL
Spiral DirectionRight Hand
StandardsANSI
Surface ConditionTiN
Tool SizeL

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomGlobal IndustrialWBB25465276.71212Chicago-Latrobe6.7 @ 12
thumbzoomheavydutydepot.com482436.721512Chicago-Latrobe6.72 @ 15
thumbzoomMegadepot482436.84112Chicago-Latrobe6.84 @ 12
thumbzoomusmegastore.com482436.87112Chicago-Latrobe6.87 @ 12
thumbzoomZoroG29918737.7912128Chicago-Latrobe0.047.79 @ 12
thumbzoombscsource.com482438.89112Chicago-Latrobe8.89 @ 12
thumbzoomNational Supply Network613169210.4925112Chicago-Latrobe10.4925 @ 12
thumbzoomGuardian0613169214.24112Chicago-Latrobe14.24 @ 12
