- mpnC23856
- brandname: Cle-Line
- manufacturername: Cle-Line

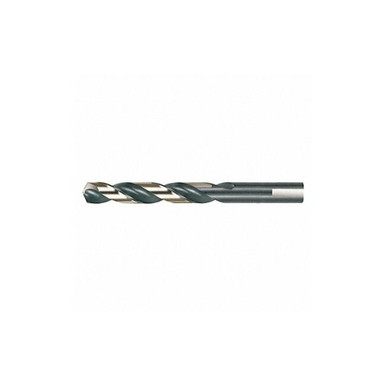

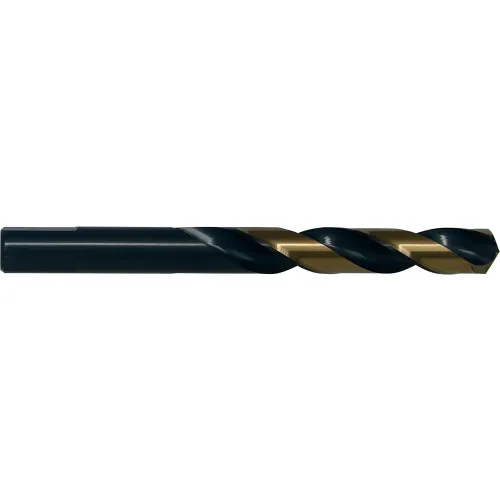

Mechanics Drill, HSS, 15/32, 135 Deg


- Brand: Cle-line
- PartNumber: C23856
- PackageQuantity: 1
- Binding: Misc.
- Manufacturer: CLE-LINE
- Label: CLE-LINE
Attributes
Key | Value |
---|
Applicable Materials | Cast Iron/Steel |
Application | For Use On Alloy, Stain. |
Brand | Cle-Line |
Color | Black Oxide |
Coolant Fed | Non-Coolant Through |
Current Stock | 397 |
Cutting Depth | 3-1/8 in |
Cutting Direction | Right Hand, Right |
Cutting Edge Material | HSS |
Decimal Equivalent | 0.4688, 3.1250 |
Depth x Dia. Ratio | 4xD |
Depth:Dia. Ratio | 4xD |
Diameter | 0.4688" |
Diameter (Fraction) | 15/32" |
Drill Bit Dimension Type | Fractional Inch |
Drill Bit Finish | Black/Gold |
Drill Bit Grouping | Drill Bit, Set |
Drill Bit Material | High Speed Steel |
Drill Bit Point Angle | 135 Degrees, 135 Degre. |
Drill Bit Point Type | Split Point |
Drill Bit Size | 15/32 in, 15/32" |
Drill Construction | Heavy-Duty |
Drill Diameter Tolerance | +0.0000 in /-0.0010 in |
Drill Length Class | Mechanics Length |
Drill Point Length | 0.0971 in |
Drill Size - Decimal In. | 0.4688 in |
Drill Size - Fraction | 15/32 in |
Drill Size System | Fractional |
Drill Style | Mechanics Length Drill |
Finish | Black/Gold |
Finish - Machining | Black Oxide |
Flute Length | 3 1/8 in, 3.1250", 3-1/. |
Flute Length (Metric) | 79.38mm |
Flute Type | Spiral |
Grade | Heavy Duty |
Hand of Cut | Right |
Hand of Spiral | Right |
Helix Angle | 28 Degrees |
International Shipping | No |
Item | Mechanics Drill Bit, Me. |
Lead Time | Expected to ship in 1-2. |
List Number | 1875 |
Material | HSS, High Speed Steel |
Material - Machining | High Speed Steel |
Maximum Drilling Depth | 1 7/8 in |
Measurement System | Fractional Inch, Imperi. |
Mpn | C23856 |
Number of Flutes | 2 |
Number of Pieces | 1 |
Overall Length | 4-3/4", 4.7500", 4-3/4 . |
Overall Length (Metric) | 120.65mm |
Point Angle | 135 deg, 135? |
Point Style | Split |
Point Type | Split |
Primary Material Applic. | Cast Iron, Steel |
Primary Material Applic. | K, P |
Series | 1875R |
Shank Configuration | Straight w/ 3 Flats |
Shank Dia. | 15/32 in, 15/32" |
Shank End Feature | 3 Flats |
Shank End Feature Length | 0.8750" |
Shank Length | 1.6250", 1 5/8 in |
Shank Length (Metric) | 41.27mm |
Shank Size | 0.4688", 15/32 in |
Shank Size (Metric) | 11.91mm |
Shank Type | Straight Flatted |
Shank Type - Machining | Straight with Three Fla. |
SKU | ZO-G3389696 |
Spiral Direction | Right Hand |
Standards | ASME B94.11M |
Style | 1875R |
SubCategory | Machining |
Surface Condition | Black & Gold |
Tool Size | 15/32" |
Type | Heavy Duty |
UPC | 697334238560 |
All Prices
Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
---|
| grainger.ca | GNFC23856 | 4.66693258 | 1 | 6 | | CLE-LINE | 0.164 | 4.66693258 @ 6 |
  | Global Industrial | WBB2545325 | 7.3 | 6 | 6 | | Cle-Line | | 7.3 @ 6 |
  | MRO Supply | 6125106 | 8.52 | 5 | 6 | | Cle-Line | | 8.52 @ 6 |
  | Zoro | G3389696 | 9.19 | 1 | 672 | | Cle-Line | 0.16 | 9.19 @ 6 |
  | Megadepot | C23856 | 9.56 | 1 | 6 | | Cle-Line | | 9.56 @ 6 |
  | usmegastore.com | C23856 | 9.56 | 1 | 6 | | Cle-Line | | 9.56 @ 6 |
  | heavydutydepot.com | C23856 | 9.56 | 11 | 6 | | Cle-Line | | 9.56 @ 11 |
  | sustainablesupply.com | C1465319 | 12.69 | 1 | 6 | | Cle-Line | 0.16 | 12.69 @ 6 |
  | simsupply.com | ZO-G3389696 | 16.21 | 1 | 397 | | Cle-Line | | 16.21 @ 6 |
| AmazonTP | B000LEU6B8 | 19.48 | 1 | 6 | 2 | CLE-LINE | | 19.48 @ 6 |
