CLEVELAND C08865

mpnC08865
brandname: CLEVELAND
manufacturername: CLEVELAND

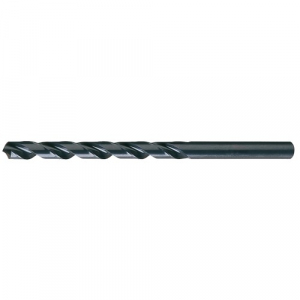

CLEVELAND Taper Length Drill,17.00mm,HSS C08865

CLEVELAND Taper Length Drill,17.00mm,HSS C08865

zoom

Brand: CLEVELAND
PartNumber: C08865
Model: C08865
Size: 17mm
PackageQuantity: 1
Binding: Misc.
Manufacturer: Greenfield Industries
Label: Greenfield Industries

Attributes

Key	Value
Applicable Materials	Alloy Steel, Carbon Ste.
Application	For Stainless Steel, To.
Coolant Fed	Non-Coolant Through
Coolant Through	No
Country of Origin (subj.	United States
Cutting Depth	154 mm
Cutting Direction	Right Hand
Cutting Edge Material	HSS
Decimal Equivalent	0.6693
Depth x Dia. Ratio	4xD
Depth:Dia. Ratio	4xD
Drill Bit Dimension Type	Metric
Drill Bit Finish	Black Oxide
Drill Bit Grouping	Drill Bit
Drill Bit Material	High Speed Steel
Drill Bit Point Angle	118 Degrees
Drill Bit Point Type	Conventional Point
Drill Bit Size	17.00 mm
Drill Diameter Tolerance	+0.0000 in /-0.0012 in
Drill Length Class	Taper Length
Drill Point Length	0.2011 mm
Drill Size - Decimal In.	0.6693 in
Drill Size - Metric	17 mm
Finish	Black Oxide
Finish - Machining	Black Oxide
Flute Length	154 mm, 154.00 mm
Flute Type	Spiral
Grade	General Purpose
Helix Angle	21 Degrees /34 Degrees
Item	Taper Length Drill Bit
List Number	2510
Material	HSS
Material - Machining	High Speed Steel
Material Grade - Machin.	General Purpose
Maximum Drilling Depth	154.00 mm
Measurement System	Metric
Number of Flutes	2
Overall Length	235.00 mm, 235 mm
Point Angle	118 deg
Point Type	Radial
Primary Material Applic.	Cast Iron, Steel
Primary Material Applic.	K, P
Series	2510
Shank Dia.	17.00 mm
Shank Length	81.00 mm
Shank Size	17 mm
Shank Type	Straight
Shank Type - Machining	Straight
Sizes Included	17.00mm
Spiral Direction	Right Hand
Standards	DIN 340
Style	2510
Surface Condition	Steam Oxide
Tool Size	17mm
Type	General Purpose

All Prices

Img	Seller	Supplier SKU	Min Price	MOQ	In Stock	Lead Time	Brand	Weight	Preferred Tier
	MRO Supply	6110072	50.91	1	In Stock		Cleveland		50.91 @ 1
	usmegastore.com	C08865	53.91	1	In Stock		Cleveland		53.91 @ 1
	Zoro	G2995811	66.89	1	1		Cleveland	0.68	66.89 @ 1
	sustainablesupply.com	C3017873	71.96	1	In Stock		Cleveland	0.68	71.96 @ 1
	National Supply Network	63723993	97.41	1	In Stock		Cleveland		97.41 @ 1
	bscsource.com	C08865	110.79	1	In Stock		Cleveland		110.79 @ 1
	Guardian	63723993	114.16	1	In Stock		Cleveland		114.16 @ 1
