- mpnBZ-2RW855-A2-S
- brandname: Honeywell
- manufacturername: Honeywell

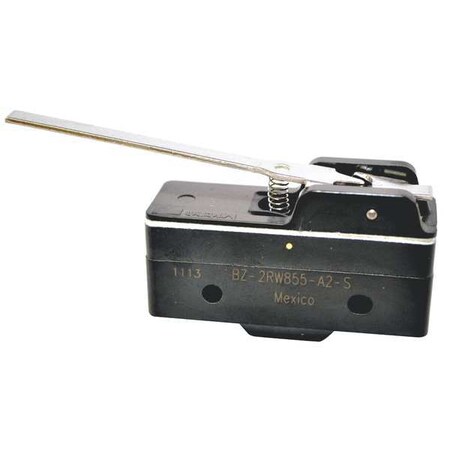

Microswitch BZ-2RW855-A2-S Honeywell Switch BZ2RW855A2S
- Brand: Micro
- PartNumber: BZ-2RW855-A2-S
- Model: BZ-2RW855-A2-S
- PackageQuantity: 1
- Binding: Electronics
- Manufacturer: Microswitch
- Label: Microswitch
Attributes
| Key | Value |
|---|
| AC Contact Rating - Sna. | 15A @ 240V |
| Actuator Length | 2.50" |
| Actuator Type | Straight Lever, Lever, . |
| Actuator Type - Snap Ac. | Hinge, Lever |
| Alternate Parts | BZ-2RW855 |
| Circuit | SPDT |
| Contact Form | SPDT |
| Contact Form- Switches | SPDT |
| Country of Origin (subj. | Mexico |
| Current Rating | 15a, 15 A |
| Current Rating (Amps) | 15A (AC), 500mA (DC) |
| DC Contact Rating - Sna. | 15A @ 240V |
| Depth | 0.7" |
| Depth - Snap Action Swi. | 0.7 in |
| Differential Travel | 0.007 in, 0.050" (1.3mm) |
| Electrical Connection -. | Screw |
| Family Name | MICRO SWITCH B Series P. |
| Head Type | Lever |
| Height | 1.0" |
| Height - Snap Action Sw. | 1 in |
| Housing Material | General Purpose Phenolic |
| Ingress Protection | Splash Proof |
| Item | Industrial Snap Action . |
| Lead Free Status / RoHS. | RoHS Compliant |
| Length | 2.0" |
| Lever Actuator Length -. | 2.5 in |
| Manufacturer Part Number | BZ-2RW855-A2-S |
| Manufacturer Standard L. | 5 Weeks |
| Max. Pretravel | 0.328 in |
| Mechanical Life | 20,000,000 Cycles |
| Mounting Dimension | 1.00" Centers |
| Mounting Dimension - Sn. | 1.00 in Centers |
| Mounting Type | Chassis Mount, Surface . |
| Operating Force | 2.5 oz, 71gf |
| Operating Position | 0.750" (19.1mm) |
| Operating Temp. Range | -67 Degrees to 185 Deg. |
| Operating Temperature | -55 |
| Over Travel | 0.219 in |
| Overtravel | 0.219" (5.6mm) |
| Packaging | Bulk Pack |
| Release Force | 14gf, 0.494 oz |
| Series | BZ/BA/BM/BE/6AS Series,. |
| Standard Package | 50 |
| Standards | CSA, ENEC, UL |
| Switch Function | On-Mom |
| Terminal Type | Screw |
| Termination | Screw |
| Termination Style | Screw Terminal |
| Type of Actuator | Straight Lever |
| Voltage Rating | 250 V, 250VAC |
| Voltage Rating - AC | 125V |
| Voltage Rating - DC | 125V |
| Watertight - Snap Actio. | No |
| Width - Snap Action Swi. | 2 in |
All Prices
| Img | Seller | Supplier SKU | Min Price | MOQ | In Stock | Lead Time | Brand | Weight | Preferred Tier |
|---|
| Onlinecomponents.com | BZ-2RW855-A2-S | 26.755 | 1 | 373 | | Honeywell | | 26.755 @ 1 |
| iodParts | BZ-2RW855-A2-S | 27.37 | 10 | 350 | | Honeywell | | 27.37 @ 10 |
 | sustainablesupply.com | C1174591 | 27.41 | 1 | In Stock | | Honeywell | 0.01 | 27.41 @ 1 |
 | Zoro | G4534135 | 29.12 | 1 | In Stock | 1 | Honeywell | 0.01 | 29.12 @ 1 |
| us.rs-online.com | 70273412 | 31.1 | 1 | 48 | | Honeywell | | 31.1 @ 1 |
| RS Delivers | 842-8838 | 31.752 | 1 | 65 | | Honeywell | | 31.752 @ 1 |
| Carlton Bates Company | 78454917581 | 33.26 | 1 | 1 | | Honeywell | | 33.26 @ 1 |
 | Radwell | BZ-2RW855-A2-S | 44.0 | 1 | 1 | | HONEYWELL MICROSWITCH | | 44.0 @ 1 |
