Leeson 110009.00

B00EPKRVTE

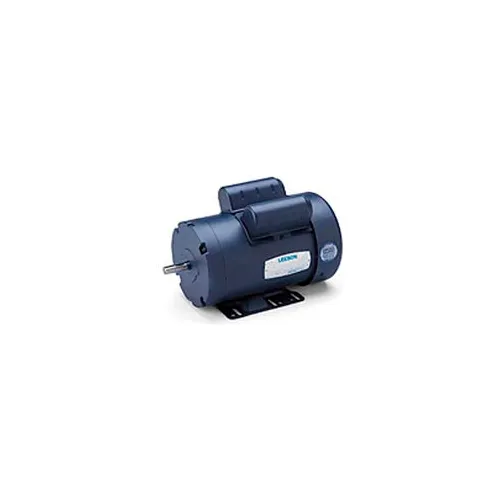

Leeson 110009.00 General Purpose TEFC Motor, 1 Phase, 56 Frame, Rigid Mounting, 1/3HP, 1200 RPM, 115/208-230V Voltage, 60Hz Fequency

Leeson 110009.00 General Purpose TEFC Motor, 1 Phase, 56 Frame, Rigid Mounting, 1/3HP, 1200 RPM, 115/208-230V Voltage, 60Hz Fequencyzoom

Attributes

Key Value
Alternate Mfr Part Numb.C6C11FB1F
Amperage Rating7.8/3.9 A
Amps7.8/3.6-3.9
Application TypeCompressor Motors, Fan .
ApprovalsCSA, UL
Bearing TypeBall
BearingsBall
CategoryElectric Motor
Class/GroupC6C11FB1
CompositionSteel
ConstructionRolled Steel
Country of Origin (subj.United States
Current Rating7.8 ; 3.6 to 3.9 A
Description:1/3HP..1140RPM.56.TEFC..
Dimensions12.48 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Drive End Flange TypeStandard
Duty CycleContinuous
Efficiency57.7, 57.7 %, 57.7%
EnclosureTEFC, Totally Enclosed .
Enclosure MaterialRolled Steel
Enclosure TypeTEFC (Totally Enclosed .
Estimated Weight34.00
Family SeriesLeeson Motors, General .
FL Amps7.8/3.9
FL Efficiency55
Frame56
Frame MaterialRolled Steel
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Hertz60
Horsepower1/3 hp, 0.33 HP
Horsepower Rating0.33 HP
HP1/3, 0.33
Hz60
Insulation ClassB, Class B
Insulation TypeClass B
Item ConditionFACTORY NEW
Item Number110009.00
KW0.25
ManufacturerLeeson Electric, LEESON.
Manufacturer Part Number110009.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:110009.00
Model NumberC6C11FB1
Motor Shell Length7.00"
Motor TypeCapacitor Start
MountingFoot Mount, Rigid Base
mountingRigid Base
Mounting TypeFoot Mount, Rigid, Rigi.
NEMA Frame56
Net Weight34 lbs
Nominal Voltage208 VAC, 240 VAC
Number of Poles6
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length12.31 ", 12.48"
Overload ProtectionNone
Part Number110009.00
Phase1, 1 Phase, 1 ph
Product SeriesGeneral Purpose
Product TypeGeneral Purpose, Capaci.
RotationSelective CCW, Reversib.
RPM1140 RPM, 1140, 1100 - .
Service Factor1, 1.0
Shaft Diameter0.625", 0.625, UL;CSA
Shaft Length1.88", 1.88
Shaft Size0.63 in Dia x 1.88 in L
Ship Weight31 lbs.
Special FeaturesService Factor - 1, Cap.
Speed (RPM)1140
StandardsUL Recognized
Supplier:LEESON ELECTRIC CORPORA.
Supply Voltage115/208-230 VAC
TypeCapacitor Start Inducti.
UPC Code691720007280
UPC:691720007280
Voltage110-120V, 208V, 230V, 1.
Volts115/208/230, 115/208-230

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomelectricmotorwholesale.com110009317.01In StockLEESON317.0 @ 1
AmazonTPB0773R5QKS419.861In Stock3Leeson Electric419.86 @ 1
thumbzoomMRO Supply2525390432.91In StockLeeson432.9 @ 1
thumbzoomcshincorporated.com110009.00446.661In StockLeeson31.0446.66 @ 1
thumbzoomemotorpro.com110009.00487.911In StockLeeson31.0487.91 @ 1
thumbzoomDealers Electric110009.00558.61In StockLeeson31.0558.6 @ 1
thumbzoomGlobal IndustrialWBB221853575.01In StockLeeson575.0 @ 1
thumbzoomZoroG2485914580.671In Stock26Leeson580.67 @ 1
us.rs-online.com72239274611.091In StockLeeson611.09 @ 1
thumbzoommotorsandcontrol.comLE-110009.00613.591In StockLeeson Electric34.0613.59 @ 1
thumbzoomGalco110009.00-LEES617.941In StockLeeson34.0617.94 @ 1
kscdirect.comLEE 110009.00641.241In StockLEESON ELECTRIC CORPORATION641.24 @ 1
thumbzoomWalker Industrial110009-00695.41In Stock10Leeson695.4 @ 1
thumbzoompumpproducts.com110009.00793.941In StockLeeson793.94 @ 1
