Leeson 119397.00

B078XP4H32

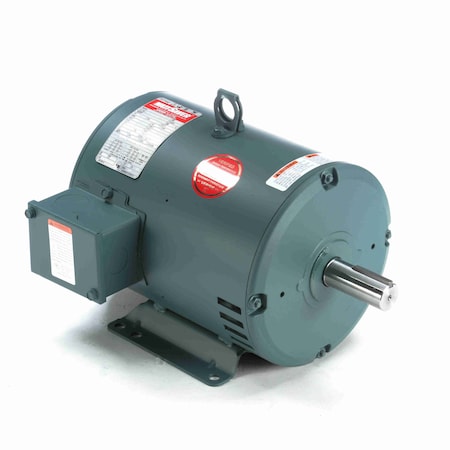

Leeson 3/4 HP 1800 RPM.56C.TENV.230/460.3PH.60HZ.CONT.40C.1.0 (119397.00)

Leeson 3/4 HP 1800 RPM.56C.TENV.230/460.3PH.60HZ.CONT.40C.1.0 (119397.00)zoom

Attributes

Key Value
Amperage Rating2.6/1.3 A
Amps2.6/1.3
Application TypeGeneral Purpose AC Moto.
Bearing TypeBall
BearingsBall
CategoryElectric Motor
CompositionSteel
Country of Origin (subj.Mexico
Description:..3/4 HP..1800 RPM.56C..
Dimensions12.44 in L
Drive End Bearing Size6203
Drive End Bearing TypeBall
Duty CycleContinuous
Efficiency82.5, 82.5%
Efficiency %82.5 %
EnclosureTotally Enclosed Non-Ve.
Enclosure MaterialRolled Steel
Enclosure TypeTENV (Totally Enclosed .
Family SeriesLeeson Motors
Frame56C
Frame MaterialRolled Steel
Frame RemarksFOOTLESS
Frequency60, 60 Hz
Frequency Rating60 Hz
Gross Weight0 lbs
Horsepower3/4 hp
HP3/4, 0.75
Hz60
Insulation ClassClass F, F
Item ConditionFACTORY NEW
Item Number119397.00
KW0.56
ManufacturerLEESON ELECTRIC CORPORA.
Manufacturer Part Number119397.00
MaterialRolled Steel
Maximum Ambient Tempera.40? C
MFG Part #:119397.00
Motor Shell Length8.66"
MountingRound
mountingC-face (NO base)
Mounting TypeC-Face, Round
NEMA Frame56C
Net Weight0 lbs
Nominal Voltage240 VAC, 480 VAC
Number of Poles4
Number of Speeds1
Opp. Drive End Bearing .6203
Opp. Drive End Bearing .Ball
Overall Length12.44"
Phase3, 3 ph
Product TypeThree Phase
RotationReversible
RPM1725, 1800, 1,725 RPM
Service Factor1, 1.0
Shaft Diameter0.625", 0.625
Shaft Length2.06, 2.06"
Shaft Size0.625 in Dia x 2.06 in L
Ship Weight35 lbs.
Speed1725 rpm
Supplier:LEESON ELECTRIC CORPORA.
UPC:691720993828
Voltage230/460
Voltage (AC)230 VAC, 460 VAC
Volts230/460

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomMRO Supply5768059117.861In StockLeeson117.86 @ 1
thumbzoomemotorpro.com119397.00123.161In StockLeeson35.0123.16 @ 1
kscdirect.comLEE 119397.00139.391In StockLEESON ELECTRIC CORPORATION139.39 @ 1
thumbzoomGalco119397.00-LEES146.881In StockLeeson146.88 @ 1
thumbzoomDealers Electric119397.00489.841In StockLeeson35.0489.84 @ 1
AmazonTPB078XP4H32652.611In Stock10Leeson652.61 @ 1
thumbzoomZoroG2494420760.971In Stock10Leeson760.97 @ 1
