Lovejoy 68514476183

B00Y2PI24A

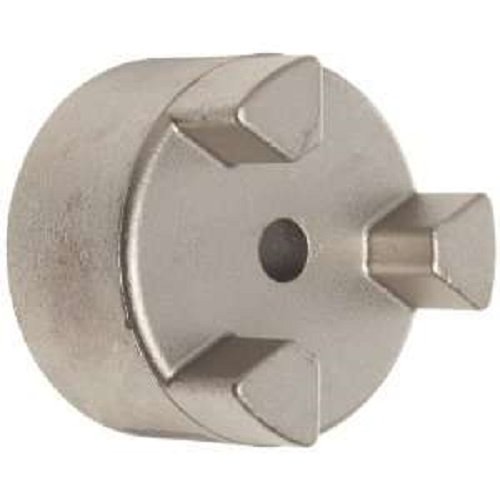

Lovejoy 68514476183 Steel 28/38B Hub, Curved Jaw, 1/2" Bore, 1/8" Keyway, 1.38" Length Through Bore, 2.56" OD

Lovejoy 68514476183 Steel 28/38B Hub, Curved Jaw, 1/2" Bore, 1/8" Keyway, 1.38" Length Through Bore, 2.56" ODzoom

Attributes

Key Value
Angular Displacement0.050 in
Bore Size1/2 in
Coupling Size28
Coupling TypeJaw
Cubic inches9.04397 in3
Dimension G0.790 in (20.07 mm)
Dimension HD2.560 in (65.02 mm)
Distance between Spider.0.100 in (2.54 mm)
Hub MaterialSteel
Hub StyleB
Keyway Size1/8 x 1/16 in
Length thru Bore (Dimen.1.380 in (35.05 mm)
Max Torque (with 92 Sho.1680.00 in-lb
Max. Angular Displaceme.0.90 ?
Max. Axial Displacement.0.0600 in
Max. Bore (Dimensions I.1.5 in (38 mm)
Max. Radial Displacemen.0.0100 in
Max. Speed8500.00 rpm
Max. Temperature Range .-50 to 248 ?F
Min. Bore (Dimensions I.0.870 in (22.00 mm)
Nominal Torque (with 92.840.00 in-lb
Normal Temperature Rang.-40 to 212 ?F
Outside Diameter2.560 in (65.02 mm)
Overall Coupling Length3.540 in (89.92 mm)
Set Screw Style Couplin.0.590 in (14.99 mm)
Set Screw Style Couplin.5/16-18
Spider Inside Diameter1.180 in (29.00 mm)
Spider Outside Diameter2.560 in (65.00 mm)
Spider Thickness (Dimen.0.590 in (15.00 mm)
StyleBored
TypeCurved Jaw Coupling Hubs
Weight2.27 lb

All Prices

Img Seller Supplier SKU Min Price MOQ In Stock Lead Time Brand Weight Preferred Tier
thumbzoomusmegastore.com68514476183729.01In StockLovejoy2.27729.0 @ 1
thumbzoomheavydutydepot.com68514476183729.01In StockLovejoy729.0 @ 1
